Ultra Slim 1500mm

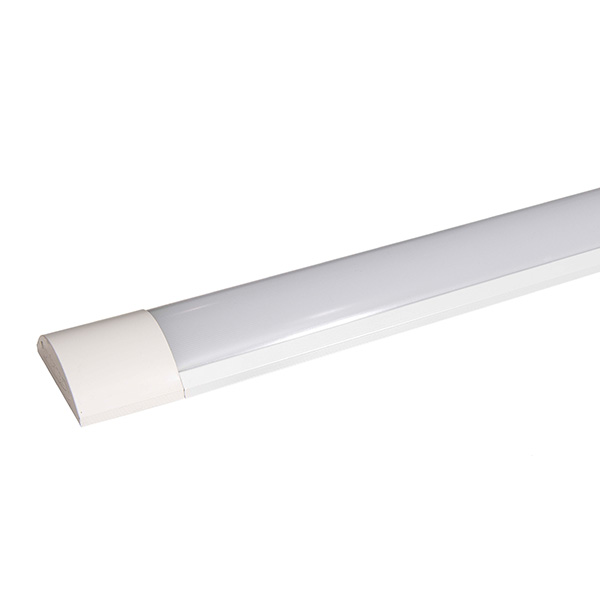

45W Ultra Slim LED Batten - 4000K, Single 1530mm (5ft)

Code
10271
Technical Specification
Volts (V)
220-240
Watts (W)
45
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
5300
The Ultra Slim LED Integrated Batten is a cost-effective shatterproof luminaire ideal for domestic applications. The Ultra Slim streamlined design gives the ability to seamlessly illuminate small spaces without the need for a large luminaire
Download Specification
Full Specification
Downloads
Name
45W Ultra Slim LED Batten - 4000K, Single 1530mm (5ft)
Volts (V)
220-240
Watts (W)
45
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
5300
Life Hours
35,000
Beam Angle
118°
CRI (Ra)
>80
Guarantee
3 Years
Switching Cycles
25,000
Frequency (Hz)
50/60
LED Drive Current
400
Energy Consumption (kWh/1000h)
45
IP Rating
IP20
Commodity Code
94054099
EAN
5013588102719
Country Of Origin
CN
UNSPSC Code
39111544
Individual Volume
0.00039
Outer Box Qty
12
Outer Box CMB
0.06494
Height (mm)
26
Width (mm)
75
Length (mm)
1,530
Outer Box Height (mm)
18.5
Outer Box Width (mm)
22.5
Outer Box Depth (mm)
156
Candelas (cd)
1,650
Equivalent Watts (W)
90
Single Carton Height (mm)
3.2
Single Carton Width (mm)
8
Single Carton Depth (mm)
15.4
Catalogue Page

Instructions
