Rotherham College

£5,376
Saved
1,565kg
CO2 Saved
2,796kWh
Energy Saving
34%
Cost Reduction
Thomas Rotherham College was formed as a Sixth Form College in 1967 but its origins date back to 1483 when what became Rotherham Grammar School for boys was founded by Thomas Rotherham, a local scholar who had risen to be Archbishop of York, Chancellor of England and Chancellor of Cambridge University.

Mark Lewis, Electrical Engineer at Lilleker Bros Ltd said:

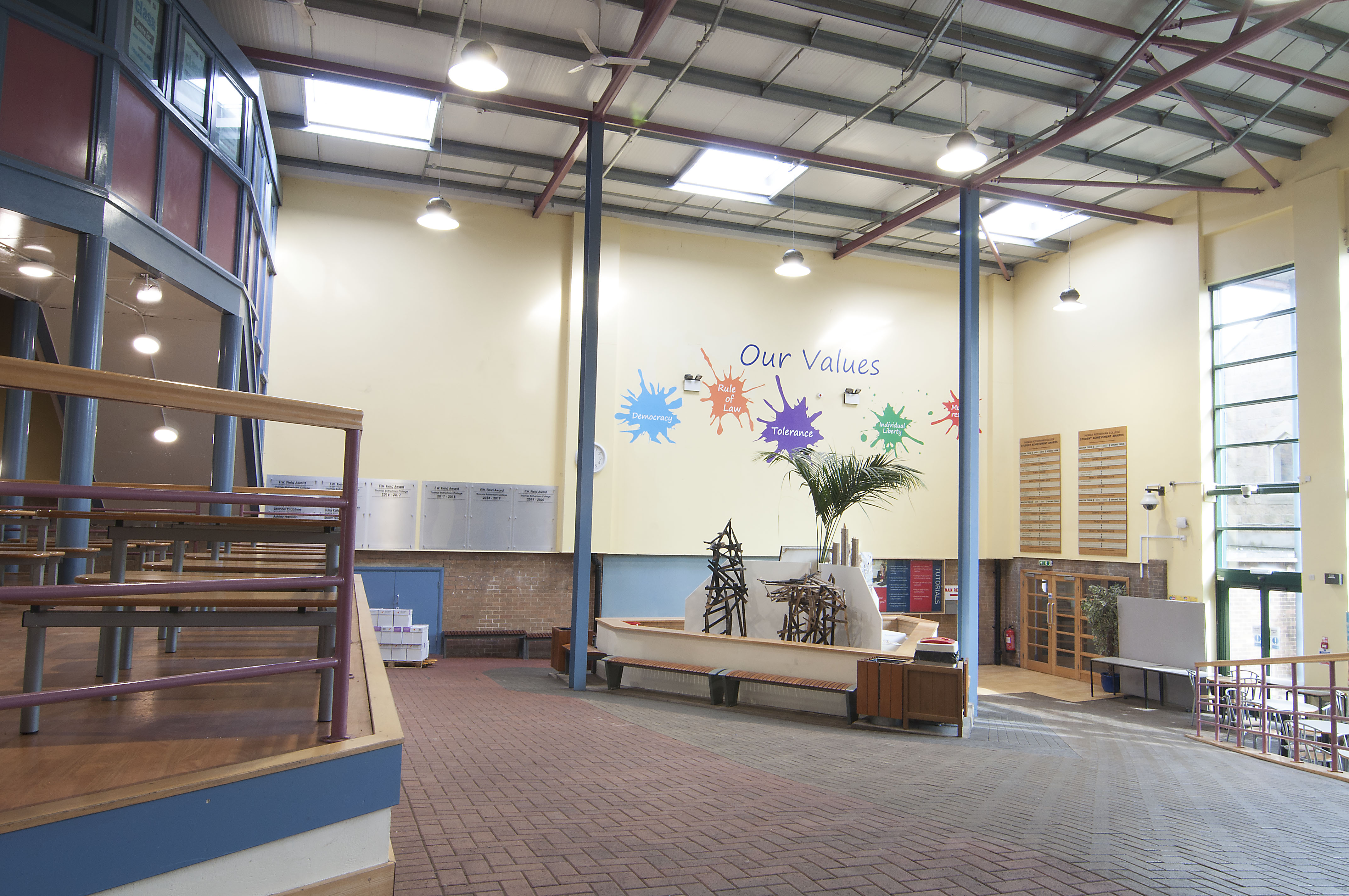

“I was asked by the head of the Facilities Management team at Thomas Rotherham College to see what could be done in the canteen/break out area. Their lighting at the time was 34 x 70W HQI (2,380W) these were replaced with 9 x 180W LED Lowbay fittings (1,620W). The quality of the light was poor due to low light levels, it was also expensive to run with the added disadvantage of frequent lamp/ballast failures.

I contacted Bell who offered an LED Solution including; Lowbays, Aqua & Deco fittings which reduced the quantity of fittings, minimised the running costs, improved the light level and atmosphere. The Head of FM said he was Over the moon with the result.”



Illumina Slim High/Low Bay Units

0-10V Dimmable as standard
All version of Illumina Slim are dimmable on 0-10V dimming systems.
High Quality Components
The highest quality components including Seoul Semiconductors LEDs and Sosen driver ensures long lasting performance.
Performance Guaranteed
Rated for 50,000 hours life, the Illumina Slim range boasts a 5 year quality quarantee.
Sensor Version
All models of Illumina Slim are avaiable in sensor version with built in daylight sensor and optional remote control for remote setting.

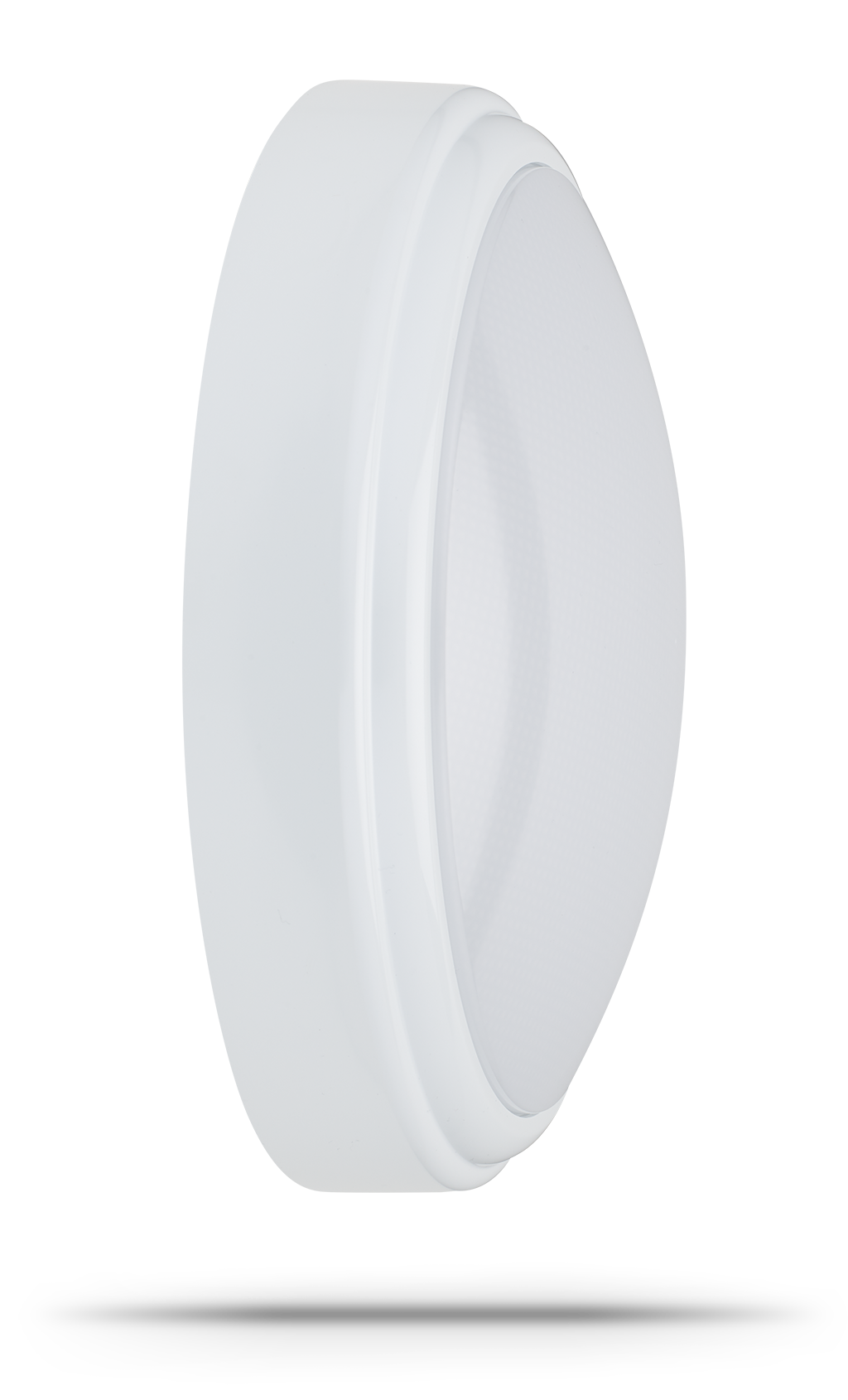

Aqua 2 LED Bulkheads

Quality Construction
High quality polycarbonate body and high-transmission frosted diffuser come together to create an IP65 sealed fitting.
Performance Guaranteed
with a 35,000 hour rated life, the Aqua 2 bulkhead comes with a complementary 5 year guarantee
Sensor Options
Aqua 2 bulkheads are also available with a microwave sensor, both as on/off and corridor dimming functions.
Emergency Options
All versions, Standard and Microwave, are available as emergency versions.



Deco Slim Interior Bulkheads

Flexible Solution
Available as a CCT version with white, chrome. satin, copper and antique brass trims available
Quality Guaranteed
With BELL branded driver and Samsung LED chips, the Deco Slim bulkheads are rated for 35000 hours and come with a 5 Year Quality Guarantee.
Sensor Options
Non CCT versions are available with microwave sensors for on/off and dimming control.
Emergency Options
Emergency versions of the standard and CCT bulkheads are available. Not available for sensor versions.
