New
Apex Mentor

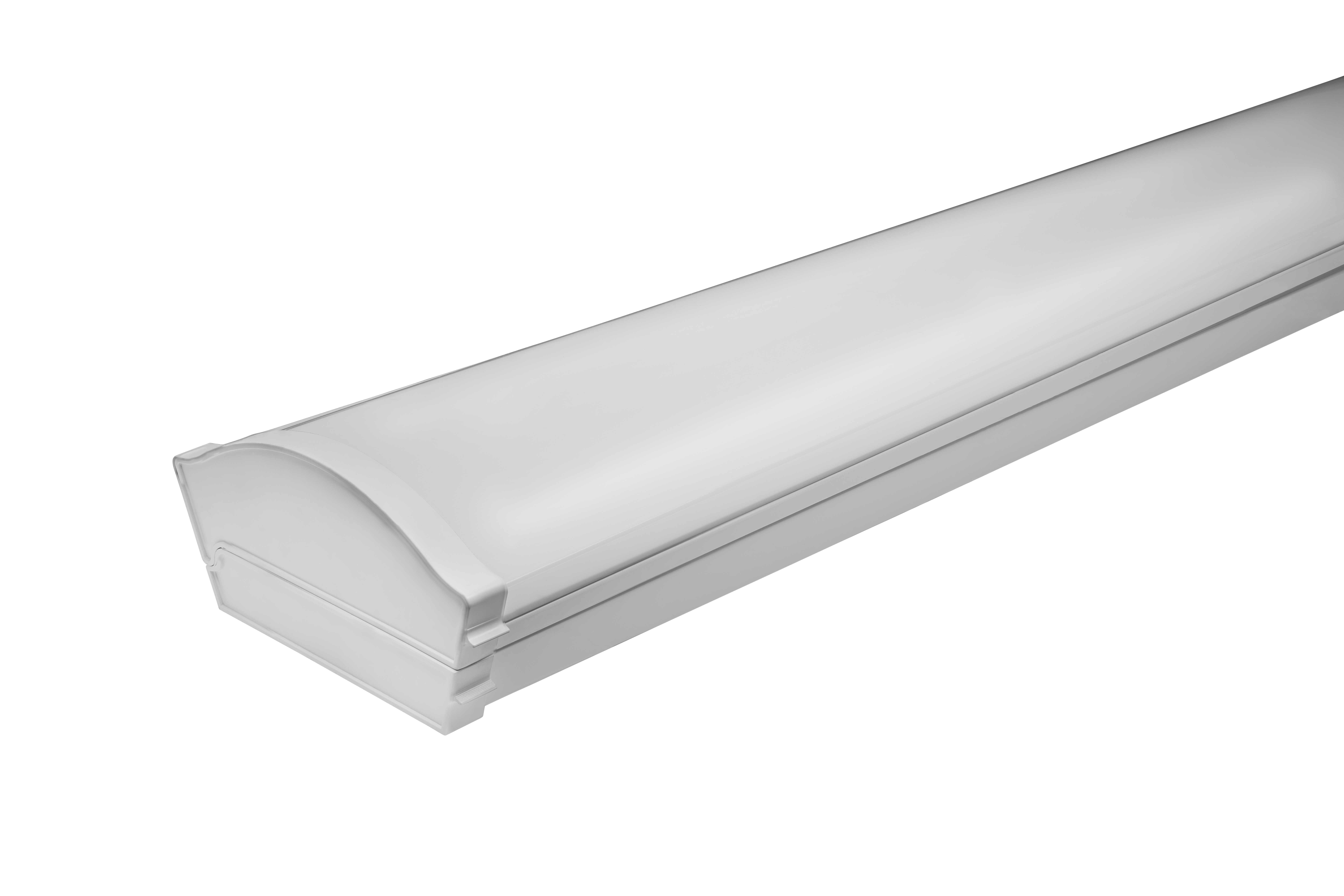

Apex Mentor 15/20/24/30W Wattage & CCT Switchable 5ft LED Batten - 3000/4000/6000K
Code:
70445
The Apex CCT LED Batten range is a versatile lighting solution designed to simplify specification, installation, and maintenance. Featuring selectable colour temperatures, Apex provides the flexibility to adapt to a wide range of commercial and industrial environments. A universal accessory system across the range reduces stock requirements, simplifying ordering, and enabling faster installations.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Country Of Origin | CN |
| Commodity Code | 9405423100 |
| EAN | 5063695042385 |
| UNSPSC Code | 39111541 |
| Product Category | LED Luminaires - Plastic |
| Product Application | LED Batten |
| Warranty | 8 Years (2 Years On Site) |
| Life Hours | 70000 |
| Volts (V) | 220/240 |
| Frequency (Hz) | 50/60 |
| Wattage (W) | 15/20/24/30 |
| Lumen output (lm) | 15W = 2084 (3000K) / 2156 (4000K) / 2177 (6000K) - 20W = 2761 (3000K) / 2885 (4000K) / 2892 (6000K) - 24W = 3261 (3000K) / 3425 (4000K) / 3412 (6000K) - 30W = 3866 (3000K) / 4241 (4000K) / 4047 (6000K) |
| Colour Temperature (K) | 3000/4000/6000 |
| Candelas | 1720 |
| CRI (Ra) | 80 |
| IK Rating | IK08 |
| IP Rating | IP44 |
| Operating Temperature | -20°C - +35°C |
| Energy Consumption (kWh/1000h) | 30 |
| LED Drive Current | 270mA |
| Lumens per Watt (lm/W) | 129-145 |
| Beam Angle | 120° |
| Switching Cycles | 25000 |
| Lumen Maintenance Ratio | L80 B10 |
| Height (mm) | 87 |
| Length (mm) | 1510 |
| UNSPSC Code | 39111541 |
| Individual Product Weight (kg) | 3 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 3.4 |
| Single box Height (mm) | 90 |
| Single box Width (mm) | 184 |
| Single Box Depth (mm) | 1518 |
| Single Box Volume | 0.02513808 |
| Outer Box Qty | 2 |
| Outer Box Weight (kg) | 8 |
| Outer Box Height (mm) | 207 |
| Outer Box Width (mm) | 200 |
| Outer Box Depth (mm) | 1540 |
| Outer Box Volume | 0.063756 |
| Depth (mm) | 180 |
