Spectrum High Powered Bulkhead

Spectrum Dali 7W LED High Powered Self-Test On/Off Switch Emergency Bulkhead

Code
09153
Technical Specification
Volts (V)
220/240
Watts (W)
7
Colour Temp (K)
6500
Lumens (lm)
1094
The Spectrum Pro LED High Power Emergency Bulkhead is designed specifically for areas that require a substantial light output. this high-powered emergency bulkhead is suitable for all commercial and industrial installations.
Download Specification
Full Specification
Name
Spectrum Dali 7W LED High Powered Self-Test On/Off Switch Emergency Bulkhead
Commodity Code
8513100000
EAN
5013588003320
Country Of Origin
CN
Volts (V)
220/240
Watts (W)
7
Colour Temp (K)
6500
Lumens (lm)
1094
Candelas (cd)
340
Equivalent Watts (W)
12
Life Hours
50000
Beam Angle
140°
CRI (Ra)
80
Guarantee
5 Years
Switching Cycles
15000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
7
IP Rating
IP65
Height (mm)
168
Width (mm)
338
Depth (mm)
76
LED Drive Current
45mA
Impact Protection
IK7
Lumens per Watt (lm/W)
156
Electric Class
1
Product Category
Emergency Lighting / Luminaire with Battery
Product Application
Emergency Lighting
Operating Temperature
0°C - +35°C
Outer Carton Barcode
0915300000005
Individual Product Weight (kg)
1.22
Single Carton Weight (KG)
1.4
Single Carton Height (mm)
177
Single Carton Width (mm)
84
Single Carton Depth (mm)
347
Individual Volume
0.005159196
Outer Box Weight (kg)
8
Outer Box Height (mm)
445
Outer Box Width (mm)
365
Outer Box Depth (mm)
195
Outer Box Qty
5
Outer Box Volume
0.031672875

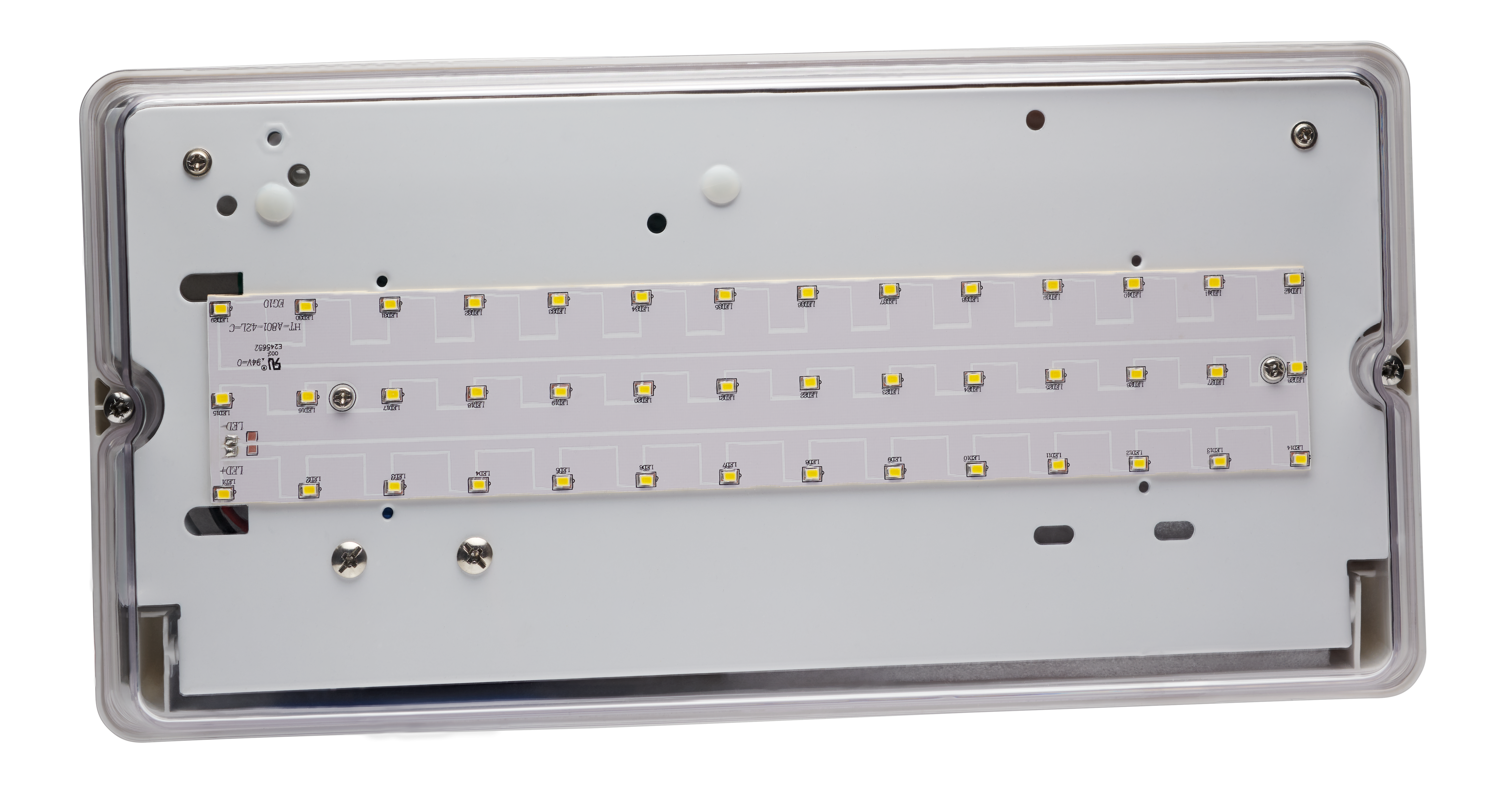

Product Image
