Casambi PIR Sensors

Casambi High Bay PIR for Racking Aisle

Code
15172
Technical Specification
Volts (V)
100-240
Casambi is based on Bluetooth Low Energy and can be integrated into LED drivers, modules, and fixtures, creating an optimal solution for both functionality and installation. Casambi offers a flexible, scalable, and user-friendly wireless lighting control system.
Download Specification
Full Specification
Name
Casambi High Bay PIR for Racking Aisle
Product Category
LED Driver, Sensors and Resistors
Product Application
PIR Sensor
Commodity Code
8504318050
Country Of Origin
CN
EAN
5063695003706
Height (mm)
58
Width (mm)
91
Depth (mm)
91
Single Carton Height (mm)
95
Single Carton Width (mm)
94
Single Carton Depth (mm)
74
Individual Volume
0.00066082
Volts (V)
100-240
Frequency (Hz)
50/60
IP Rating
IP20
Electric Class
2
Sensor Detection Range
Detection diameter up to 20m
Primary Material
Polycarbonate
Operating Temperature
-20°C - +40°C
Mounting Height
17m for optimum coverage
Individual Product Weight (kg)
0.098

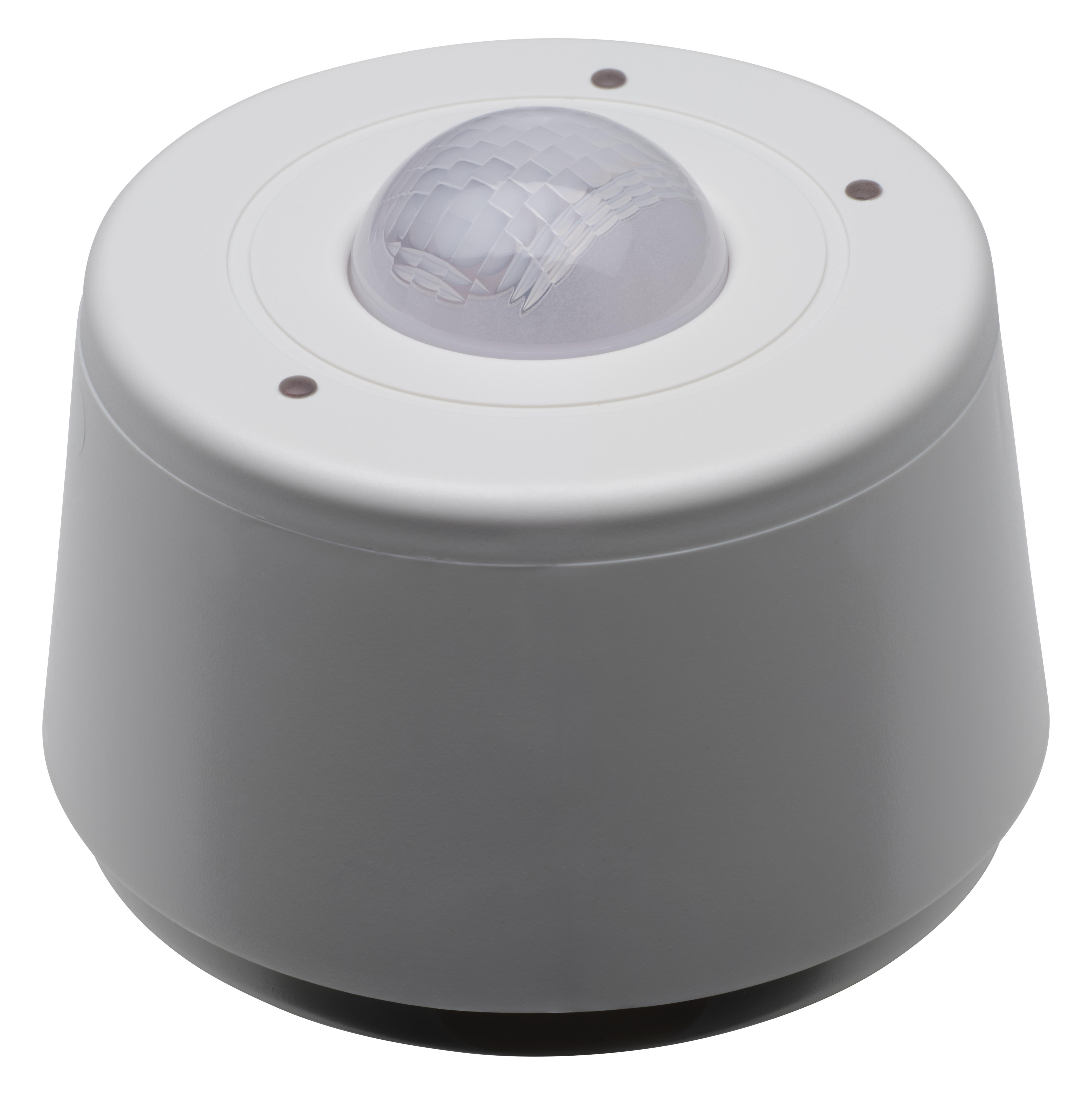

Product Image
