Arial Converter Casasmbi

Arial 22W LED CCT Converter - Casambi TW and Dimming Enabled - 120mm-260mm

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
82225
Technical Specification
Volts (V)
220/240
The Arial LED Converter is an unrivalled product when it comes to versatility in the LED market.
Download Specification
Full Specification
Name
Arial 22W LED CCT Converter - Casambi TW and Dimming Enabled - 120mm-260mm
EAN
5063695002969
Volts (V)
220/240
Life Hours
50000
Beam Angle
120°
Lumens per Watt (lm/W)
136-154
CRI (Ra)
85
Guarantee
5 Years
Switching Cycles
100000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
22
IP Rating
IP40
Electric Class
Class II
Commodity Code
9405423100
Height (mm)
300
Diameter (mm)
300
Individual Product Weight (kg)
0.735
Width (mm)
300
Depth (mm)
20
Wattage (W)
22
Colour Temperature (K)
3000/4000/6000
Minimum Order Quantity
1
Single Box Weight (kg)
0.955
Single box Height (mm)
42
Single box Width (mm)
345
Single Box Depth (mm)
315
Single Box Volume
0.00456435
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
3001 / 3396 / 3258
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes

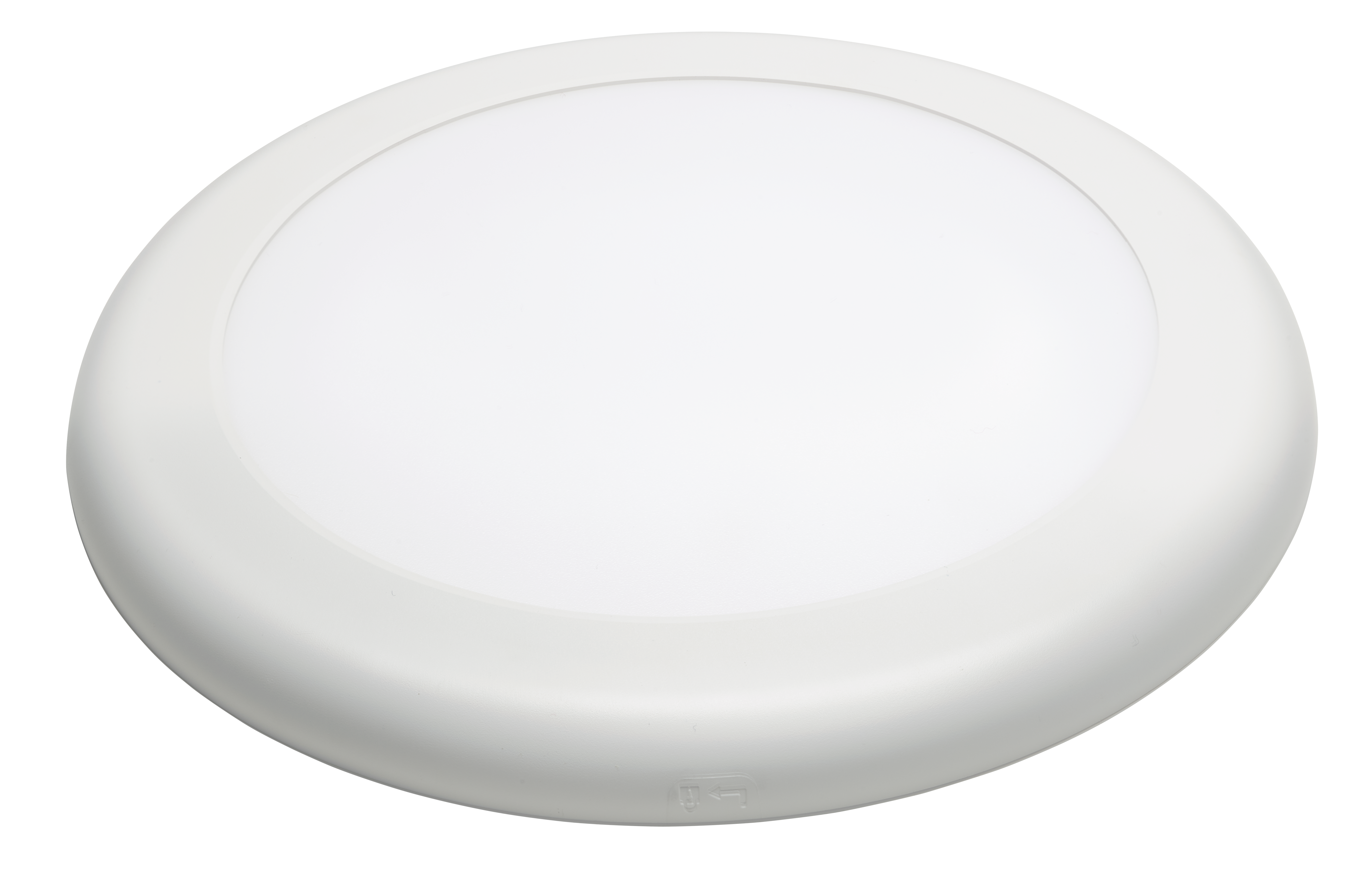

Product Image
