Arial Converter Standard

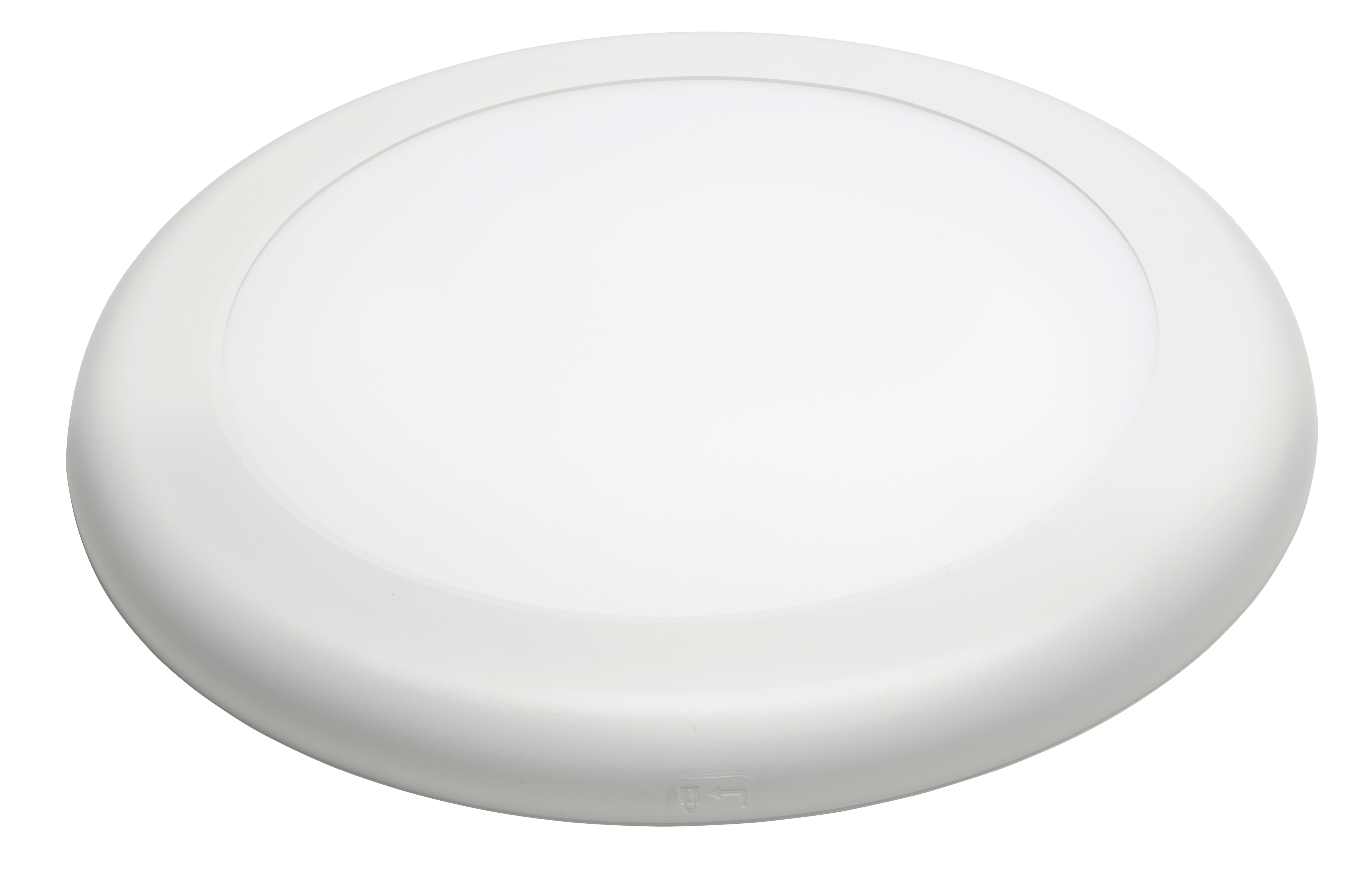

Arial 10/13/16W LED CCT Converter with Sensor - 65-205mm

Code
06836
Technical Specification
Volts (V)
220/240
Watts (W)
10/13/16
Colour Temp (K)
3000/4000/6000
Lumens (lm)
10W = 1364 / 1507 / 1492 - 13W = 1683 / 1905 / 1872 - 16W = 1895 / 2166 / 2113
The Arial LED Converter is an unrivalled product when it comes to versatility in the LED market.
Download Specification
Full Specification
Downloads
Name
Arial 10/13/16W LED CCT Converter with Sensor - 65-205mm
Volts (V)
220/240
Watts (W)
10/13/16
Colour Temp (K)
3000/4000/6000
Lumens (lm)
10W = 1364 / 1507 / 1492 - 13W = 1683 / 1905 / 1872 - 16W = 1895 / 2166 / 2113
Life Hours
50000
Beam Angle
120°
CRI (Ra)
85
Guarantee
5 Years
Switching Cycles
100000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
16
IP Rating
IP40
Downlight Cut Out (mm)
65-205
Electric Class
2
Height (mm)
20
Diameter (mm)
235
Commodity Code
9405423100
EAN
5013588608367
Country Of Origin
CN
UNSPSC Code
39111515
Individual Product Weight (kg)
0.62
Single Carton Weight (KG)
0.65
Single Carton Height (mm)
30
Single Carton Width (mm)
245
Single Carton Depth (mm)
275
Individual Volume
0.00202125
Outer Box Weight (kg)
13.5
Outer Box Height (mm)
505
Outer Box Width (mm)
290
Outer Box Depth (mm)
325
Outer Box Qty
20
Outer Box Volume
0.0476
Lumens per Watt (lm/W)
118-151
Product Category
LED Luminaires - Plastic
Product Application
Multiple Internal Applications
Outer Carton Barcode
0683600000020
