Arial Pro IP44 - Casambi

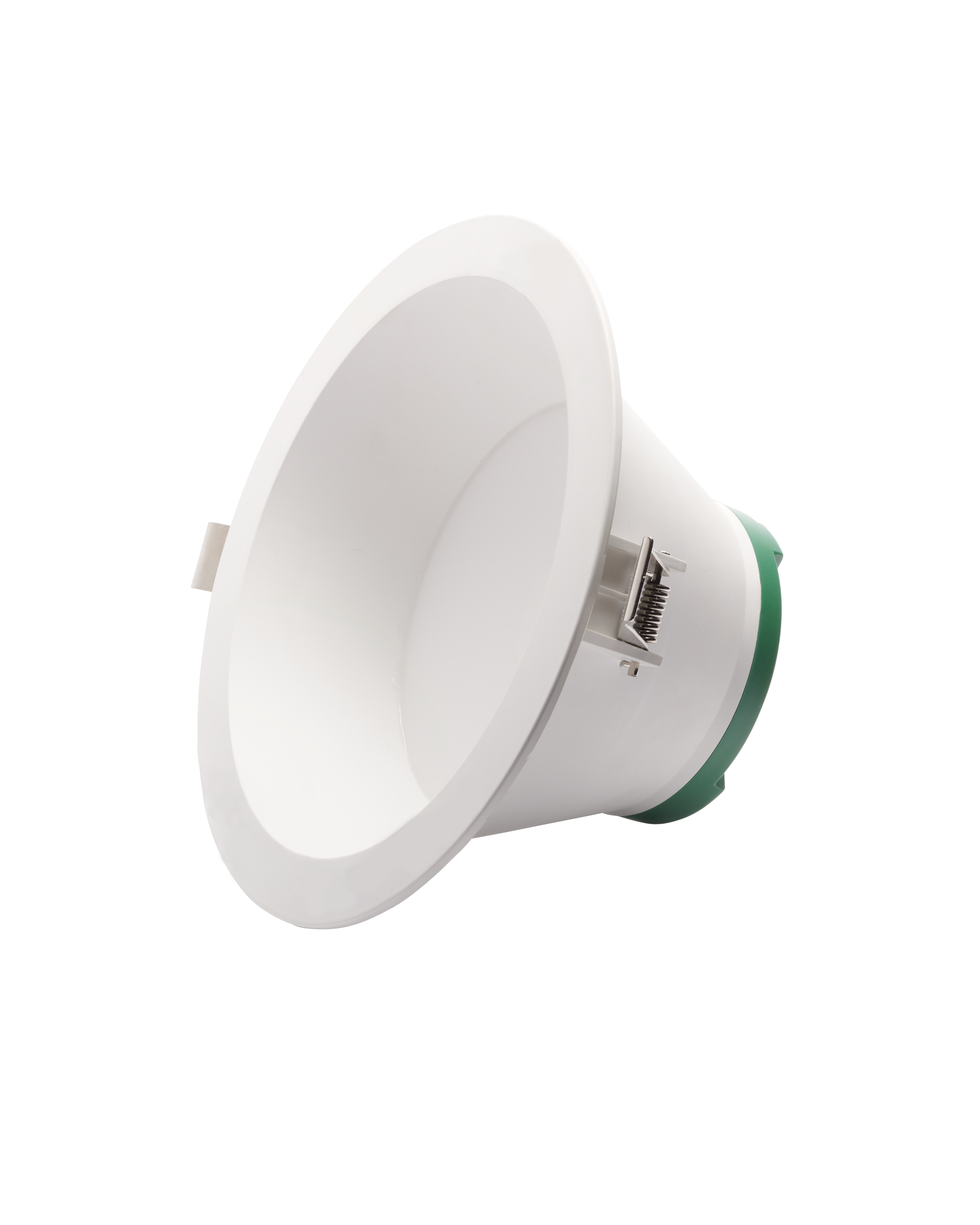

Arial Pro 20W IP44 LED CCT Downlight - Casambi Dimming Enabled

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
82142
Technical Specification
Volts (V)
220/240
Watts (W)
20
Colour Temp (K)
3000/4000/6000
Lumens (lm)
2612 (3000K) / 2885 (4000K) / 2585 (6000K)
The Arial Pro LED Downlight is a sleek looking luminaire designed to replace cumbersome CFL fittings.
Download Specification
Full Specification
Name
Arial Pro 20W IP44 LED CCT Downlight - Casambi Dimming Enabled
EAN
5063695001764
Country Of Origin
CN
Volts (V)
220/240
Watts (W)
20
Colour Temp (K)
3000/4000/6000
Lumens (lm)
2612 (3000K) / 2885 (4000K) / 2585 (6000K)
Life Hours
50000
Beam Angle
90°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
500mA
Energy Consumption (kWh/1000h)
20
IP Rating
IP44
Downlight Cut Out (mm)
200-210
Height (mm)
117
Diameter (mm)
240
Lumens per Watt (lm/W)
129-144
Product Category
LED Luminaires - Plastic
Product Application
LED Downlight
Commodity Code
9405423100
UNSPSC Code
39111515
Individual Product Weight (kg)
0.56
Single Carton Weight (KG)
0.75
Single Carton Height (mm)
143
Single Carton Width (mm)
250
Single Carton Depth (mm)
250
Individual Volume
0.00894
Outer Box Weight (kg)
10.5
Outer Box Height (mm)
475
Outer Box Width (mm)
515
Outer Box Depth (mm)
515
Outer Box Qty
12
Outer Box Volume
0.12598
Product Image
