Alto LED Street Lights - 4000K

Alto 75W LED IP66 Street Light with Nema Socket - Wide Angle Beam (WAB) - 4000K

Code
11702
Next Delivery
29/12/2025 - 100 items
Technical Specification
Volts (V)
220/240

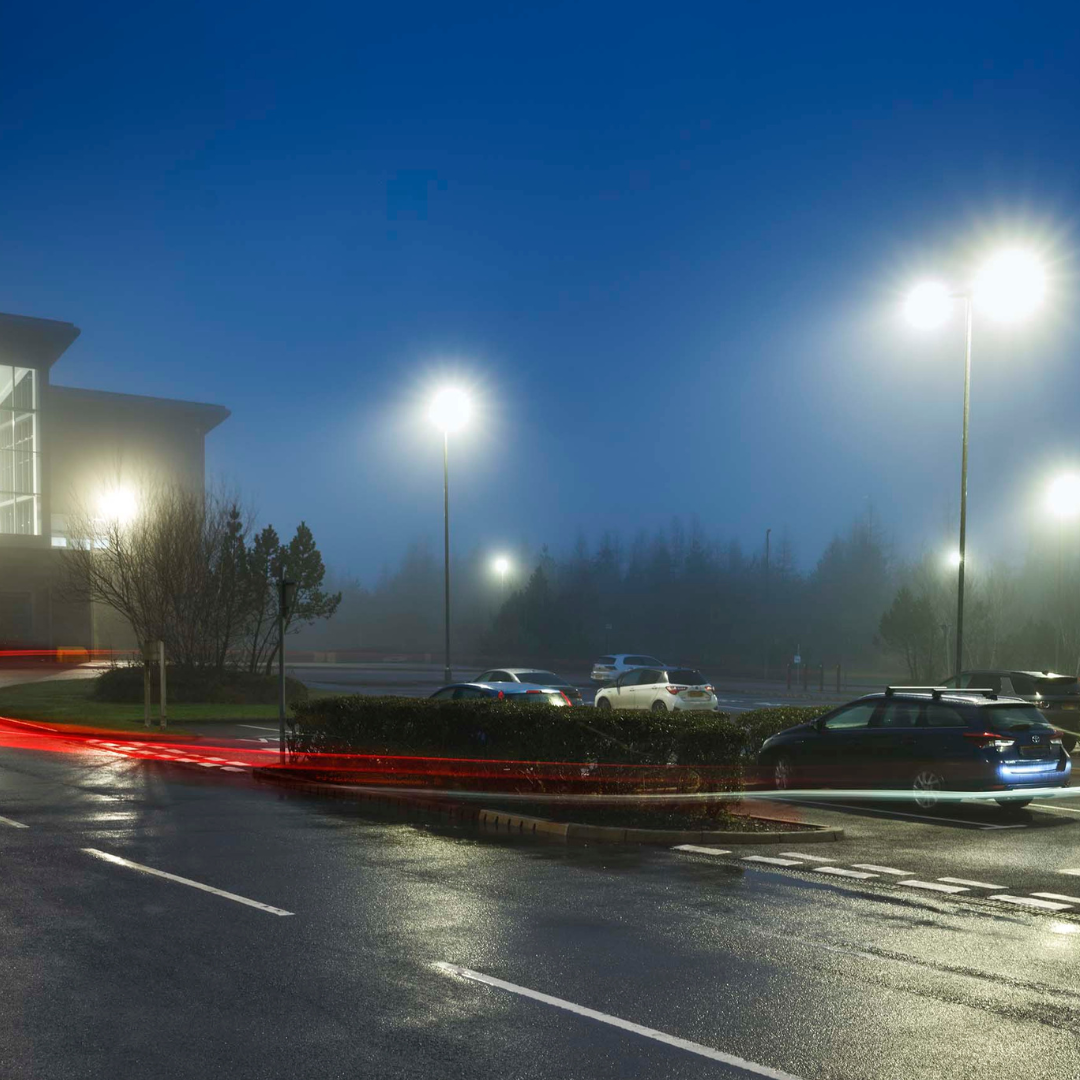

The Alto LED Street Light offers flexibility, it is suitable for use in many locations, including rural towns, car parks and access roads. The Alto is available in a variety of wattages for a variety of applications, and is a robust weatherproof construction meeting an IP66 protection rating.
Download Specification
Full Specification
Downloads
Name
Alto 75W LED IP66 Street Light with Nema Socket - Wide Angle Beam (WAB) - 4000K
Volts (V)
220/240
Life Hours
50000
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
80000
Frequency (Hz)
50/60
LED Drive Current
107mA
Energy Consumption (kWh/1000h)
75
IP Rating
IP66
Height (mm)
135
Width (mm)
174
Length (mm)
629
EAN
5013588117027
Individual Product Weight (kg)
2.4
Commodity Code
9405423990
Lumens per Watt (lm/W)
161
Surge Protection
10kV
Operating Temperature
-30°C - +35°C
Wattage (W)
75
Colour Temperature (K)
4000
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
3.3
Single box Height (mm)
135
Single box Width (mm)
185
Single Box Depth (mm)
510
Single Box Volume
0.01274
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Street Lights
EDATA Product Range
Alto
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
12038
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
