Skyline Mini PIR

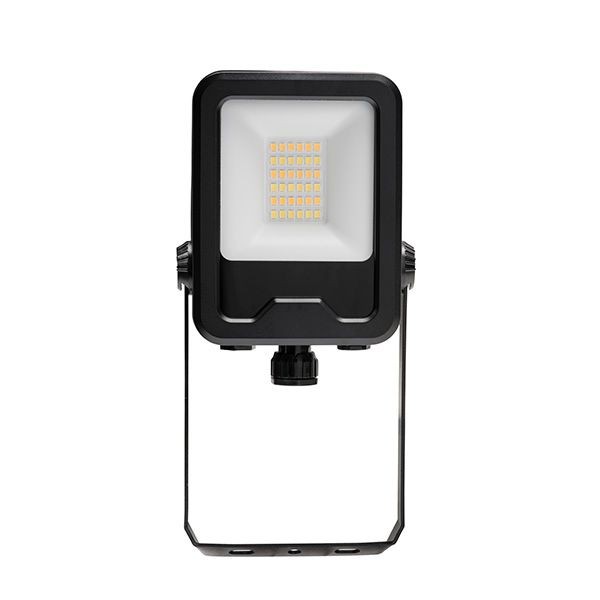

Skyline Mini 20W LED Floodlight with PIR - 4000K

Code
10783
Technical Specification
Volts (V)
220/240
Watts (W)
20
Colour Temp (K)
4000
Lumens (lm)
2200
Energy Rating
F
The Skyline Mini LED Floodlight offers a super slim compact design ideal for domestic and commercial premises. Available in a variety of wattages with the option to include a PIR.
Download Specification
Full Specification
Downloads
Name
Skyline Mini 20W LED Floodlight with PIR - 4000K
Volts (V)
220/240
Watts (W)
20
Colour Temp (K)
4000
Lumens (lm)
2200
Life Hours
25000
Beam Angle
100°
Energy Rating
F
CRI (Ra)
80
Guarantee
3 Years
Switching Cycles
10000
Frequency (Hz)
50/60
LED Drive Current
0.074mA
Energy Consumption (kWh/1000h)
20
IP Rating
IP65
Height (mm)
137
Width (mm)
112
Depth (mm)
54
Impact Protection
IK8
Commodity Code
9405423990
Country Of Origin
CN
Outer Box Qty
24
Individual Product Weight (kg)
0.310
Single Carton Height (mm)
118
Single Carton Width (mm)
143
Single Carton Depth (mm)
64
Individual Volume
0.000829
Outer Box Weight (kg)
0.745
Outer Box Height (mm)
496
Outer Box Width (mm)
414
Outer Box Depth (mm)
172
Outer Box Volume
0.035319
EAN
5013588107837
Single Carton Weight (KG)
0.26135
UNSPSC Code
39111626
Equivalent Watts (W)
160
Lumens per Watt (lm/W)
110
Flex
1m
Catalogue Page

Instructions

Photometric Data

Product Image
