Skyline Omni Wattage Switchable - Photocell Switch

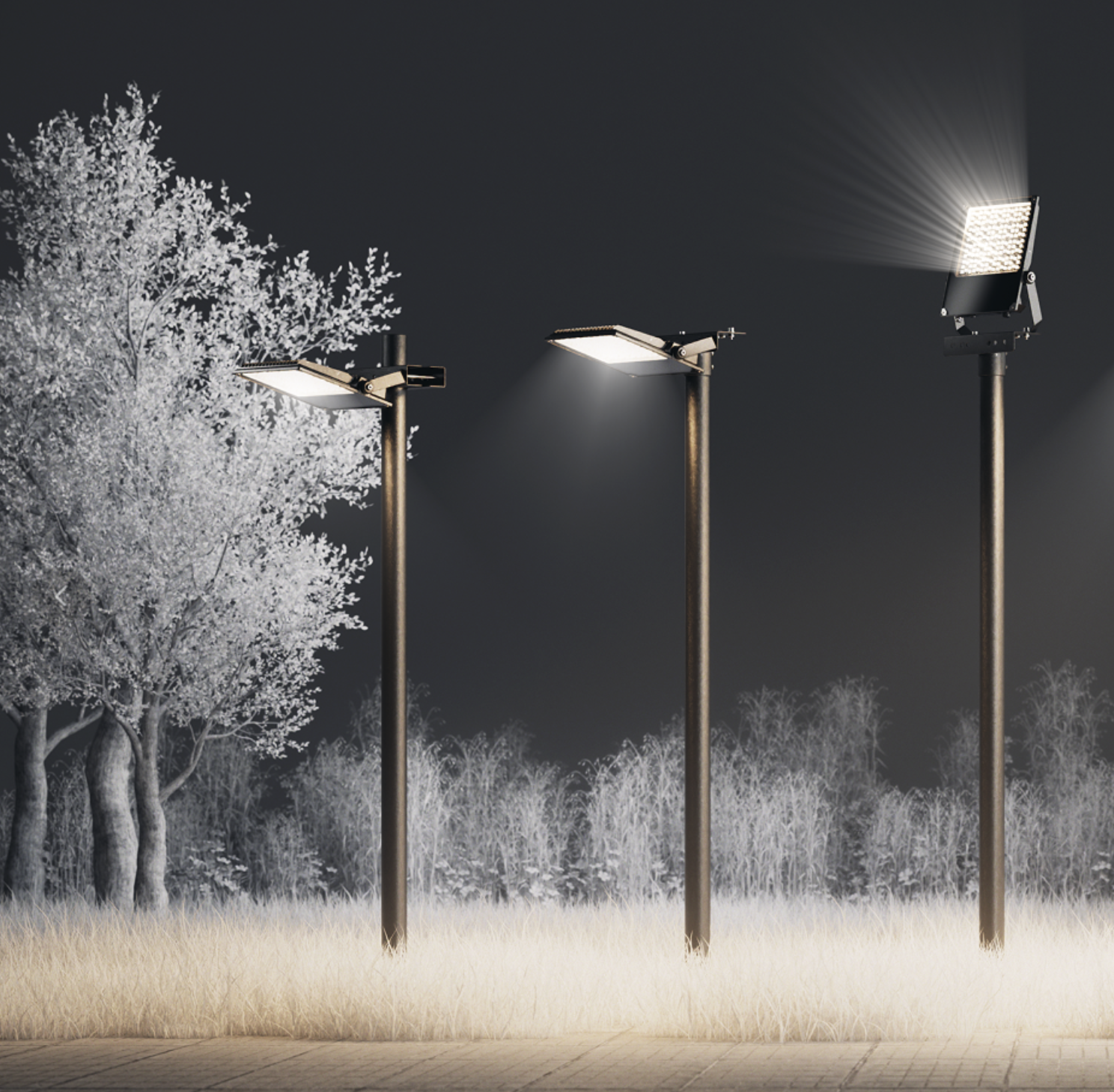

Skyline Omni 100/150/200W Wattage Switchable LED Floodlight with Photocell Switch - Asymmetric - 3CCT

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
72053
Technical Specification
Volts (V)
220/240
The Skyline Omni is a CCT Floodlight with Wattage Switchability in higher wattage models, featuring a compact design, adjustable bracket and tempered glass cover.
Download Specification
Full Specification
Downloads
Name
Skyline Omni 100/150/200W Wattage Switchable LED Floodlight with Photocell Switch - Asymmetric - 3CCT
Commodity Code
9405423990
EAN
5063695005564
Volts (V)
220/240
Energy Consumption (kWh/1000h)
200
Lumens per Watt (lm/W)
147 at 4000K
CRI (Ra)
80
Life Hours
50000
Guarantee
7 Years
Frequency (Hz)
50/60
Switching Cycles
25000
LED Drive Current
980mA at 230V
IP Rating
IP65
Depth (mm)
69
Height (mm)
482
Width (mm)
373
Windage
0.133m²
Flex
1.5m
Electric Class
Class I
Power Factor
0.9
Operating Temperature
-40℃ - +45℃
Individual Product Weight (kg)
5.225
Outer Box Qty
2
Outer Box Weight (kg)
11.55
Outer Box Height (mm)
407
Outer Box Width (mm)
167
Outer Box Depth (mm)
542
Outer Box Volume
0.036839198
Wattage (W)
100/150/200
Colour Temperature (K)
3000/4000/5000
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
5.495
Single box Height (mm)
389
Single box Width (mm)
73
Single Box Depth (mm)
482
Single Box Volume
0.013687354
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
UOM For Battery Weight
KG
Lumen output (lm)
100W = 14700 at 4000K / 150W = 22050 at 4000K / 200W = 29400 at 4000K
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Corrosion Rating
300 hour salt spray - C3 Corrosion Rating
