Skyline Omni Wattage Switchable

Skyline Omni 100/150/200W Wattage Switchable LED Floodlight - Symmetric - 3CCT

Code
72037
Next Delivery
12/02/2026 - 200 items
Technical Specification
Volts (V)
220/240

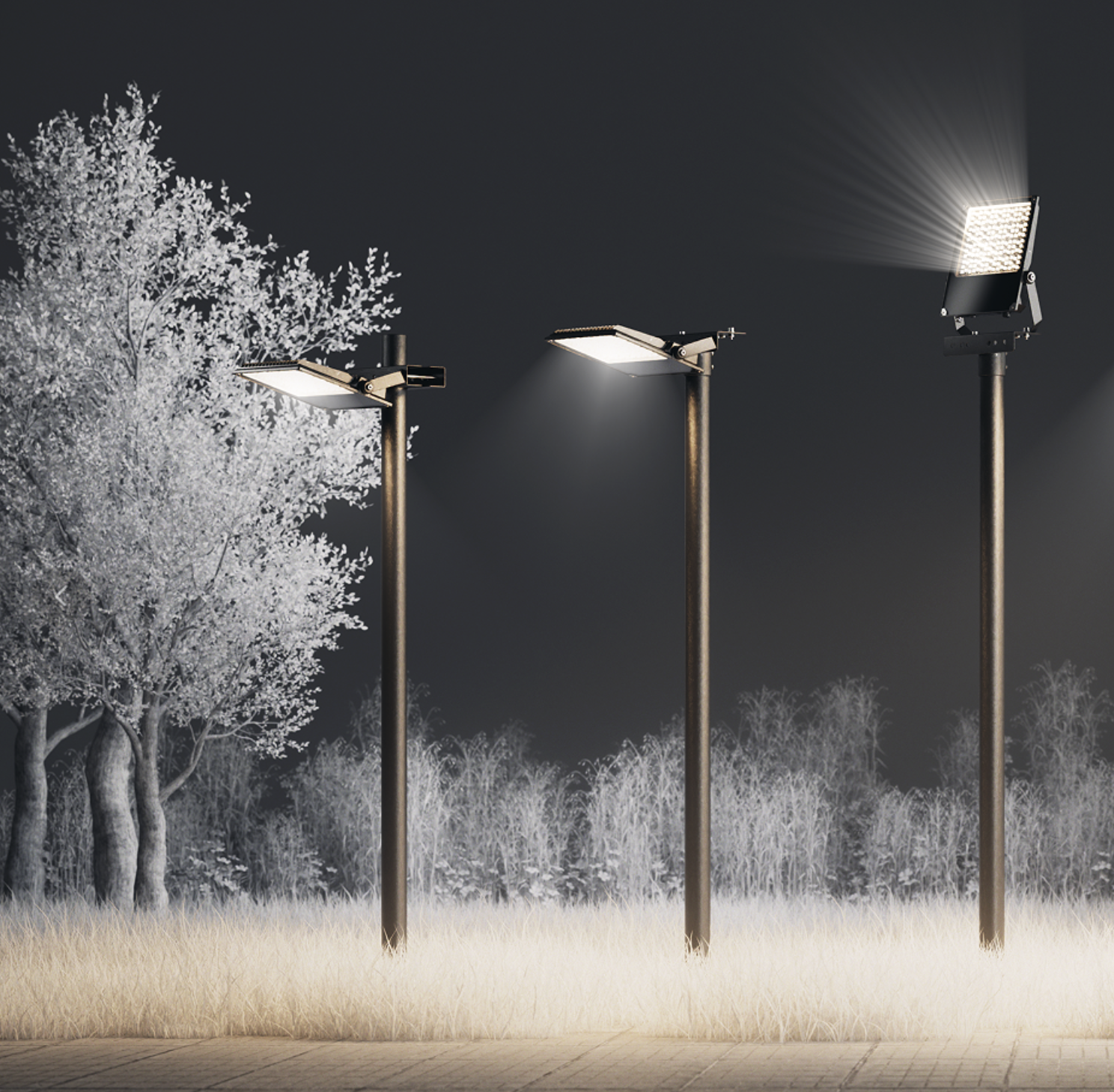

The Skyline Omni is a CCT Floodlight with Wattage Switchability in higher wattage models, featuring a compact design, adjustable bracket and tempered glass cover.
Download Specification
Full Specification
Downloads
Name
Skyline Omni 100/150/200W Wattage Switchable LED Floodlight - Symmetric - 3CCT
Commodity Code
9405423990
EAN
5063695003331
Volts (V)
220/240
Energy Consumption (kWh/1000h)
200
Lumens per Watt (lm/W)
157 at 4000K
CRI (Ra)
80
Life Hours
50000
Guarantee
7 Years
Frequency (Hz)
50/60
Switching Cycles
25000
LED Drive Current
980mA at 230V
IP Rating
IP65
Beam Angle
110°
Depth (mm)
69
Height (mm)
482
Width (mm)
373
Windage
0.133m²
Flex
1.5m
Electric Class
Class I
Power Factor
0.9
Operating Temperature
-40℃ - +45℃
Individual Product Weight (kg)
5.225
Outer Box Qty
2
Outer Box Weight (kg)
11.55
Outer Box Height (mm)
407
Outer Box Width (mm)
167
Outer Box Depth (mm)
542
Outer Box Volume
0.036839198
Wattage (W)
100/150/200
Colour Temperature (K)
3000/4000/5000
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
5.495
Single box Height (mm)
389
Single box Width (mm)
73
Single Box Depth (mm)
482
Single Box Volume
0.013687354
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
UOM For Battery Weight
KG
Lumen output (lm)
100W = 15680 at 4000K / 150W = 23520 at 4000K / 200W = 31360 at 4000K
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Corrosion Rating
300 hour salt spray - C3 Corrosion Rating
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
LED Floodlights
EDATA Product Range
Skyline Omni
EDATA Quantity Interval
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
