Powertron Medium Asymmetric Beam (MAB)

Skyline Powertron 1200W LED Asymmetric (MAB) Floodlight - 4200K

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
11831
Technical Specification
Colour Temp (K)
4200
Lumens (lm)
186000
Volts (V)
180/440
Watts (W)
1200

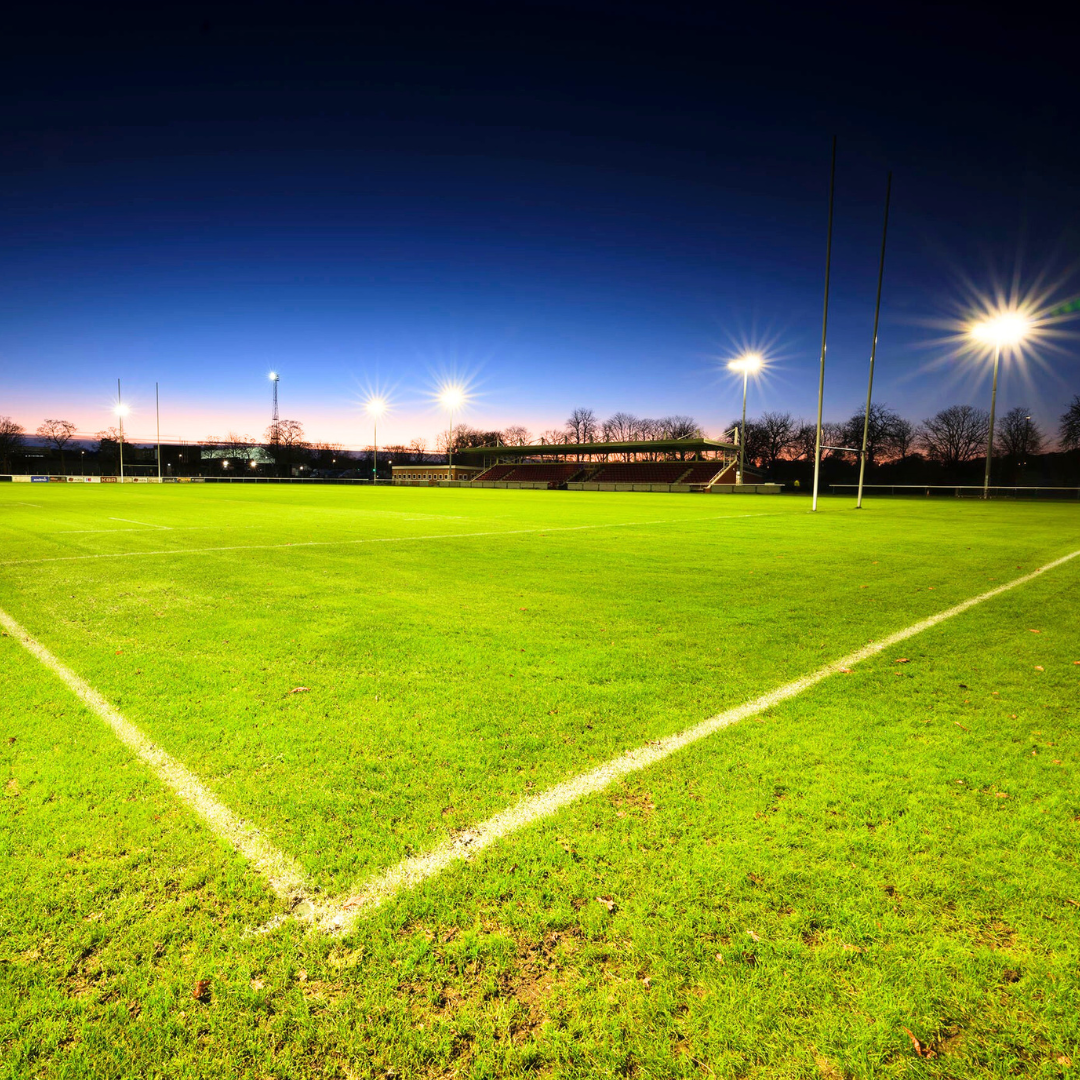

The Skyline Powertron Asymmetric LED Floodlight is the highest lumen output floodlight ever produced by BELL. The black powder coated die cast aluminium construction gives an ultra-modern aesthetic combined with a staggering 260,000 lumen output (1800W). The rugged, robust construction of the Powertron makes this fitting ideal for external sports facilities open to the elements.
Download Specification
Full Specification
Downloads
Name
Skyline Powertron 1200W LED Asymmetric (MAB) Floodlight - 4200K
Commodity Code
9405423990
EAN
5013588118314
Country Of Origin
CN
Colour Temp (K)
4200
Lumens (lm)
186000
Volts (V)
180/440
Watts (W)
1200
Life Hours
100000
CRI (Ra)
70
Guarantee
10 Years
Switching Cycles
200000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
1200
IP Rating
IP66
Height (mm)
785
Width (mm)
605
Depth (mm)
253
UNSPSC Code
39111626
Individual Product Weight (kg)
Including Driver - 27.9 / Remote Driver - 22.5 (Weights Do Not Include Visor)
Impact Protection
IK8
Outer Box Qty
1
Equivalent Watts (W)
2000
Lumens per Watt (lm/W)
155
Windage
0.22m² at 0°
Product Category
Floodlight
Product Application
Sports Lighting
LED Chip
OSRAM 3737
Power Factor
>0.9
Operating Temperature
-30°C TO +35°C
Lumens Maintenance Ratio
80
Surge Protection
10000 Volts
Driver Integral?
No
