Powertron Medium Asymmetric Beam (MAB)

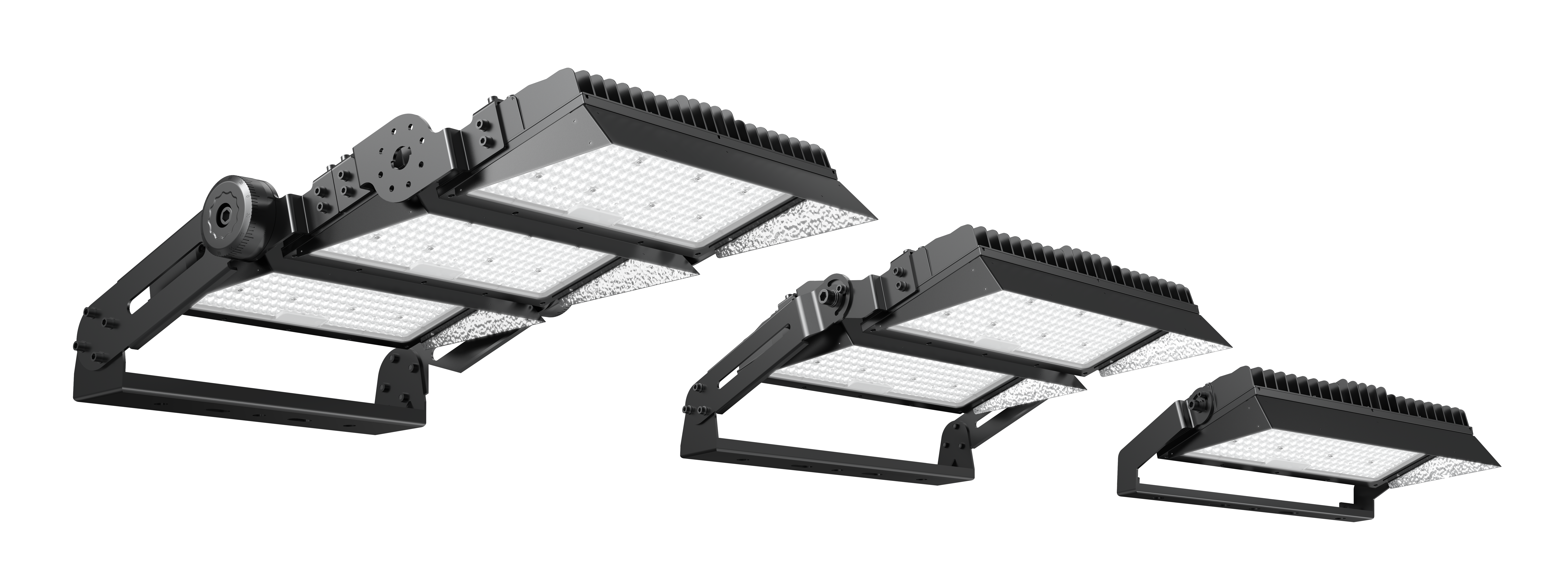

Skyline Powertron 1200W LED Asymmetric (MAB) Marine Grade Floodlight - 5700K

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
70221
Technical Specification
Watts (W)
1200
Volts (V)
200-400 (Single/Cross Phase)
Colour Temp (K)
5700
Lumens (lm)
187909
Please contact our Lighting Design Team through lightingdesign@belllighting.co.uk for LDT files which include shields and other optional attachments.
Download Specification
Full Specification
Downloads
Name
Skyline Powertron 1200W LED Asymmetric (MAB) Marine Grade Floodlight - 5700K
Commodity Code
9405423990
Country Of Origin
CN
UNSPSC Code
39111626
EAN
5013588702216
Watts (W)
1200
Volts (V)
200-400 (Single/Cross Phase)
Colour Temp (K)
5700
Equivalent Watts (W)
2000
Life Hours
100000
CRI (Ra)
70
Guarantee
10 Years
Switching Cycles
200000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
1200
IP Rating
IP66
Height (mm)
785
Width (mm)
605
Depth (mm)
253
Impact Protection
IK8
Power Factor
>0.9
Driver Integral?
No
Product Category
LED Luminaires - Not Plastic
Product Application

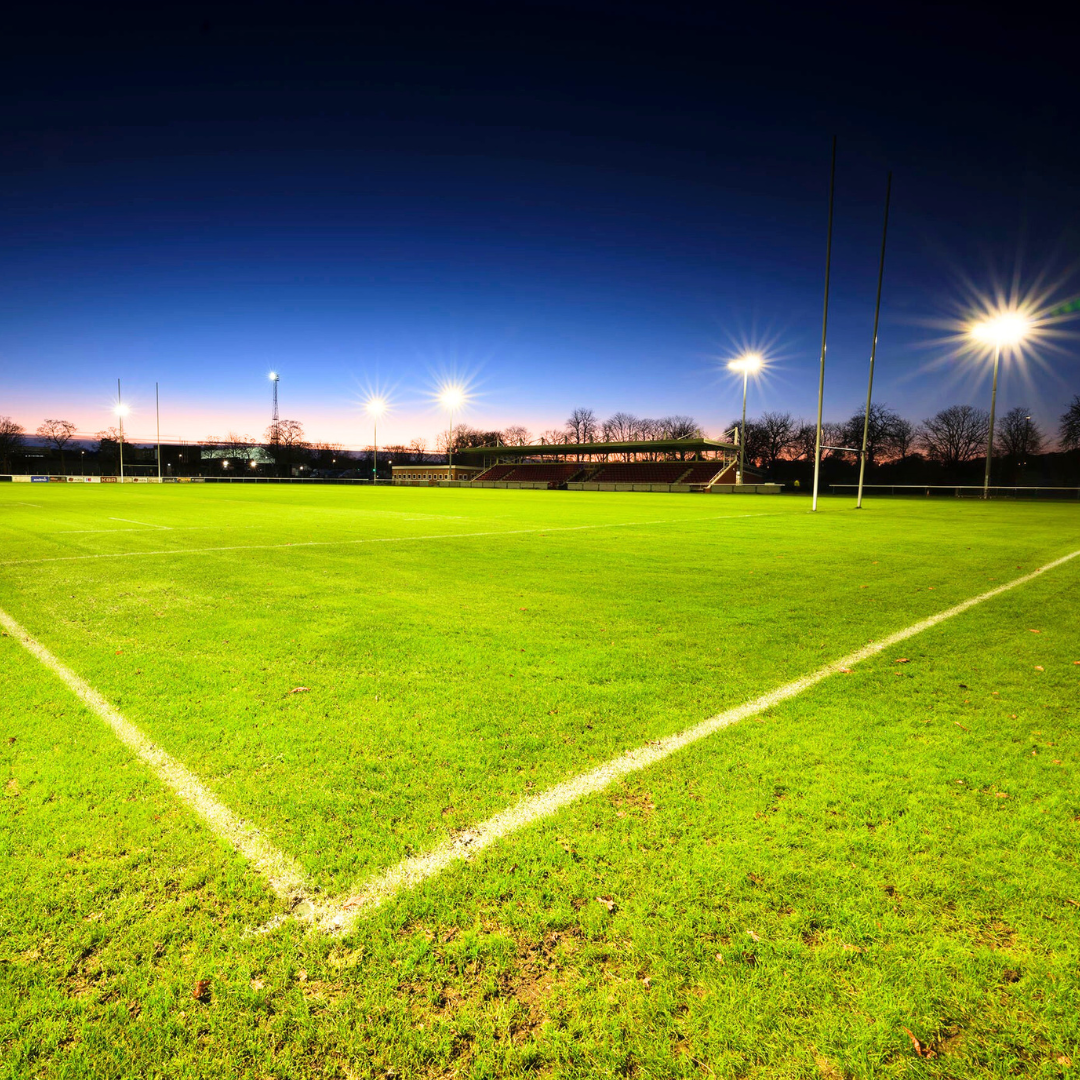

Sports Lighting
LED Chip
OSRAM 3737
Surge Protection
10KV
Operating Temperature
-30°C to +35°C
Lumens Maintenance Ratio
80
Dimming Option
Dali
Windage
0.09m² at 0° / 0.18m² at 15° / 0.26m² at 30°
Individual Product Weight (kg)
Including Driver - 27.9 / Remote Driver - 22.5 (Weights Do Not Include Visor)
Lumens (lm)
187909
Lumens per Watt (lm/W)
157
