Powertron Slim Asymmetric Beam (SAB)

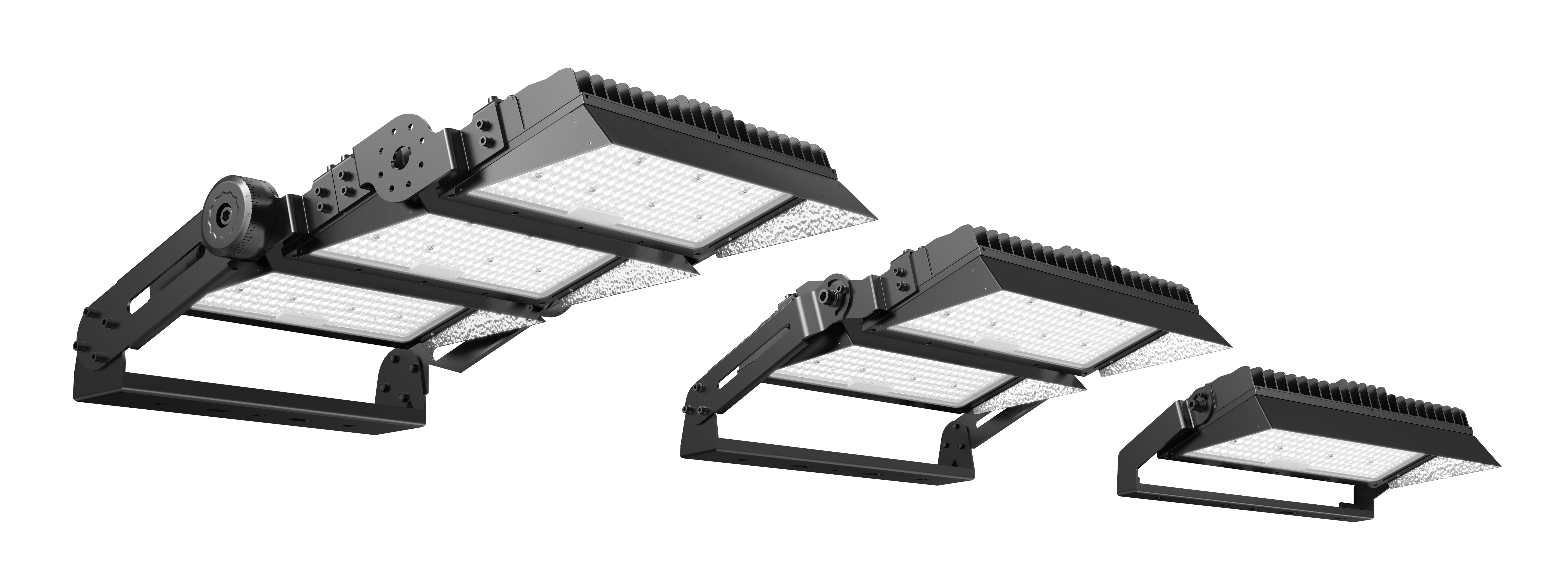

Skyline Powertron 1800W LED Asymmetric (SAB) Floodlight - 5700K

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
70232
Technical Specification
Volts (V)
200-400 (Single/Cross Phase)
Watts (W)
1800
Colour Temp (K)
5700
Lumens (lm)
267787

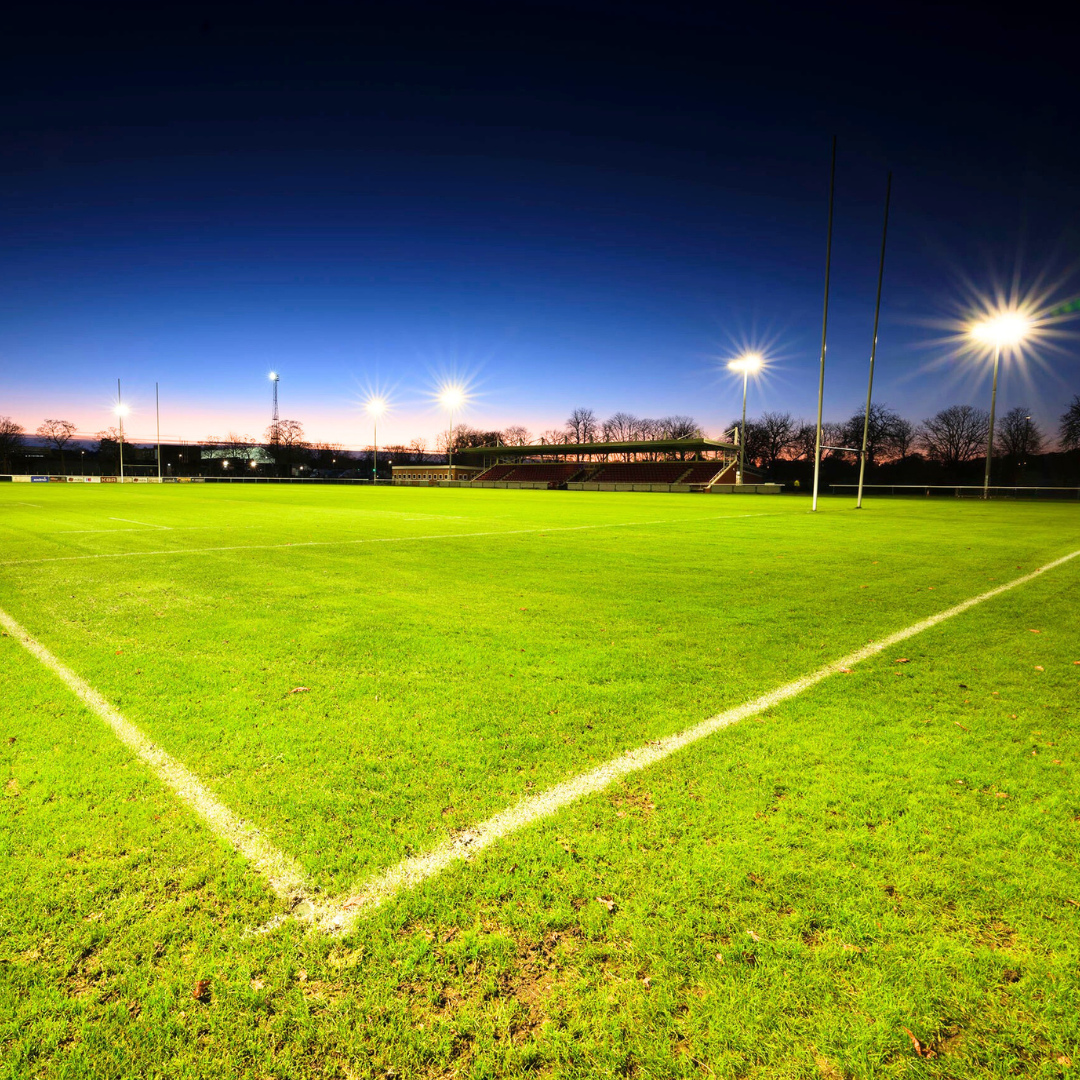

The Skyline Powertron Asymmetric LED Floodlight is the highest lumen output floodlight ever produced by BELL. The black powder coated die cast aluminium construction gives an ultra-modern aesthetic combined with a staggering lumen output. The rugged, robust construction of the Powertron makes this fitting ideal for external sports facilities open to the elements.
Download Specification
Full Specification
Downloads
Name
Skyline Powertron 1800W LED Asymmetric (SAB) Floodlight - 5700K
Volts (V)
200-400 (Single/Cross Phase)
Watts (W)
1800
Colour Temp (K)
5700
Dimming Option
Dali
Life Hours
100000
CRI (Ra)
70
Guarantee
10 Years
Switching Cycles
200000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
1800
IP Rating
IP66
Height (mm)
1100
Width (mm)
605
Depth (mm)
332
Impact Protection
IK8
Windage
0.11m² at 0° / 0.26m² at 15° / 0.39m² at 30°
Power Factor
>0.9
Driver Integral?
No
Product Category
LED Luminaires - Not Plastic
Product Application
Sports Lighting
LED Chip
OSRAM 3737
Surge Protection
10KV
Operating Temperature
-30°C to +35°C
Lumens Maintenance Ratio
80
Commodity Code
9405423990
EAN
5013588003467
Country Of Origin
CN
UNSPSC Code
39111626
Individual Product Weight (kg)
Including Driver - 36.3 / Remote Driver - 30.4 (Weights Do Not Include Visor)
Lumens (lm)
267787
Lumens per Watt (lm/W)
149
