Powertron Slim Asymmetric Beam (SAB)

Skyline Powertron 1200W LED Marine Grade Asymmetric (SAB) Floodlight - Casambi Enabled - 4200K

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
82016
Technical Specification
Volts (V)
200-400 (Single/Cross Phase)

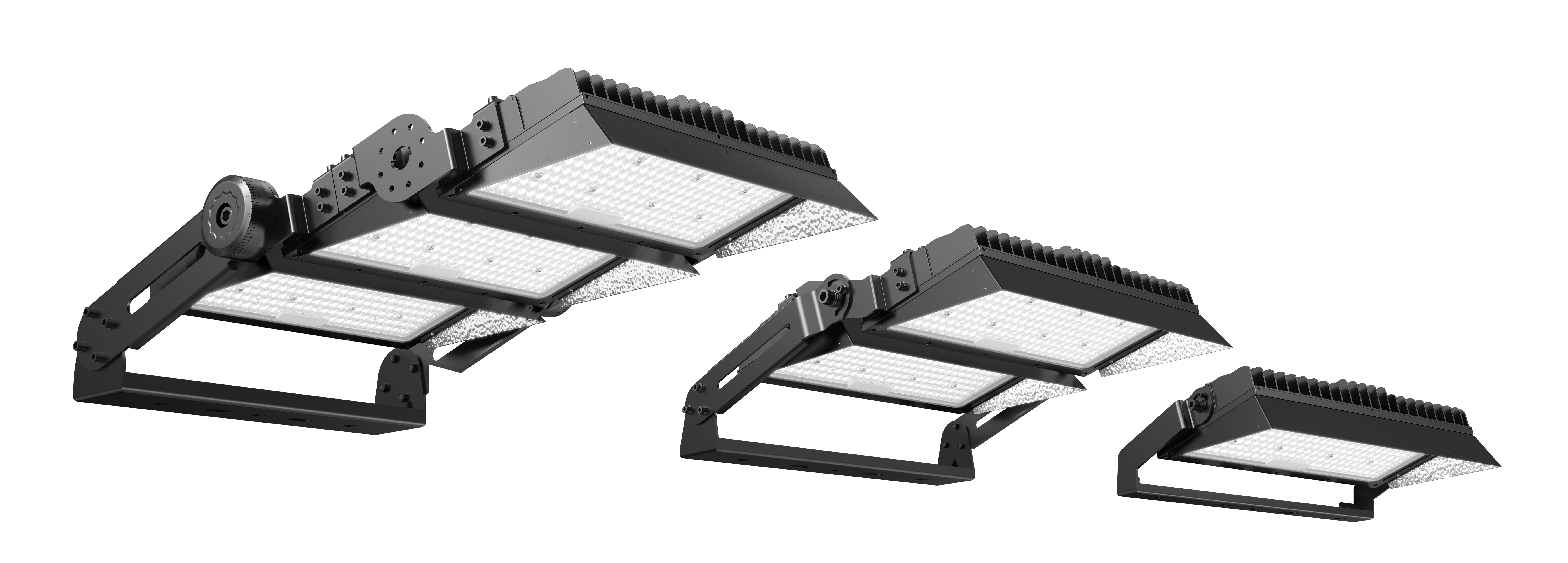

The Skyline Powertron Asymmetric LED Floodlight is the highest lumen output floodlight ever produced by BELL. The black powder coated die cast aluminium construction gives an ultra-modern aesthetic combined with a staggering lumen output. The rugged, robust construction of the Powertron makes this fitting ideal for external sports facilities open to the elements.
Download Specification
Full Specification
Downloads
Name
Skyline Powertron 1200W LED Marine Grade Asymmetric (SAB) Floodlight - Casambi Enabled - 4200K
EAN
5063695000491
Commodity Code
9405423990
Surge Protection
10kV
Operating Temperature
-30°C to +50°C
Power Factor
>0.9
Volts (V)
200-400 (Single/Cross Phase)
Dimming Option
DALI
Life Hours
100000
CRI (Ra)
70
Guarantee
10 Years
Switching Cycles
200000
Frequency (Hz)
50/60
IP Rating
IP66
Energy Consumption (kWh/1000h)
1200
Individual Product Weight (kg)
Including Driver - 27.9 / Remote Driver - 22.5 (Weights Do Not Include Visor)
Height (mm)
785
Width (mm)
605
Depth (mm)
253
Windage
0.1m² at 0° / 0.2m² at 15° / 0.27m² at 30° / 0.33m² at 45° / 0.37m² at 60° / 0.39m² at 75°
Lumens per Watt (lm/W)
146
Standard Deviation Colour Matching
5-step MacAdam ellipse
Electric Class
Class I
Wattage (W)
1200
Equivalent Wattage (W)
2000
Colour Temperature (K)
4200
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
26.5 (Remote Driver)
Single box Height (mm)
860
Single box Width (mm)
720
Single Box Depth (mm)
275
Single Box Volume
0.17028
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
175570
Dimmable
Yes
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
Corrosion Rating
1500 hour salt spray - C5 Corrosion Rating
