Powertron Wide Asymmetric Beam (WAB)

Skyline Powertron 600W LED Asymmetric (WAB) Floodlight - 5700K

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
70233
Technical Specification
Volts (V)
200-400 (Single/Cross Phase)
Watts (W)
600
Colour Temp (K)
5700
Lumens (lm)
94676
The Skyline Powertron Asymmetric LED Floodlight is the highest lumen output floodlight ever produced by BELL. The black powder coated die cast aluminium construction gives an ultra-modern aesthetic combined with a staggering lumen output. The rugged, robust construction of the Powertron makes this fitting ideal for external sports facilities open to the elements.
Download Specification
Full Specification
Name
Skyline Powertron 600W LED Asymmetric (WAB) Floodlight - 5700K
Commodity Code
9405423990
EAN
5063695004017
Country Of Origin
CN
UNSPSC Code
39111626
Product Category
LED Luminaires - Not Plastic
Product Application
Sports Lighting
LED Chip
OSRAM 3737
Surge Protection
10KV
Operating Temperature
-30°C to +35°C
Lumens Maintenance Ratio
L80 B10
Power Factor
>0.9
Driver Integral?
No
Volts (V)
200-400 (Single/Cross Phase)
Watts (W)
600
Colour Temp (K)
5700
Dimming Option
Dali
Equivalent Watts (W)
1000
Life Hours
100000
CRI (Ra)
70
Guarantee
10 Years
Switching Cycles
200000
Frequency (Hz)
50/60
IP Rating
IP66
Energy Consumption (kWh/1000h)
600
Lumens (lm)
94676
Lumens per Watt (lm/W)
158
Individual Product Weight (kg)
Including Driver - 13.2 / Remote Driver - 8.9 (Weights Do Not Include Visor)
Height (mm)
474
Width (mm)
605
Depth (mm)
172
Impact Protection
IK8
Windage
0.08m² at 0° / 0.12m² at 15° / 0.15m² at 30° / 0.17m² at 45° / 0.18m² at 60° & 75°
Photometric Data

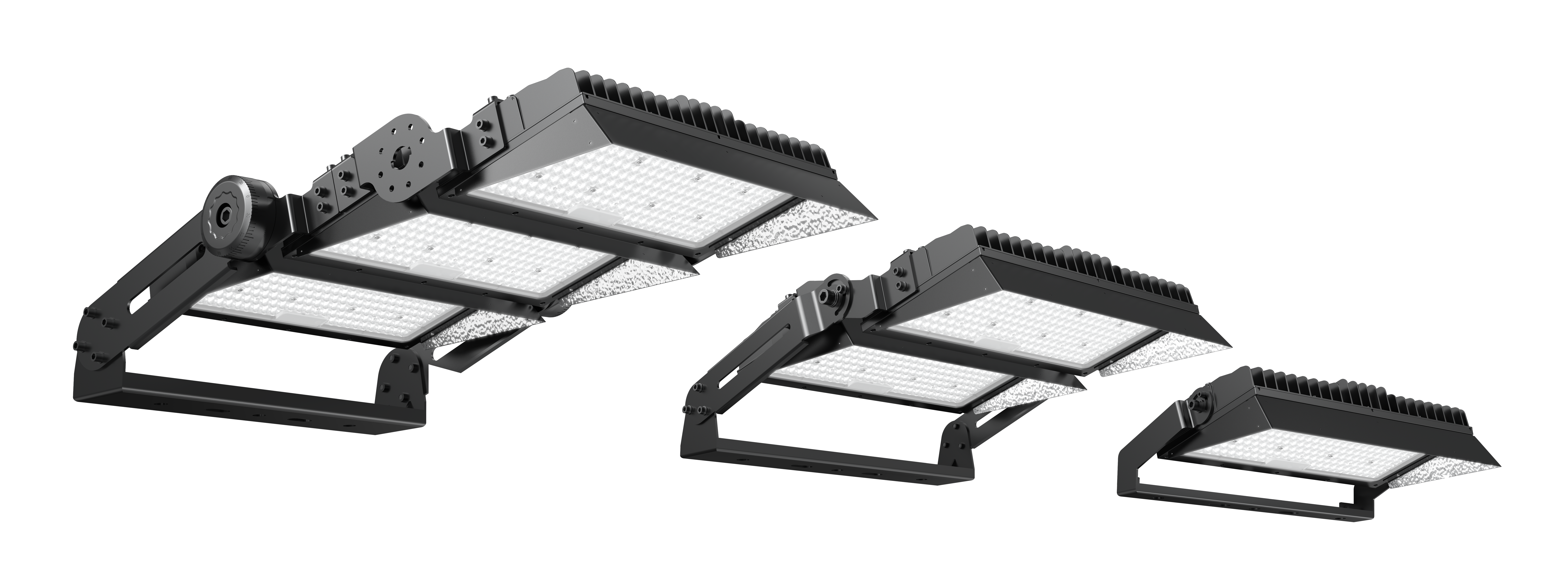

Product Image
