Powertron Wide Asymmetric Beam (WAB)

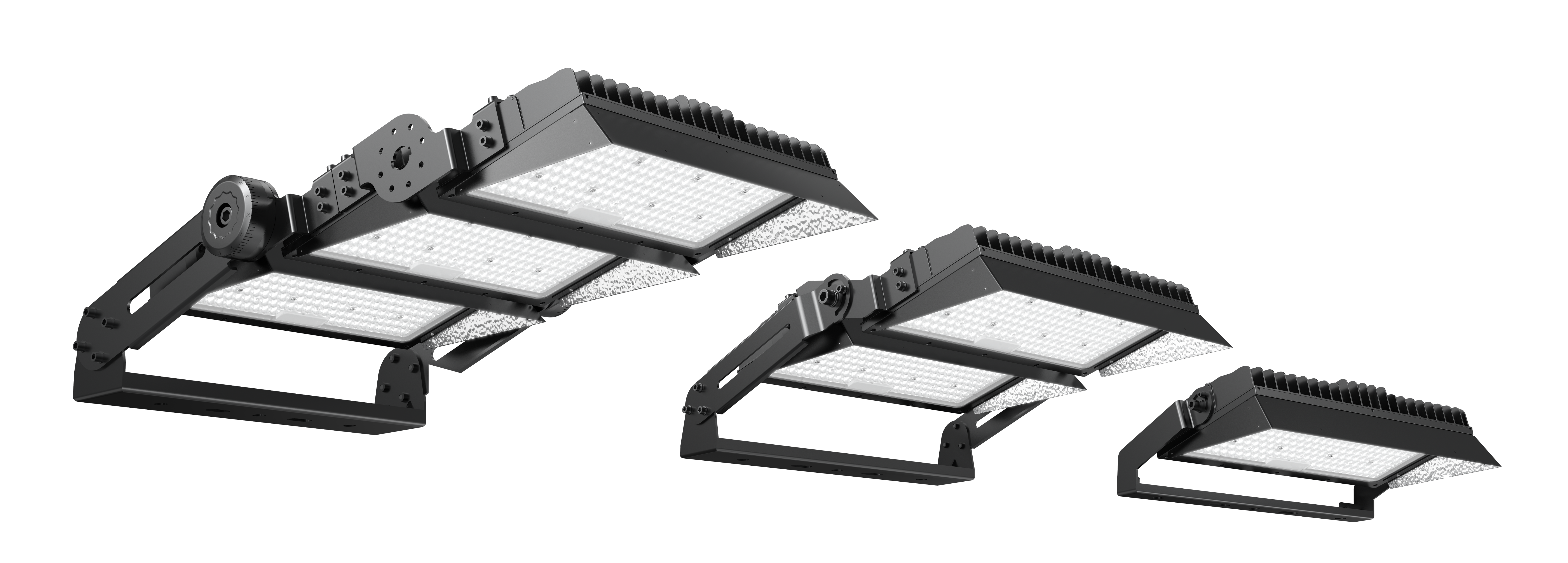

Skyline Powertron 1200W LED Asymmetric (WAB) Floodlight - 5700K

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
70234
Technical Specification
Volts (V)
200-400 (Single/Cross Phase)
Colour Temp (K)
5700
Watts (W)
1200
Lumens (lm)
189628
The Skyline Powertron Asymmetric LED Floodlight is the highest lumen output floodlight ever produced by BELL. The black powder coated die cast aluminium construction gives an ultra-modern aesthetic combined with a staggering lumen output. The rugged, robust construction of the Powertron makes this fitting ideal for external sports facilities open to the elements.
Download Specification
Full Specification
Name
Skyline Powertron 1200W LED Asymmetric (WAB) Floodlight - 5700K
Commodity Code
9405423990
EAN
5063695004024
Country Of Origin
CN
UNSPSC Code
39111626
Guarantee
10 Years
Switching Cycles
200000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
1200
IP Rating
IP66
Power Factor
>0.9
Driver Integral?
No
Product Category
LED Luminaires - Not Plastic
Product Application
Sports Lighting
LED Chip
OSRAM 3737
Surge Protection
10KV
Operating Temperature
-30°C to +35°C
Lumens Maintenance Ratio
L80 B10
Volts (V)
200-400 (Single/Cross Phase)
Colour Temp (K)
5700
Dimming Option
Dali
Watts (W)
1200
Equivalent Watts (W)
2000
Life Hours
100000
CRI (Ra)
70
Individual Product Weight (kg)
Including Driver - 27.9 / Remote Driver - 22.5 (Weights Do Not Include Visor)
Height (mm)
785
Width (mm)
605
Depth (mm)
253
Impact Protection
IK8
Windage
0.1m² at 0° / 0.2m² at 15° / 0.27m² at 30° / 0.33m² at 45° / 0.37m² at 60° / 0.39m² at 75°
Lumens (lm)
189628
Lumens per Watt (lm/W)
158
Photometric Data

Product Image
