Powertron Wide Asymmetric Beam (WAB)

Skyline Powertron 1800W LED Asymmetric (WAB) Floodlight - 5700K

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
70235
Technical Specification
Volts (V)
200-400 (Single/Cross Phase)
Colour Temp (K)
5700
Watts (W)
1800
Lumens (lm)
285865

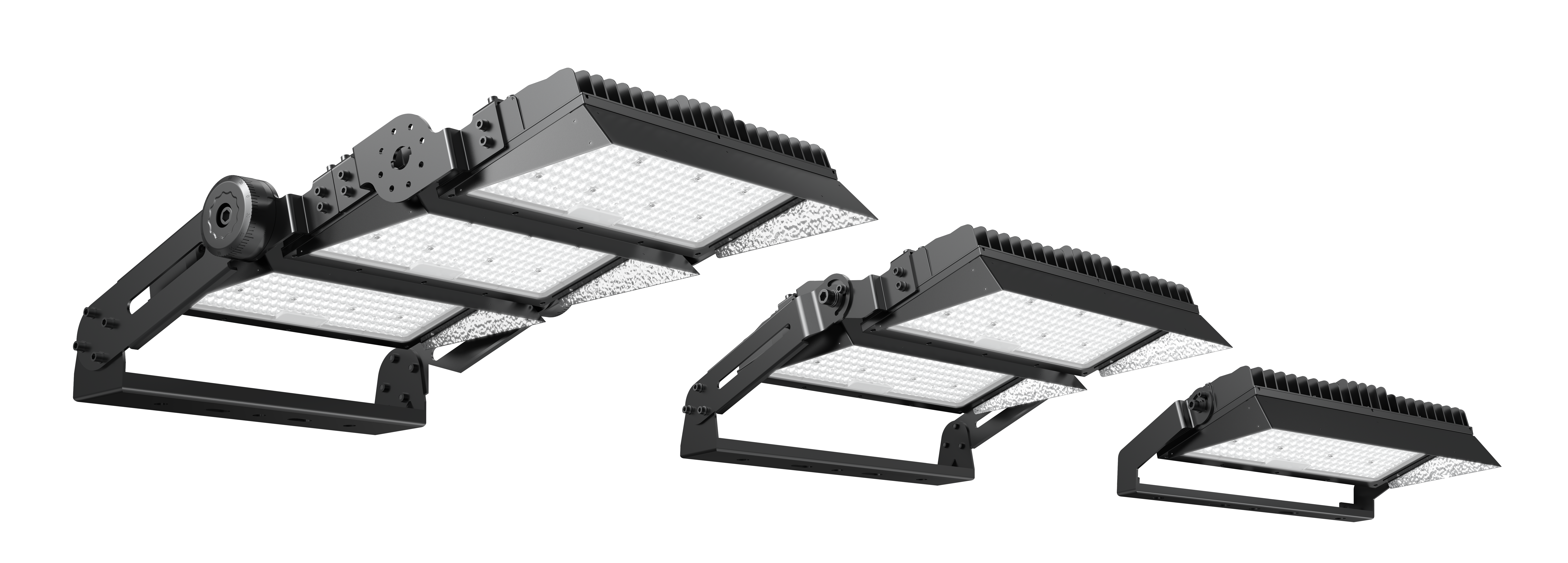

The Skyline Powertron Asymmetric LED Floodlight is the highest lumen output floodlight ever produced by BELL. The black powder coated die cast aluminium construction gives an ultra-modern aesthetic combined with a staggering lumen output. The rugged, robust construction of the Powertron makes this fitting ideal for external sports facilities open to the elements.
Download Specification
Full Specification
Name
Skyline Powertron 1800W LED Asymmetric (WAB) Floodlight - 5700K
Commodity Code
9405423990
EAN
5063695004031
Country Of Origin
CN
UNSPSC Code
39111626
Guarantee
10 Years
Switching Cycles
200000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
1800
IP Rating
IP66
Power Factor
>0.9
Driver Integral?
No
Product Category
LED Luminaires - Not Plastic
Product Application
Sports Lighting
LED Chip
OSRAM 3737
Surge Protection
10KV
Operating Temperature
-30°C to +35°C
Lumens Maintenance Ratio
L80 B10
Volts (V)
200-400 (Single/Cross Phase)
Colour Temp (K)
5700
Dimming Option
Dali
Watts (W)
1800
Life Hours
100000
CRI (Ra)
70
Individual Product Weight (kg)
Including Driver - 36.3 / Remote Driver - 30.4 (Weights Do Not Include Visor)
Height (mm)
1100
Width (mm)
605
Depth (mm)
332
Impact Protection
IK8
Windage
0.12m² at 0° / 0.26m² at 15° / 0.39m² at 30° / 0.49m² at 45° / 0.56m² at 60° / 0.59m² at 75°
Lumens (lm)
285865
Lumens per Watt (lm/W)
159
