Powertron Wide Asymmetric Beam (WAB)

Skyline Powertron 600W LED Marine Grade Asymmetric (WAB) Floodlight - Casambi Enabled - 4200K

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
82002
Technical Specification
Volts (V)
200-400 (Single/Cross Phase)
Watts (W)
600
Colour Temp (K)
4200
Lumens (lm)
92820
The Skyline Powertron Asymmetric LED Floodlight is the highest lumen output floodlight ever produced by BELL. The black powder coated die cast aluminium construction gives an ultra-modern aesthetic combined with a staggering lumen output. The rugged, robust construction of the Powertron makes this fitting ideal for external sports facilities open to the elements.
Download Specification
Full Specification
Name
Skyline Powertron 600W LED Marine Grade Asymmetric (WAB) Floodlight - Casambi Enabled - 4200K
EAN
5063695000354
Country Of Origin
CN
Commodity Code
9405423990
UNSPSC Code
39111626
Product Category
LED Luminaires - Not Plastic
Product Application
Sports Lighting
LED Chip
OSRAM 3737
Surge Protection
10KV
Operating Temperature
-30°C to +35°C
Lumens Maintenance Ratio
L80 B10
Power Factor
>0.9
Driver Integral?
No
Volts (V)
200-400 (Single/Cross Phase)
Dimming Option
Dali
Life Hours
100000
CRI (Ra)
70
Guarantee
10 Years
Switching Cycles
200000
Frequency (Hz)
50/60
Watts (W)
600
Equivalent Watts (W)
1000
Colour Temp (K)
4200
IP Rating
IP66
Energy Consumption (kWh/1000h)
600
Individual Product Weight (kg)
Including Driver - 13.2 / Remote Driver - 8.9 (Weights Do Not Include Visor)
Height (mm)
474
Width (mm)
605
Depth (mm)
172
Impact Protection
IK8
Windage
0.08m² at 0° / 0.12m² at 15° / 0.15m² at 30° / 0.17m² at 45° / 0.18m² at 60° & 75°
Lumens (lm)
92820
Lumens per Watt (lm/W)
155

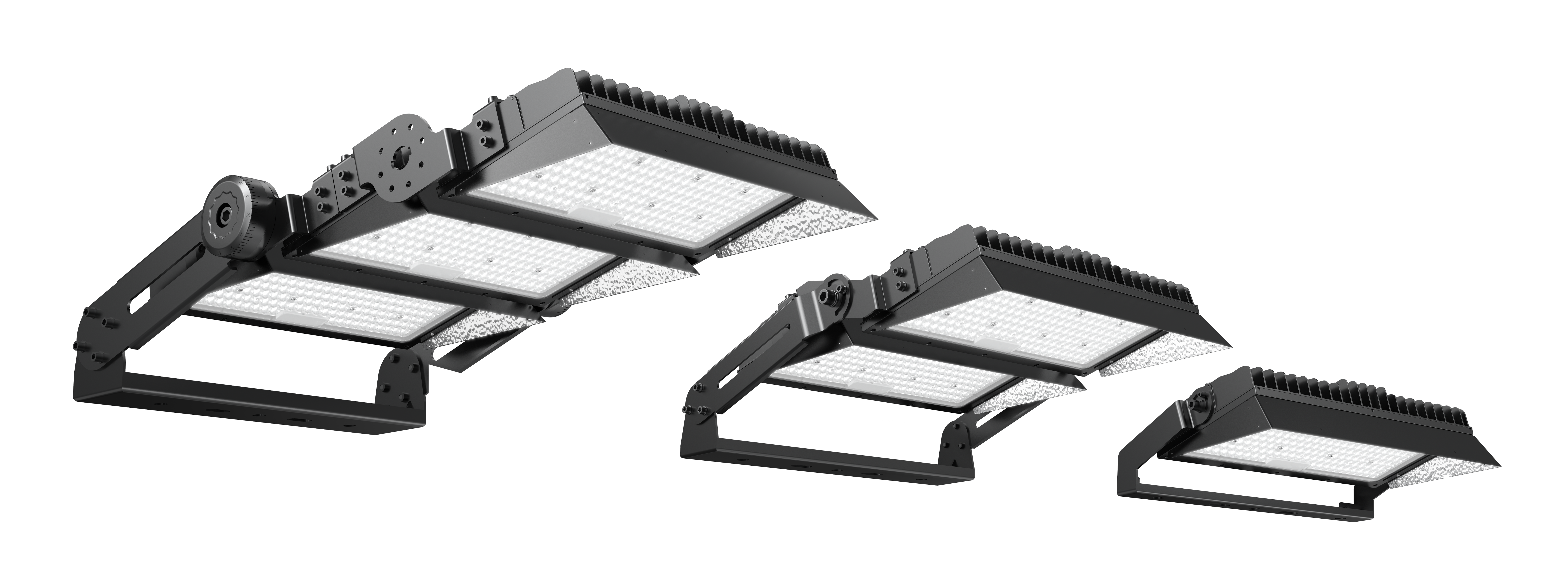

Product Image
