Powertron Wide Asymmetric Beam (WAB)

Skyline Powertron 1200W LED Marine Grade Asymmetric (WAB) Floodlight - Casambi Enabled - 4200K

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
82005
Technical Specification
Volts (V)
200-400 (Single/Cross Phase)
Watts (W)
1200
Colour Temp (K)
4200
Lumens (lm)
185910

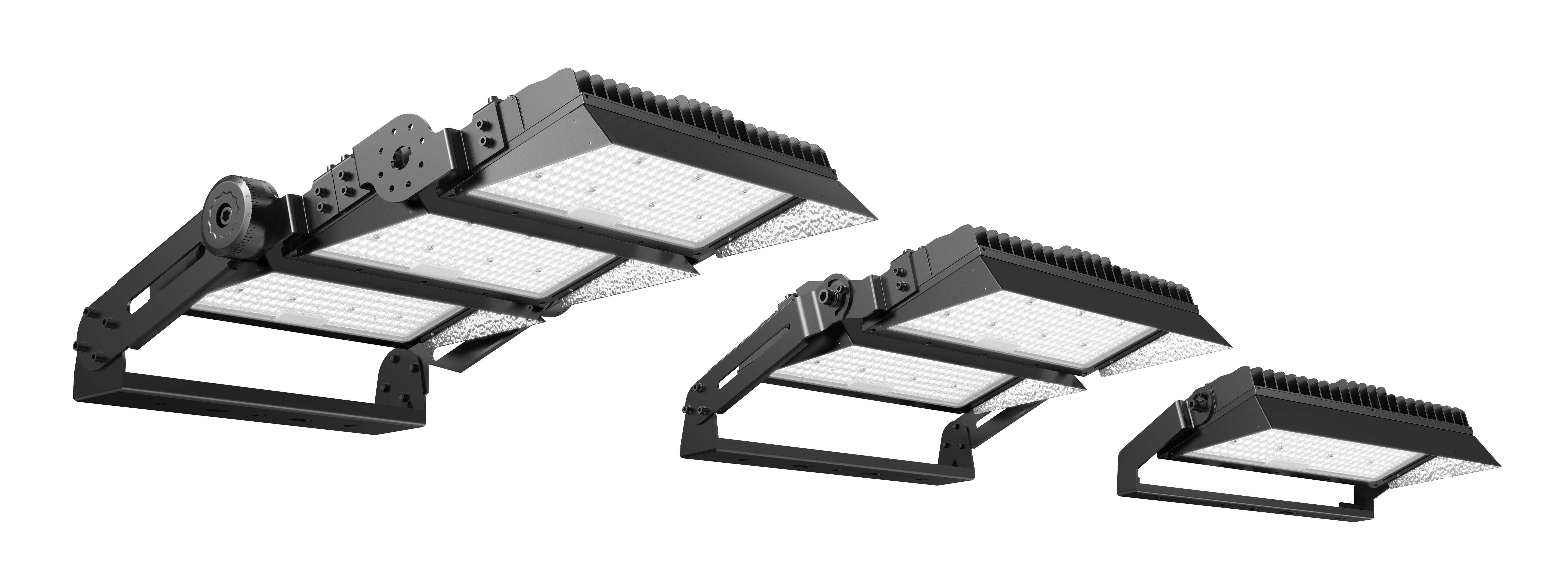

The Skyline Powertron Asymmetric LED Floodlight is the highest lumen output floodlight ever produced by BELL. The black powder coated die cast aluminium construction gives an ultra-modern aesthetic combined with a staggering lumen output. The rugged, robust construction of the Powertron makes this fitting ideal for external sports facilities open to the elements.
Download Specification
Full Specification
Name
Skyline Powertron 1200W LED Marine Grade Asymmetric (WAB) Floodlight - Casambi Enabled - 4200K
EAN
5063695000385
Country Of Origin
CN
Commodity Code
9405423990
UNSPSC Code
39111626
Product Category
LED Luminaires - Not Plastic
Product Application
Sports Lighting
LED Chip
OSRAM 3737
Surge Protection
10KV
Operating Temperature
-30°C to +35°C
Lumens Maintenance Ratio
L80 B10
Power Factor
>0.9
Driver Integral?
No
Volts (V)
200-400 (Single/Cross Phase)
Dimming Option
Dali
Life Hours
100000
CRI (Ra)
70
Guarantee
10 Years
Switching Cycles
200000
Frequency (Hz)
50/60
Watts (W)
1200
Equivalent Watts (W)
2000
Colour Temp (K)
4200
IP Rating
IP66
Energy Consumption (kWh/1000h)
1200
Individual Product Weight (kg)
Including Driver - 27.9 / Remote Driver - 22.5 (Weights Do Not Include Visor)
Height (mm)
785
Width (mm)
605
Depth (mm)
253
Impact Protection
IK8
Windage
0.1m² at 0° / 0.2m² at 15° / 0.27m² at 30° / 0.33m² at 45° / 0.37m² at 60° / 0.39m² at 75°
Lumens (lm)
185910
Lumens per Watt (lm/W)
155
