Powertron Narrow Asymmetric Beam (NAB)

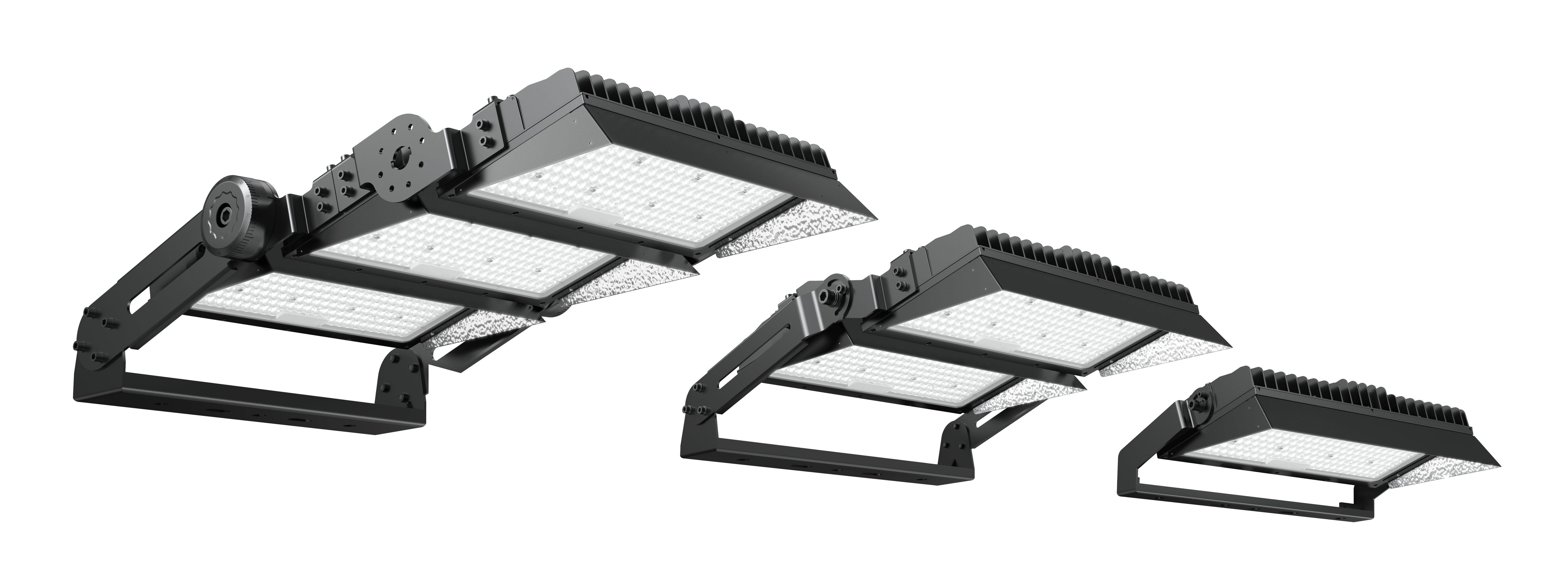

Skyline Powertron 1800W LED Asymmetric (NAB) Marine Grade Floodlight - 5700K

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
70225
Technical Specification
Volts (V)
200-400 (Single/Cross Phase)
Please contact our Lighting Design Team through lightingdesign@belllighting.co.uk for LDT files which include shields and other optional attachments.
Download Specification
Full Specification
Downloads
Name
Skyline Powertron 1800W LED Asymmetric (NAB) Marine Grade Floodlight - 5700K
Commodity Code
9405423990
EAN
5013588702254
Volts (V)
200-400 (Single/Cross Phase)
Life Hours
100000
CRI (Ra)
70
Guarantee
10 Years
Switching Cycles
200000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
1800
IP Rating
IP66
Height (mm)
1100
Width (mm)
605
Depth (mm)
332
Power Factor
>0.9
Surge Protection
10kV
Operating Temperature
-30°C to +50°C
Dimming Option
DALI
Windage
0.12m² at 0° / 0.26m² at 15° / 0.39m² at 30° / 0.49m² at 45° / 0.56m² at 60° / 0.59m² at 75°
Individual Product Weight (kg)
Including Driver - 36.3 / Remote Driver - 30.4 (Weights Do Not Include Visor)
Lumens per Watt (lm/W)
161
Standard Deviation Colour Matching
5-step MacAdam ellipse
LED Drive Current
850mA
Electric Class
Class I
Wattage (W)
1800
Colour Temperature (K)
5700
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
35 (Remote Driver)
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
288997
Dimmable
Yes
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
Corrosion Rating
1500 hour salt spray - C5 Corrosion Rating
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Catalogue Page

Instructions

Photometric Data

Product Image

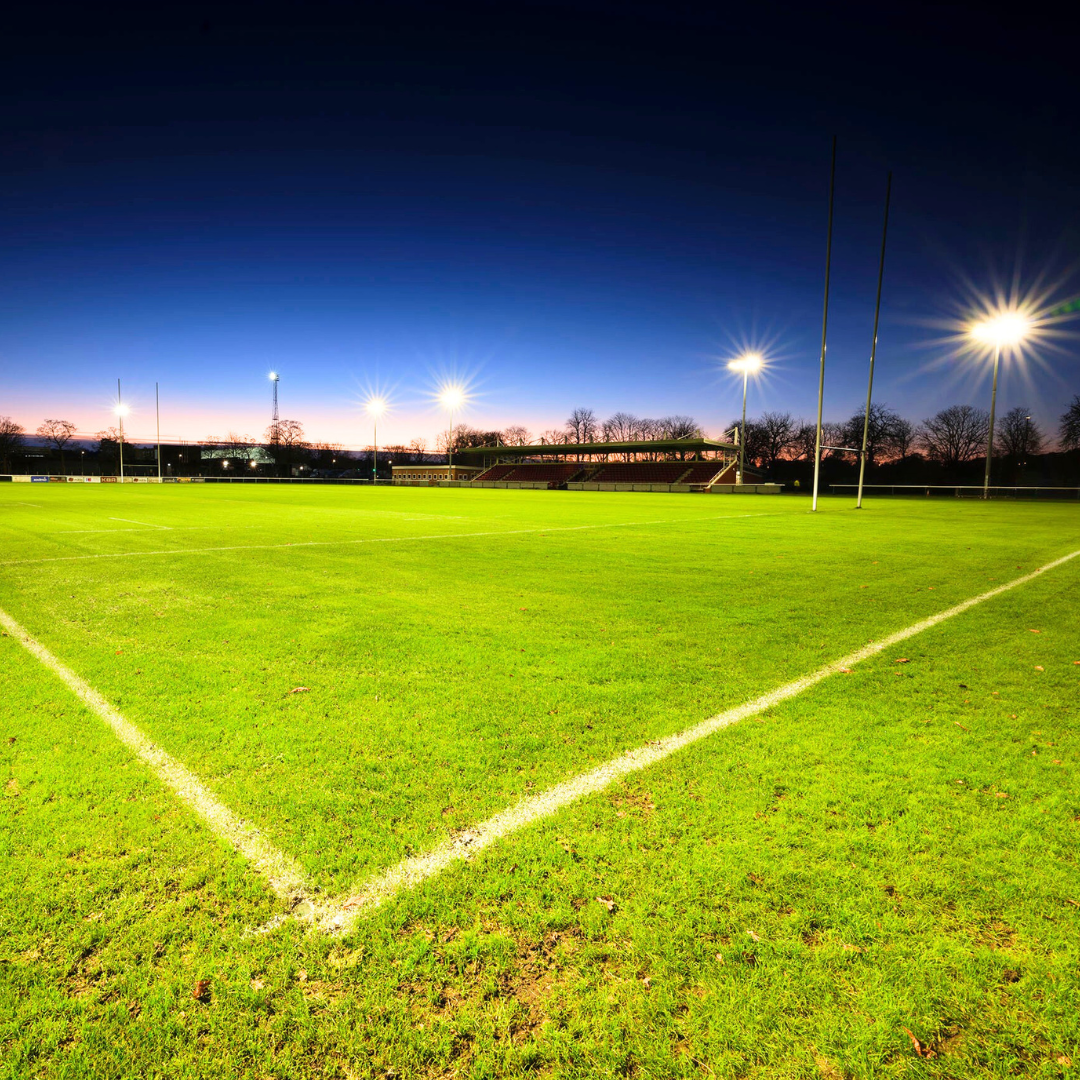

Case Study Image
