Skyline Projector

Skyline Projector 400/500/600W LED 60° Symmetric Floodlight - 5700K

Code
70251
Technical Specification
Volts (V)
220/240
Watts (W)
400/500/600
Colour Temp (K)
5700
Lumens (lm)
72625 (400W) / 88620 (500W) / 103750 (600W)
The Skyline Projector is an LED Floodlight with symmetric light distribution, perfect for competition level outdoor sport, driving ranges, and other sports lighting applications where high-mast columns are present.
Download Specification
Full Specification
Downloads
Name
Skyline Projector 400/500/600W LED 60° Symmetric Floodlight - 5700K
Commodity Code
9405423990
Country Of Origin
CN
EAN
5013588702513
Volts (V)
220/240
Watts (W)
400/500/600
Colour Temp (K)
5700
Life Hours
70000
Beam Angle
60°
CRI (Ra)
70
Switching Cycles
30000
Frequency (Hz)
50/60
LED Drive Current
310mA
Energy Consumption (kWh/1000h)
600
IP Rating
IP66
Height (mm)
490
Width (mm)
426
Depth (mm)
291
Electric Class
1
Individual Product Weight (kg)
12.96
Outer Box Weight (kg)
15.09
Outer Box Height (mm)
570
Outer Box Width (mm)
520
Outer Box Depth (mm)
235
Outer Box Volume
0.069654
Product Category
LED Luminaires - Not Plastic
Product Application
Sports Lighting
Guarantee
7 Years
Lumens (lm)
72625 (400W) / 88620 (500W) / 103750 (600W)
Lumens per Watt (lm/W)
173-182
Lumens Maintenance Ratio
L80 B10
Instructions

Photometric Data

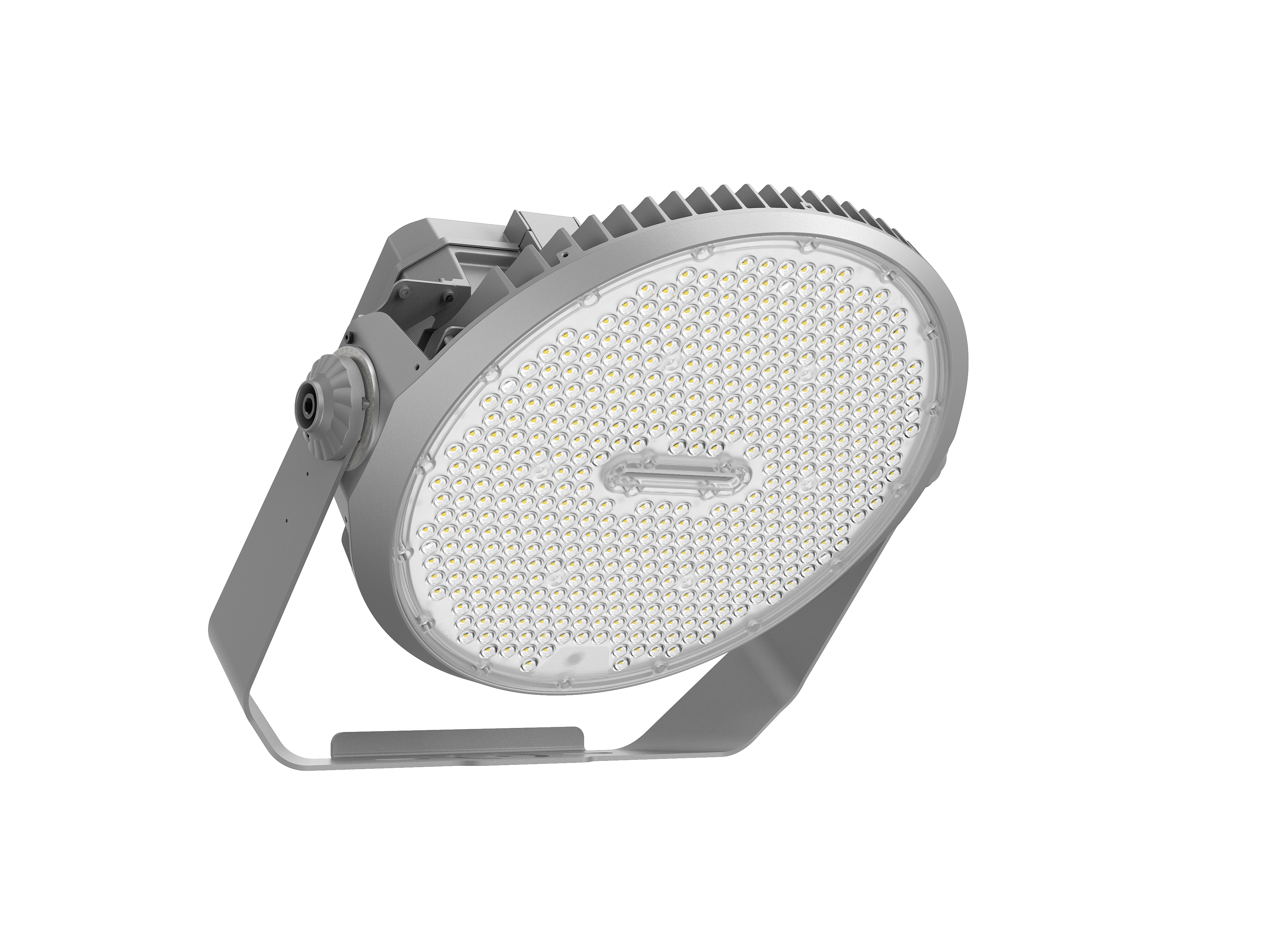

Product Image
