Dura CCT

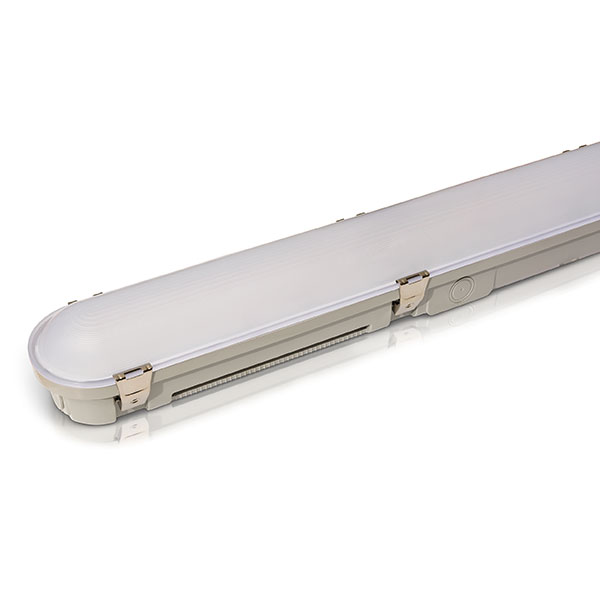

Dura 20/40W Wattage Switchable LED CCT Anti-Corrosive 4ft Batten

Code
10275
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:
10275V2 - Dura 16/21/26/32W Wattage Switchable LED CCT Anti-Corrosive 4ft Batten View product
Technical Specification
Volts (V)
220/240
Watts (W)
20/40
Colour Temp (K)
3000/4000/6000
Lumens (lm)
20W = 3184 (3000K) - 3448 (4000K) - 3257 (6000K) / 40W = 5923 (3000K) - 6630 (4000K) - 6046 (6000K)
The Dura LED CCT Anti-Corrosive Batten is part of on of BELL's flagship luminaire families. This fitting takes the reliability of the Dura Batten and adds CCT & wattage switchable functionality.
Quantity
Download Specification
Full Specification
Downloads
Name
Dura 20/40W Wattage Switchable LED CCT Anti-Corrosive 4ft Batten
Volts (V)
220/240
Watts (W)
20/40
Colour Temp (K)
3000/4000/6000
Lumens (lm)
20W = 3184 (3000K) - 3448 (4000K) - 3257 (6000K) / 40W = 5923 (3000K) - 6630 (4000K) - 6046 (6000K)
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
IP Rating
IP66
Country Of Origin
CN
Individual Product Weight (kg)
1.72
Single Carton Weight (KG)
1.96
Single Carton Height (mm)
1270
Single Carton Width (mm)
100
Single Carton Depth (mm)
70
Outer Box Weight (kg)
12.46
Outer Box Height (mm)
1280
Outer Box Width (mm)
205
Outer Box Depth (mm)
230
Commodity Code
9405423100
Individual Volume
0.00889
Outer Box Volume
0.06035
Outer Box Qty
6
EAN
5013588102757
UNSPSC Code
39111544
Impact Protection
IK10
Height (mm)
90
Length (mm)
1263
Lumens per Watt (lm/W)
148-172
Emergency Lumen Output (lm)
370 - 414 - 378 (When Used With 10281)
Product Category
LED Luminaires - Plastic
Product Application
LED Batten
Depth (mm)
90
Outer Carton Barcode
1027500000006
Primary Material
Polycarbonate
Operating Temperature
-30°C - +35°C
Lumens Maintenance Ratio
L80 B10
Driver Manufacturer
BELL
LED Chip
Samsung
Catalogue Page

Instructions

Photometric Data

Product Image

Declaration Of Conformity
