Dura CCT V2 Casambi

Dura 33W LED CCT Anti-Corrosive 5ft Batten - Casambi Dimming Enabled

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
82198
Technical Specification
Volts (V)
220/240
The Dura LED CCT Anti-Corrosive Batten is part of one of BELL's flagship luminaire families. This fitting takes the reliability of the Dura Batten and adds CCT & wattage switchable functionality.
Download Specification
Full Specification
Name
Dura 33W LED CCT Anti-Corrosive 5ft Batten - Casambi Dimming Enabled
EAN
5063695002563
Volts (V)
220/240
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
IP Rating
IP66
Height (mm)
78
Length (mm)
1570
Primary Material
Polycarbonate
Operating Temperature
-30°C - +35°C
Commodity Code
9405423100
Individual Product Weight (kg)
1.7
Outer Box Weight (kg)
12.7
Outer Box Height (mm)
180
Outer Box Width (mm)
315
Outer Box Depth (mm)
1590
Outer Box Qty
6
Outer Box Volume
0.090153
Electric Class
Class I
Energy Consumption (kWh/1000h)
33
Width (mm)
96
Diameter (mm)
20
Lumens per Watt (lm/W)
149-162
Wattage (W)
33
Colour Temperature (K)
3000/4000/6000
IK Rating
IK10
Minimum Order Quantity
1
Single Box Weight (kg)
1.9
Single box Height (mm)
83
Single box Width (mm)
100
Single Box Depth (mm)
1575
Single Box Volume
0.0130725
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
4921 (3000K) / 5354 (4000K) / 5187 (6000K)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes

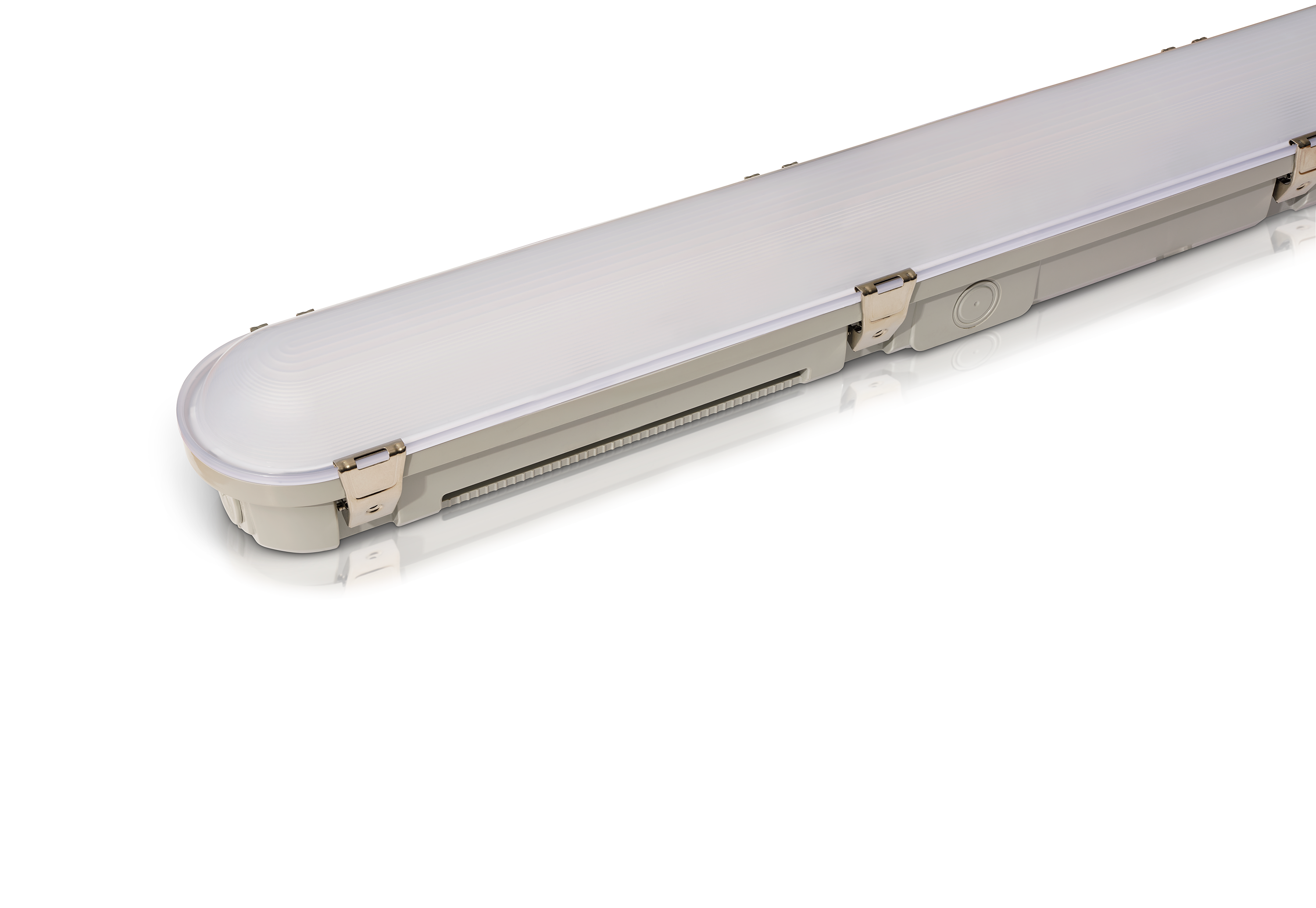

Product Image
