Dura CCT V2

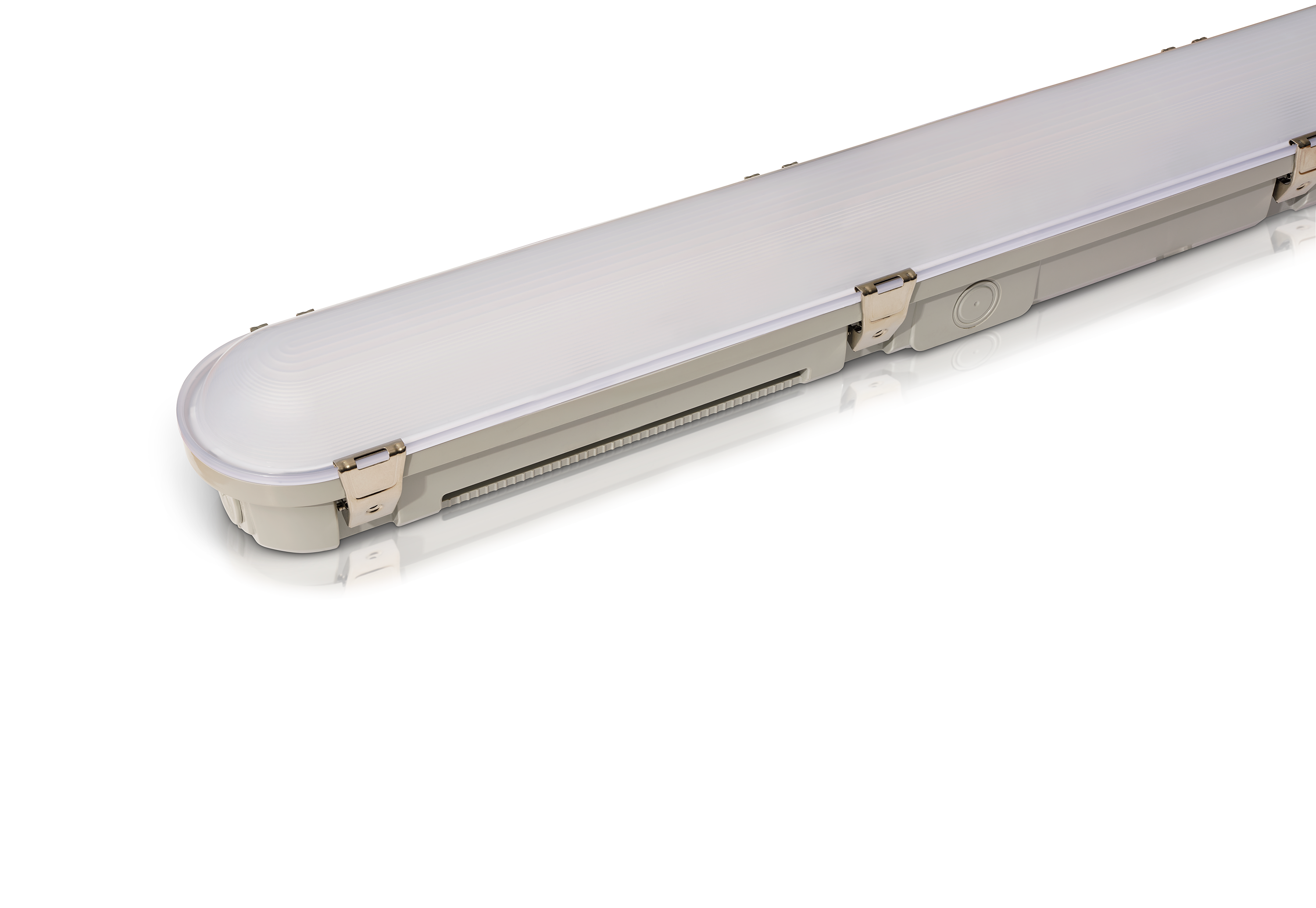

Dura 30/40/50/60W Wattage Switchable LED CCT V2 Anti-Corrosive 6ft Batten

Code
10277V2
Next Delivery
26/01/2026 - 532 items
Technical Specification
Volts (V)
220/240
The Dura LED CCT Anti-Corrosive Batten is part of one of BELL's flagship luminaire families. This fitting takes the reliability of the Dura Batten and adds CCT & wattage switchable functionality.
Download Specification
Full Specification
Downloads
Name
Dura 30/40/50/60W Wattage Switchable LED CCT V2 Anti-Corrosive 6ft Batten
EAN
5013588002828
Commodity Code
9405423100
Volts (V)
220/240
Life Hours
50000
Beam Angle
120°
CRI (Ra)
85
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
90mA
Energy Consumption (kWh/1000h)
60
IP Rating
IP66
Electric Class
Class I
Height (mm)
78
Width (mm)
96
Length (mm)
1870
Diameter (mm)
20
Individual Product Weight (kg)
2.2
Outer Box Weight (kg)
11.3
Outer Box Height (mm)
180
Outer Box Width (mm)
215
Outer Box Depth (mm)
1890
Outer Box Qty
4
Outer Box Volume
0.073143
Guarantee
7 Years
Lumens per Watt (lm/W)
138-162
Primary Material
Polycarbonate
Operating Temperature
-30°C - +35°C
Wattage (W)
30/40/50/60
Colour Temperature (K)
3000/4000/6000
IK Rating
IK10
Minimum Order Quantity
1
Single Box Weight (kg)
2.42
Single box Height (mm)
83
Single box Width (mm)
100
Single Box Depth (mm)
1875
Single Box Volume
0.0155625
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
30W = 4438 (3000K) / 4842 (4000K & 6000K) - 40W = 5852 (3000K) / 6482 (4000K) / 6266 (6000K) - 50W = 7236 (3000K) / 8011 (4000K) / 7748 (6000K) - 60W = 8287 (3000K) / 9219 (4000K) / 8262 (6000K)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
LED Battens
EDATA Product Range
Dura
EDATA Quantity Interval
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
