Mentor Wattage Switchable & CCT

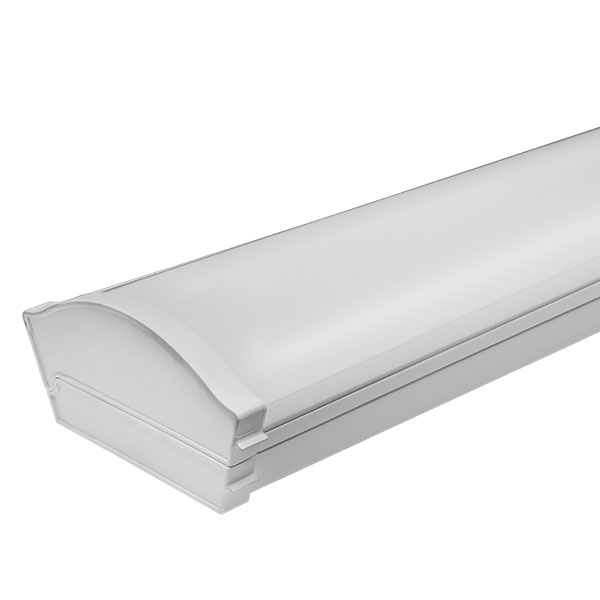

Mentor 20/38W LED 4ft CCT Batten

Code
10285
Technical Specification
Volts (V)
220/240
Watts (W)
20/38
Colour Temp (K)
3000/4000/5700
Dimmable?
No
Lumens (lm)
3500-5000
Energy Rating
E
The Mentor Wattage Switchable LED Integrated CCT Batten is colour switchable, with a choice of 3000K, 4000K, or 6000K, depending on the application. This is a 36-in-1 fitting with plug-in emergency packs, microwave and PIR sensors, and a Dali Dimming option available.
Download Specification
Full Specification
Downloads
Name
Mentor 20/38W LED 4ft CCT Batten
Volts (V)
220/240
Watts (W)
20/38
Colour Temp (K)
3000/4000/5700
Dimmable?
No
Lumens (lm)
3500-5000
Life Hours
50000
Beam Angle
115°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
27/38
IP Rating
IP40
Commodity Code
9405423170
EAN
5013588102856
Country Of Origin
CN
UNSPSC Code
39111544
Individual Volume
0.02605
Outer Box Qty
2
Height (mm)
97
Width (mm)
200
Length (mm)
1200
Outer Box Height (mm)
1225
Outer Box Width (mm)
220
Outer Box Depth (mm)
230
Single Carton Height (mm)
1210
Single Carton Width (mm)
205
Single Carton Depth (mm)
105
Individual Product Weight (kg)
3.51
Single Carton Weight (KG)
3.81
Outer Box Weight (kg)
8.12
Plastic Packaging Weight (kg)
0.015
Outer Box Volume
0.06199
Impact Protection
IK8
Candelas (cd)
870-1260
Energy Rating
E
Lumens per Watt (lm/W)
130-175
Inner Box Qty
1
