Ultra Casambi

Ultra 20W LED Integrated 4ft Single Batten - Casambi Dimming Enabled - 4000K

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
82098
Technical Specification
Volts (V)
220/240
The Ultra Batten is a versatile general-purpose luminaire. With a sleek look, this Ultra Batten is an ideal candidate for office, classroom and corridor installations.
Download Specification
Full Specification
Name
Ultra 20W LED Integrated 4ft Single Batten - Casambi Dimming Enabled - 4000K
EAN
5063695001313
Volts (V)
220/240
Life Hours
50000
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
Beam Angle
156°
Energy Consumption (kWh/1000h)
20
IP Rating
IP20
Height (mm)
82
Length (mm)
1230
Lumens per Watt (lm/W)
183
Electric Class
Class I
Power Factor
>0.9
Commodity Code
9405423990
Individual Product Weight (kg)
1.37
Outer Box Weight (kg)
10.07
Outer Box Height (mm)
1250
Outer Box Width (mm)
250
Outer Box Depth (mm)
210
Outer Box Qty
6
Outer Box Volume
0.06563
Primary Material
Steel
Operating Temperature
-30°C - +35°C
Depth (mm)
69
Wattage (W)
20
Equivalent Wattage (W)
45
Colour Temperature (K)
4000
Candelas
650
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
1.54
Single box Height (mm)
1240
Single box Width (mm)
90
Single Box Depth (mm)
75
Single Box Volume
0.00837
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
3664
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes

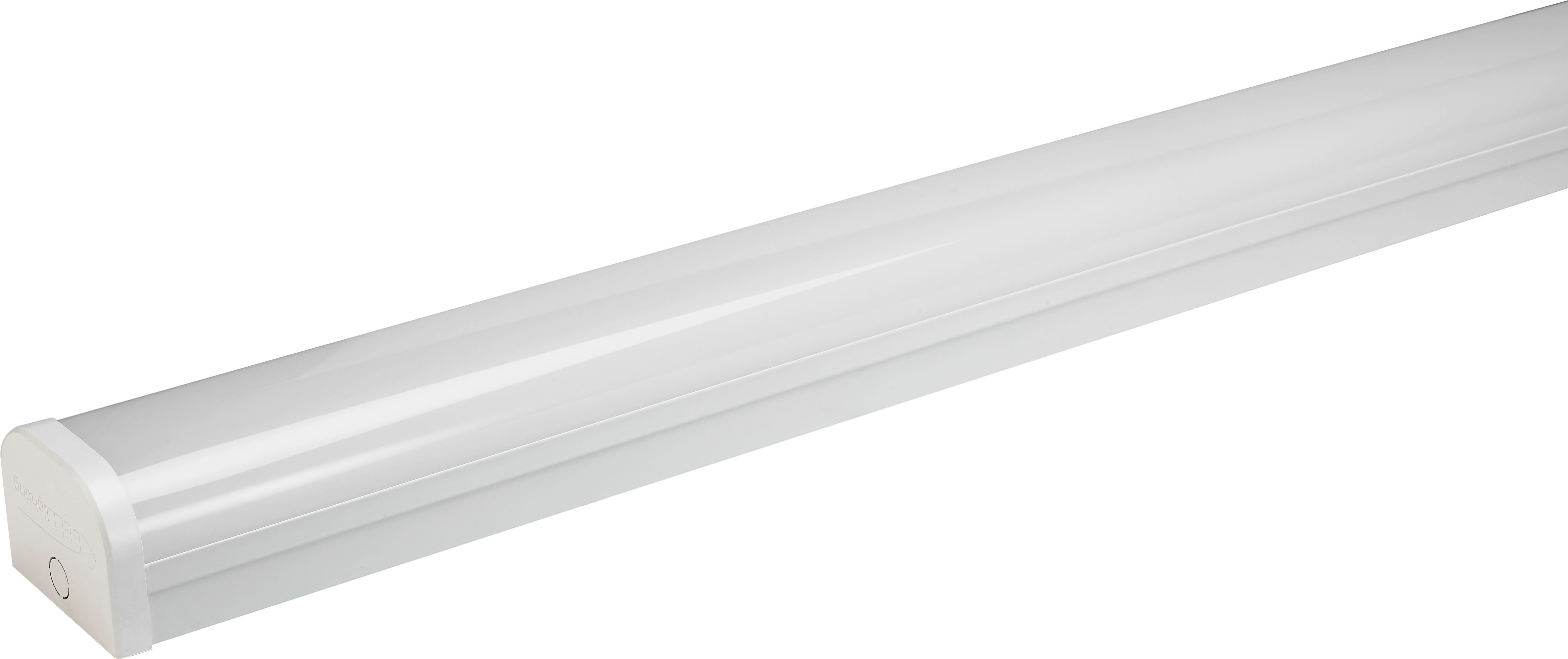

Product Image
