Ultra Casambi

Ultra 40W LED Integrated 4ft Double Batten - Casambi Dimming Enabled - 4000K

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
82102
Technical Specification
Volts (V)
220/240

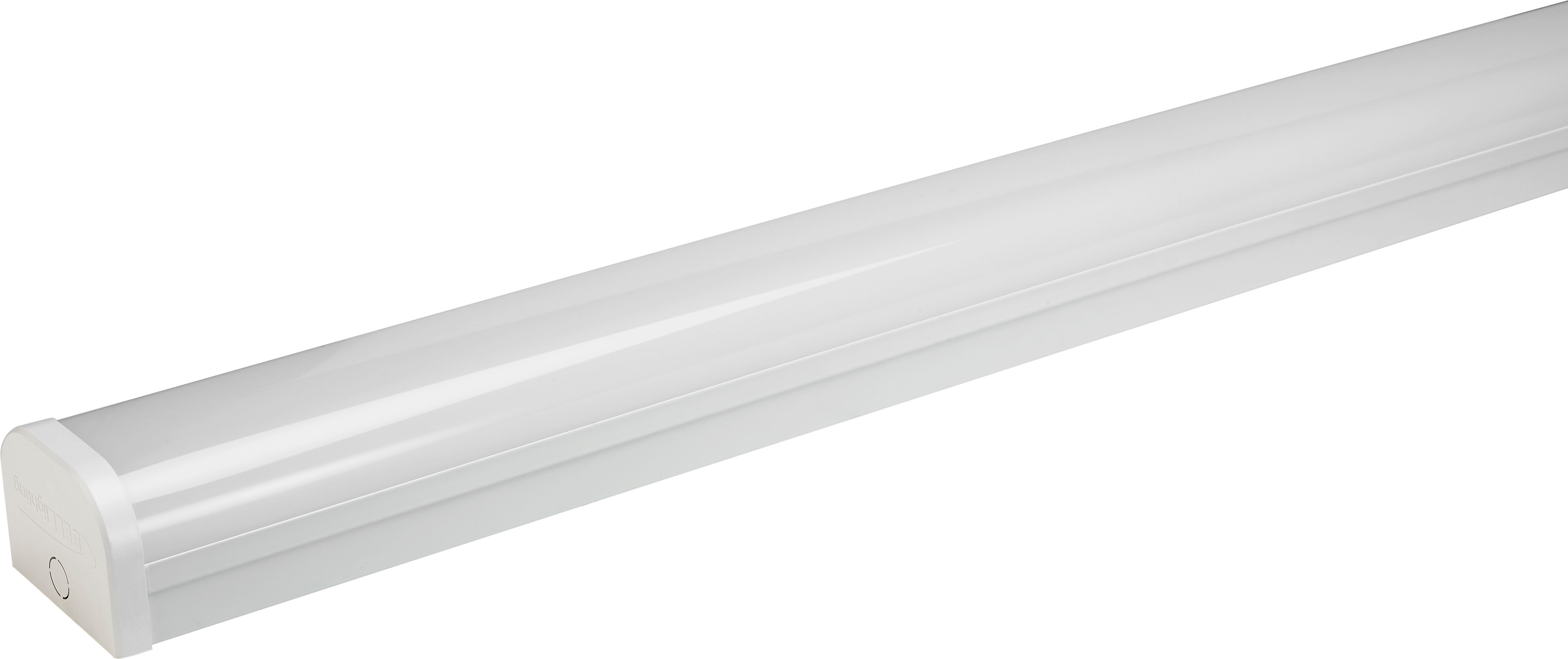

The Ultra Batten is a versatile general-purpose luminaire. With a sleek look, this Ultra Batten is an ideal candidate for office, classroom and corridor installations.
Download Specification
Full Specification
Name
Ultra 40W LED Integrated 4ft Double Batten - Casambi Dimming Enabled - 4000K
EAN
5063695001351
Volts (V)
220/240
Life Hours
50000
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
40
IP Rating
IP20
Commodity Code
9405423990
Beam Angle
128°
Height (mm)
82
Length (mm)
1230
Lumens per Watt (lm/W)
176
Electric Class
Class I
Power Factor
>0.9
Individual Product Weight (kg)
1.89
Outer Box Weight (kg)
13.62
Outer Box Height (mm)
260
Outer Box Width (mm)
290
Outer Box Depth (mm)
1250
Outer Box Qty
6
Outer Box Volume
0.09425
Primary Material
Steel
Operating Temperature
-30°C - +35°C
Depth (mm)
109
Wattage (W)
40
Equivalent Wattage (W)
90
Colour Temperature (K)
4000
Candelas
1400
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
2.06
Single box Height (mm)
86
Single box Width (mm)
114
Single Box Depth (mm)
1236
Single Box Volume
0.01212
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
7047
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
