Ultra Casambi

Ultra 30W LED Integrated 5ft Single Batten - Casambi Dimming Enabled - 4000K

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
82106
Technical Specification
Volts (V)
220/240
Watts (W)
30
Colour Temp (K)
4000
Lumens (lm)
5441
The Ultra Batten is a versatile general-purpose luminaire. With a sleek look, this Ultra Batten is an ideal candidate for office, classroom and corridor installations.
Download Specification
Full Specification
Name
Ultra 30W LED Integrated 5ft Single Batten - Casambi Dimming Enabled - 4000K
EAN
5063695001399
Country Of Origin
CN
Volts (V)
220/240
Watts (W)
30
Colour Temp (K)
4000
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
30
IP Rating
IP20
Commodity Code
9405423990
UNSPSC Code
39111544
Product Category
LED Luminaires - Not Plastic
Product Application
LED Batten
Outer Box Weight (kg)
8.37
Outer Box Height (mm)
180
Outer Box Width (mm)
200
Outer Box Depth (mm)
1550
Outer Box Qty
4
Outer Box Volume
0.0558
Individual Product Weight (kg)
1.69
Single Carton Weight (KG)
1.95
Single Carton Height (mm)
86
Single Carton Width (mm)
74
Single Carton Depth (mm)
1536
Individual Volume
0.00978
Electric Class
1
Power Factor
0.96
Height (mm)
82
Width (mm)
69
Length (mm)
1530
Lumens per Watt (lm/W)
181
Lumens (lm)
5441
Candelas (cd)
1050
Equivalent Watts (W)
58
Beam Angle
116°

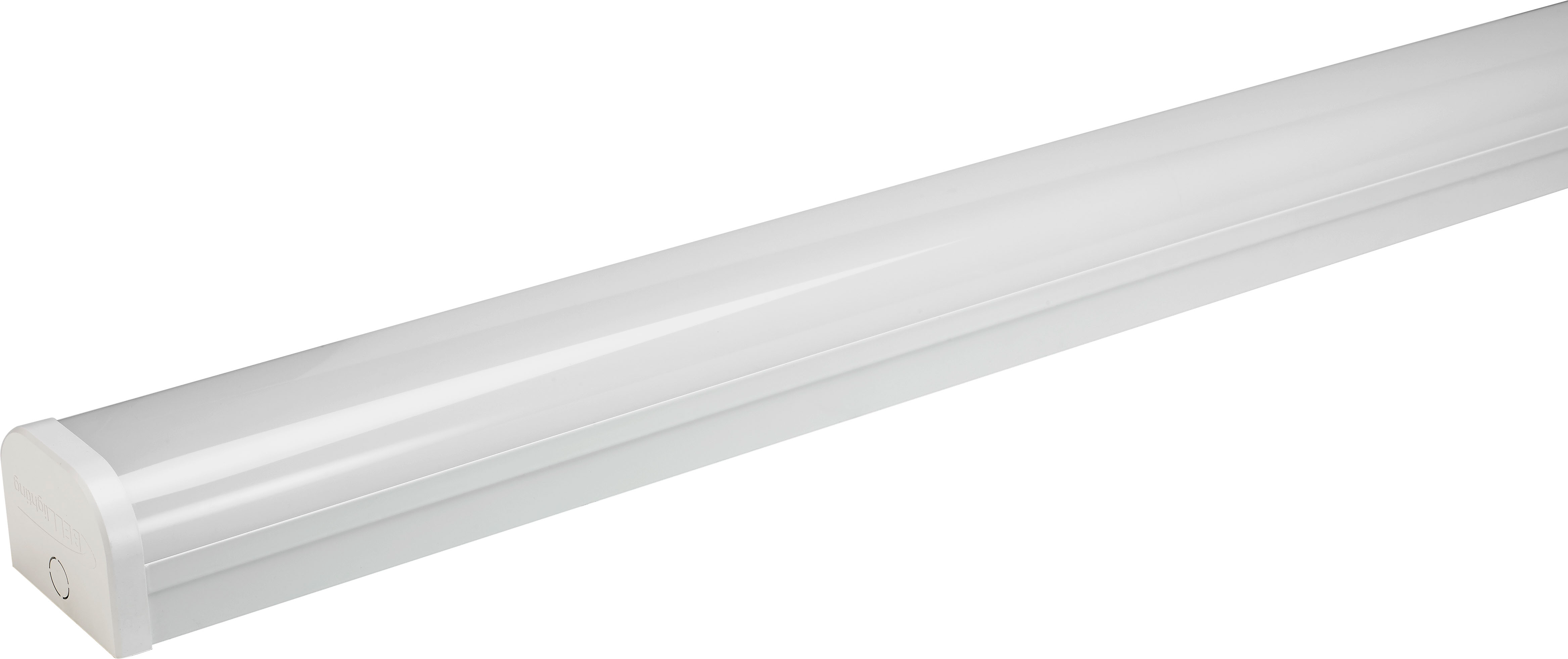

Product Image
