Ultra CCT V2

Ultra 22/27/33/40W Wattage Switchable LED CCT Integrated 4ft Batten with Microwave Corridor Dim

Code
06783
Technical Specification
Volts (V)
220/240
Colour Temp (K)
3000/4000/6000
Watts (W)
22/27/33/40
Lumens (lm)
22W = 3458 (3000K) / 3699 (4000K) / 3539 (6000K) - 27W = 4244 (3000K) / 4539 (4000K) / 4343 (6000K) - 33W = 5188 (3000K) / 5548 (4000K) / 5308 (6000K) - 40W = 6288 (3000K) / 6725 (4000K) / 6434 (6000K)
The Ultra LED CCT Batten is a versatile general-purpose fitting. The Ultra CCT Batten provides a stock friendly solution for wholesalers and contractors alike.
Download Specification
Full Specification
Name
Ultra 22/27/33/40W Wattage Switchable LED CCT Integrated 4ft Batten with Microwave Corridor Dim
Volts (V)
220/240
Colour Temp (K)
3000/4000/6000
Life Hours
50000
Beam Angle
120°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
50000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
40
IP Rating
IP20
Product Category
LED Luminaires - Plastic
Product Application
LED Batten
Commodity Code
9405423100
EAN
5013588003337
Country Of Origin
CN
UNSPSC Code
39111544
Watts (W)
22/27/33/40
Lumens (lm)
22W = 3458 (3000K) / 3699 (4000K) / 3539 (6000K) - 27W = 4244 (3000K) / 4539 (4000K) / 4343 (6000K) - 33W = 5188 (3000K) / 5548 (4000K) / 5308 (6000K) - 40W = 6288 (3000K) / 6725 (4000K) / 6434 (6000K)
Candelas (cd)
850-1600
Equivalent Watts (W)
120
LED Drive Current
350mA
Height (mm)
70
Length (mm)
1170
Depth (mm)
61
Lumens per Watt (lm/W)
157-168
Single Carton Weight (KG)
1.45
Single Carton Height (mm)
1175
Single Carton Width (mm)
65
Single Carton Depth (mm)
75
Individual Volume
0.005728125
Outer Box Weight (kg)
14
Outer Box Height (mm)
1190
Outer Box Width (mm)
350
Outer Box Depth (mm)
165
Outer Box Qty
4
Outer Box Volume
0.0687225

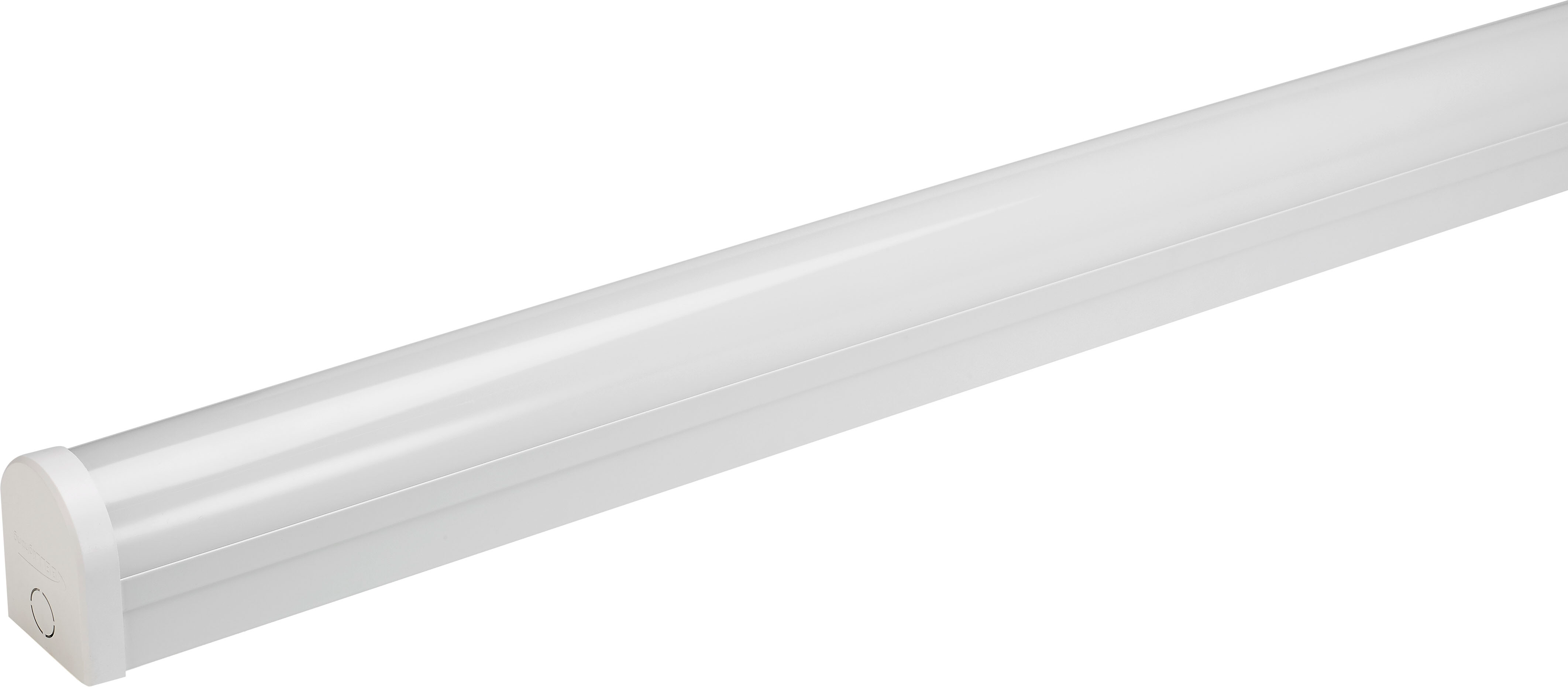

Product Image
