Ultra CCT V2

Ultra 32/40/47/60W Wattage Switchable LED CCT Integrated 5ft Batten with Microwave Corridor Dim

Code
06784
Technical Specification
Volts (V)
220/240
Colour Temp (K)
3000/4000/6000
Watts (W)
32/40/47/60
Lumens (lm)
32W = 5006 (3000K) / 5404 (4000K) / 5187 (6000K) - 40W = 6258 (3000K) / 6755 (4000K) / 6484 (6000K) - 47W = 7353 (3000K) / 7937 (4000K) / 7619 (6000K) - 60W = 9387 (3000K) / 10133 (4000K) / 9726 (6000K)
The Ultra LED CCT Batten is a versatile general-purpose fitting. The Ultra CCT Batten provides a stock friendly solution for wholesalers and contractors alike.
Download Specification
Full Specification
Name
Ultra 32/40/47/60W Wattage Switchable LED CCT Integrated 5ft Batten with Microwave Corridor Dim
Volts (V)
220/240
Colour Temp (K)
3000/4000/6000
Life Hours
50000
Beam Angle
120°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
50000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
60
IP Rating
IP20
Product Category
LED Luminaires - Plastic
Product Application
LED Batten
Commodity Code
9405423100
EAN
5013588003344
Country Of Origin
CN
UNSPSC Code
39111544
Watts (W)
32/40/47/60
Lumens (lm)
32W = 5006 (3000K) / 5404 (4000K) / 5187 (6000K) - 40W = 6258 (3000K) / 6755 (4000K) / 6484 (6000K) - 47W = 7353 (3000K) / 7937 (4000K) / 7619 (6000K) - 60W = 9387 (3000K) / 10133 (4000K) / 9726 (6000K)
Candelas (cd)
1250-2300
Equivalent Watts (W)
180
LED Drive Current
350mA
Height (mm)
70
Length (mm)
1470
Depth (mm)
61
Lumens per Watt (lm/W)
156-169
Single Carton Weight (KG)
1.85
Single Carton Height (mm)
1475
Single Carton Width (mm)
65
Single Carton Depth (mm)
75
Individual Volume
0.007190625
Outer Box Weight (kg)
14
Outer Box Height (mm)
1490
Outer Box Width (mm)
285
Outer Box Depth (mm)
165
Outer Box Qty
4
Outer Box Volume
0.07006725

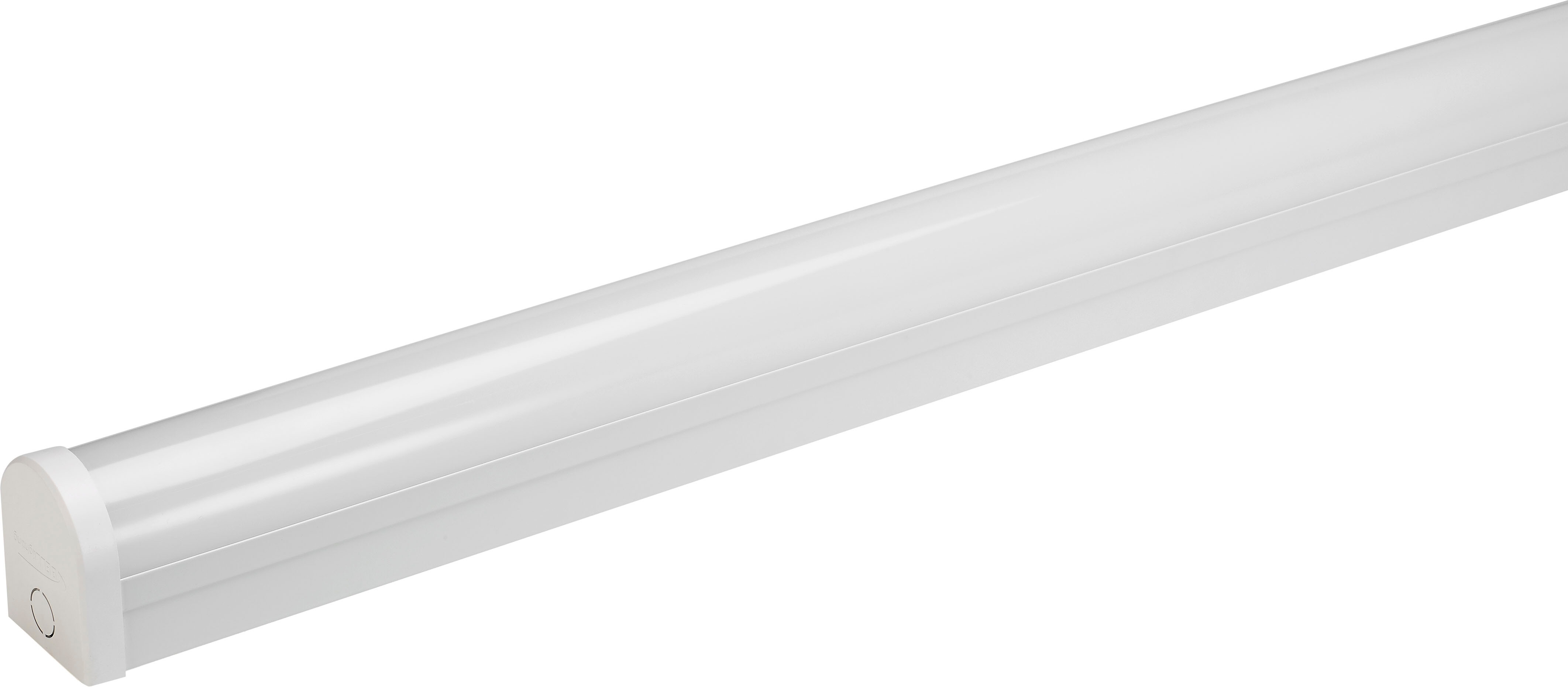

Product Image
