Ultra CCT V2

Ultra 22/27/33/40W Wattage Switchable LED CCT Integrated 4ft Batten

Code

10278V2

Technical Specification

Volts (V)

220/240

Watts (W)

22/27/33/40

Colour Temp (K)

3000/4000/6000

Lumens (lm)

22W = 3458 (3000K) / 3699 (4000K) / 3539 (6000K) - 27W = 4244 (3000K) / 4539 (4000K) / 4343 (6000K) - 33W = 5188 (3000K) / 5548 (4000K) / 5308 (6000K) - 40W = 6288 (3000K) / 6725 (4000K) / 6434 (6000K)

The Ultra LED CCT Batten is a versatile general-purpose fitting. The Ultra CCT takes the reliable features of the standard Ultra Batten and combines these with the additional benefits of selectable colour temperature and selectable wattage. Overall, the Ultra CCT Batten provides a stock friendly solution for wholesalers and contractors alike.

Download Specification

Full Specification

Name

Ultra 22/27/33/40W Wattage Switchable LED CCT Integrated 4ft Batten

Commodity Code

9405423100

Country Of Origin

UNSPSC Code

39111544

Volts (V)

220/240

Watts (W)

22/27/33/40

Colour Temp (K)

3000/4000/6000

Candelas (cd)

850-1600

Equivalent Watts (W)

120

Life Hours

50000

Beam Angle

120°

CRI (Ra)

Guarantee

7 Years

Switching Cycles

50000

Frequency (Hz)

50/60

LED Drive Current

350mA

Energy Consumption (kWh/1000h)

IP Rating

IP20

Height (mm)

Length (mm)

1170

Individual Product Weight (kg)

1.25

Single Carton Weight (KG)

1.45

Single Carton Height (mm)

1175

Single Carton Width (mm)

Single Carton Depth (mm)

Individual Volume

0.005728125

Outer Box Weight (kg)

Outer Box Qty

Outer Box Height (mm)

1190

Outer Box Width (mm)

350

Outer Box Depth (mm)

165

Outer Box Volume

0.0687225

EAN

5013588001180

Product Category

LED Luminaires - Plastic

Product Application

LED Batten

Depth (mm)

Outer Carton Barcode

10278V2000004

Lumens (lm)

Emergency Lumen Output (lm)

393 (3000K) / 420 (4000K) / 402 (6000K) - When used with 10281V2

Emergency Wattage

2.5 - When used with 10281V2

Lumens per Watt (lm/W)

157-168

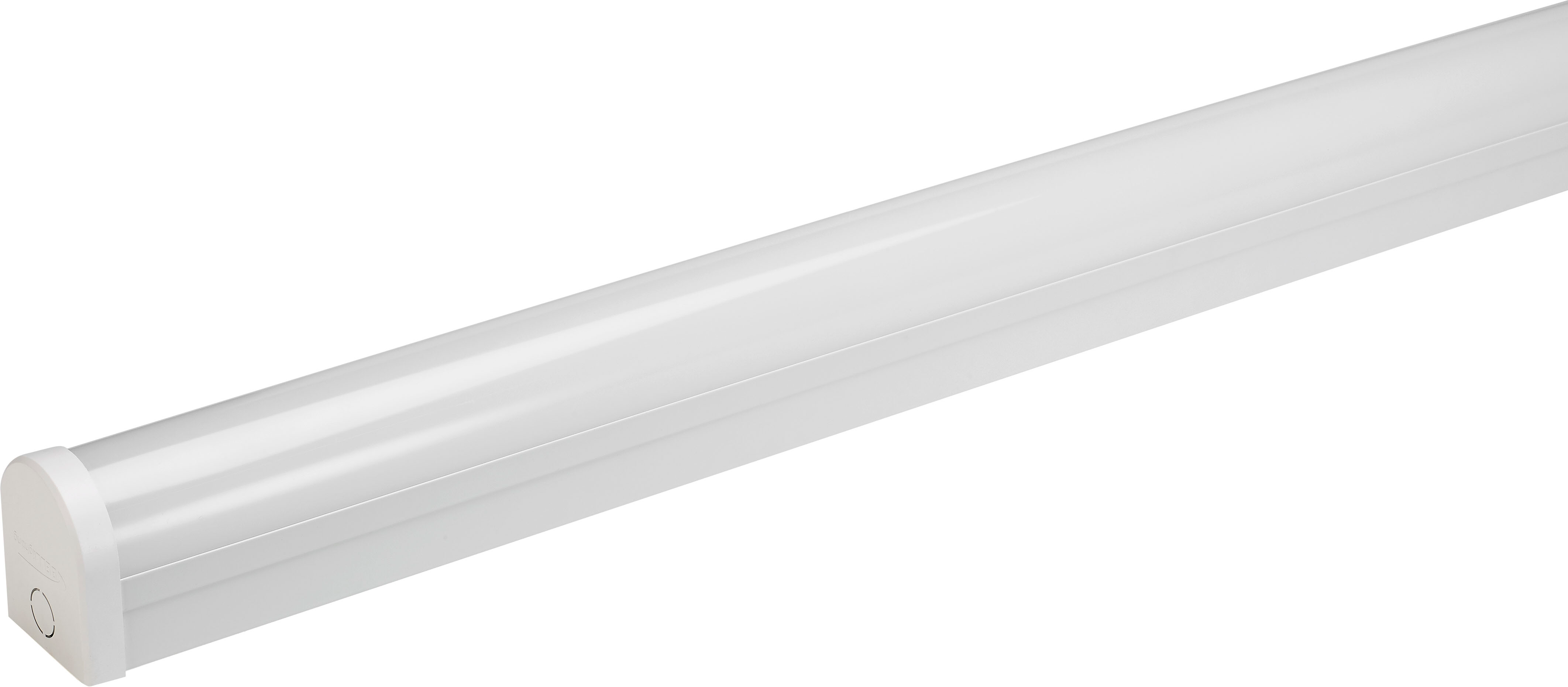

Product Image
