Ultra CCT V2

Ultra 32/40/47/60W Wattage Switchable LED CCT Integrated 5ft Batten

Code

10279V2

Next Delivery

27/05/2025 - 2,440 items

Technical Specification

Volts (V)

220/240

Watts (W)

32/40/47/60

Colour Temp (K)

3000/4000/6000

Lumens (lm)

32W = 5006 (3000K) / 5404 (4000K) / 5187 (6000K) - 40W = 6258 (3000K) / 6755 (4000K) / 6484 (6000K) - 47W = 7353 (3000K) / 7937 (4000K) / 7619 (6000K) - 60W = 9387 (3000K) / 10133 (4000K) / 9726 (6000K)

The Ultra LED CCT Batten is a versatile general-purpose fitting. The Ultra CCT takes the reliable features of the standard Ultra Batten and combines these with the additional benefits of selectable colour temperature and selectable wattage. Overall, the Ultra CCT Batten provides a stock friendly solution for wholesalers and contractors alike.

Download Specification

Full Specification

Name

Ultra 32/40/47/60W Wattage Switchable LED CCT Integrated 5ft Batten

Commodity Code

9405423100

Country Of Origin

UNSPSC Code

39111544

Volts (V)

220/240

Watts (W)

32/40/47/60

Colour Temp (K)

3000/4000/6000

Candelas (cd)

1250-2300

Equivalent Watts (W)

180

Life Hours

50000

Beam Angle

120°

CRI (Ra)

Guarantee

7 Years

Switching Cycles

50000

Frequency (Hz)

50/60

LED Drive Current

350mA

Energy Consumption (kWh/1000h)

IP Rating

IP20

Height (mm)

Length (mm)

1470

Individual Product Weight (kg)

1.6

Single Carton Weight (KG)

1.85

Single Carton Height (mm)

1475

Single Carton Width (mm)

Single Carton Depth (mm)

Individual Volume

0.007190625

Outer Box Weight (kg)

Outer Box Qty

Outer Box Height (mm)

1490

Outer Box Width (mm)

285

Outer Box Depth (mm)

165

Outer Box Volume

0.07006725

EAN

5013588001197

Product Category

LED Luminaires - Plastic

Product Application

LED Batten

Depth (mm)

Outer Carton Barcode

10279V2000004

Emergency Lumen Output (lm)

393 (3000K) / 420 (4000K) / 402 (6000K) - When used with 10281V2

Emergency Wattage

2.5 - When used with 10281V2

Lumens (lm)

Lumens per Watt (lm/W)

156-169

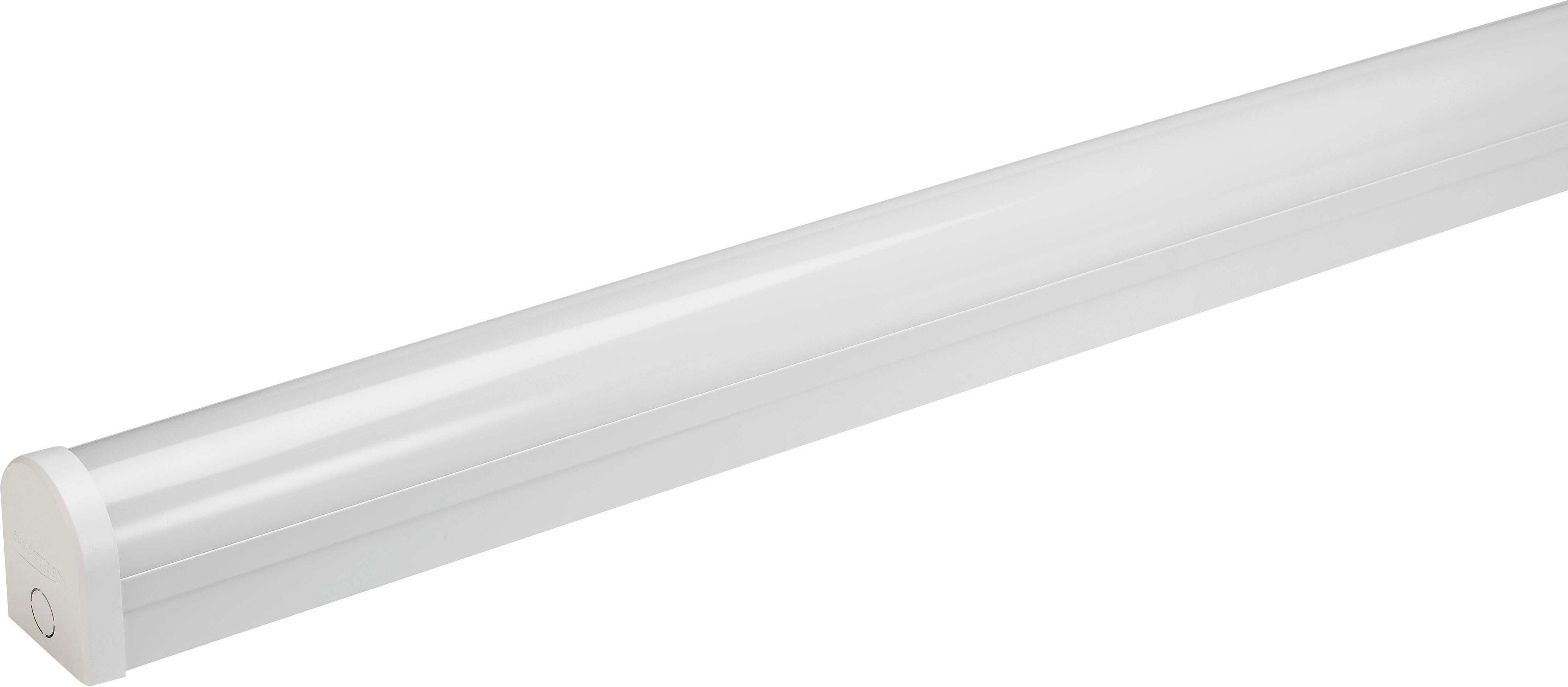

Product Image
