Ultra CCT V2

Ultra 46/54/67/80W Wattage Switchable LED CCT Integrated 6ft Batten

Code
10280V2
Technical Specification
Volts (V)
220/240
Watts (W)
46/54/67/80
Colour Temp (K)
3000/4000/6000
Lumens (lm)
46W = 7150 (3000K) / 7702 (4000K) / 7206 (6000K) - 54W = 8393 (3000K) / 9041 (4000K) / 8459 (6000K) - 67W = 10414 (3000K) / 11218 (4000K) / 10496 (6000K) - 80W = 12435 (3000K) / 13395 (4000K) / 12532 (6000K)
The Ultra LED CCT Batten is a versatile general-purpose fitting. The Ultra CCT takes the reliable features of the standard Ultra Batten and combines these with the additional benefits of selectable colour temperature and selectable wattage. Overall, the Ultra CCT Batten provides a stock friendly solution for wholesalers and contractors alike.
Download Specification
Full Specification
Name
Ultra 46/54/67/80W Wattage Switchable LED CCT Integrated 6ft Batten
Commodity Code
9405423100
Country Of Origin
CN
UNSPSC Code
39111544
Volts (V)
220/240
Watts (W)
46/54/67/80
Colour Temp (K)
3000/4000/6000
Candelas (cd)
1850-3000
Equivalent Watts (W)
240
Life Hours
50000
Beam Angle
120°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
50000
Frequency (Hz)
50/60
LED Drive Current
550mA
Energy Consumption (kWh/1000h)
80
IP Rating
IP20
Height (mm)
70
Length (mm)
1755
Individual Product Weight (kg)
1.9
Single Carton Weight (KG)
2.2
Single Carton Height (mm)
1742
Single Carton Width (mm)
65
Single Carton Depth (mm)
75
Individual Volume
0.00849225
Outer Box Weight (kg)
12.9
Outer Box Qty
4
Outer Box Height (mm)
1755
Outer Box Width (mm)
215
Outer Box Depth (mm)
165
Outer Box Volume
0.062258625
EAN
5013588001203
Product Category
LED Luminaires - Plastic
Product Application
LED Batten
Depth (mm)
61
Outer Carton Barcode
10280V2000004
Emergency Lumen Output (lm)
393 (3000K) / 420 (4000K) / 402 (6000K) - When used with 10281V2
Emergency Wattage
2.5 - When used with 10281V2
Lumens (lm)
46W = 7150 (3000K) / 7702 (4000K) / 7206 (6000K) - 54W = 8393 (3000K) / 9041 (4000K) / 8459 (6000K) - 67W = 10414 (3000K) / 11218 (4000K) / 10496 (6000K) - 80W = 12435 (3000K) / 13395 (4000K) / 12532 (6000K)
Lumens per Watt (lm/W)
155-167

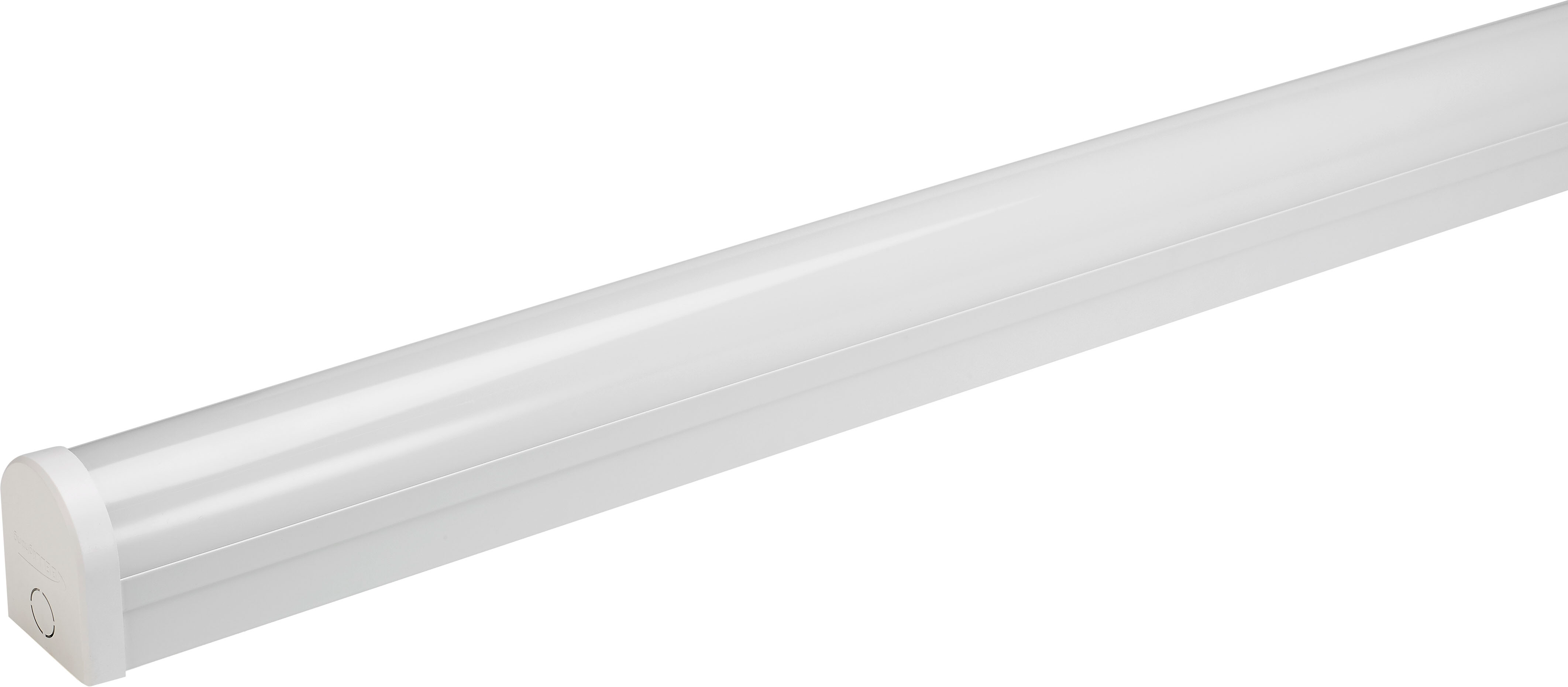

Product Image
