Ultra CCT

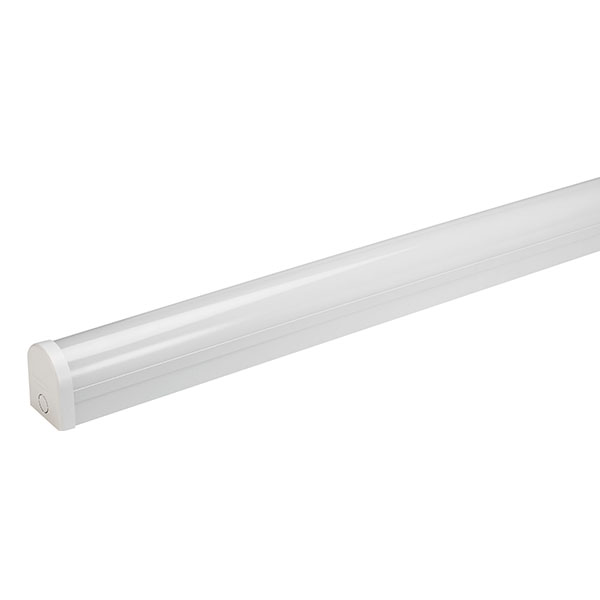

Ultra 30/60W Wattage Switchable LED CCT Integrated 5ft Batten

Code
10279
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:
10279V2 - Ultra 32/40/47/60W Wattage Switchable LED CCT Integrated 5ft Batten View product
Technical Specification
Volts (V)
220/240
Watts (W)
30/60
Colour Temp (K)
3000/4000/6000
Lumens (lm)
30W = 5075 (3000K) / 5441 (4000K) / 5165 (6000K) - 60W = 9416 (3000K) / 10465 (4000K) / 9606 (6000K)
The Ultra LED CCT Batten is a versatile general-purpose fitting. The Ultra CCT takes the reliable features of the standard Ultra Batten and combines these with the additional benefits of selectable colour temperature and selectable wattage. Overall, the Ultra CCT Batten provides a stock friendly solution for wholesalers and contractors alike.
Quantity
Download Specification
Full Specification
Downloads
Name
Ultra 30/60W Wattage Switchable LED CCT Integrated 5ft Batten
Volts (V)
220/240
Watts (W)
30/60
Colour Temp (K)
3000/4000/6000
Lumens (lm)
30W = 5075 (3000K) / 5441 (4000K) / 5165 (6000K) - 60W = 9416 (3000K) / 10465 (4000K) / 9606 (6000K)
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
IP Rating
IP20
Country Of Origin
CN
Individual Product Weight (kg)
1.88
Single Carton Weight (KG)
2.1
Single Carton Height (mm)
1540
Single Carton Width (mm)
90
Single Carton Depth (mm)
80
Outer Box Weight (kg)
9.07
Outer Box Height (mm)
1550
Outer Box Width (mm)
170
Outer Box Depth (mm)
205
Plastic Packaging Weight (kg)
0.01
Commodity Code
9405423100
Individual Volume
0.01109
Outer Box Volume
0.05402
Outer Box Qty
4
EAN
5013588102795
UNSPSC Code
39111544
Height (mm)
82
Impact Protection
IK8
Length (mm)
1530
Candelas (cd)
1030-1900
Lumens per Watt (lm/W)
156-181
Product Category
LED Luminaires - Plastic
Product Application
LED Batten
Depth (mm)
69
Outer Carton Barcode
1027900000004
Energy Consumption (kWh/1000h)
60
Catalogue Page

Instructions

Photometric Data

Product Image
