Ultra CCT V2 Casambi

Ultra 54W LED CCT 6ft Batten - Casambi Dimming Enabled

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
82213
Technical Specification
Volts (V)
220/240
Colour Temp (K)
3000/4000/6000
Watts (W)
54
Lumens (lm)
8393 (3000K) / 9041 (4000K) / 8459 (6000K)
The Ultra LED CCT Batten is a versatile general-purpose fitting. The Ultra CCT Batten provides a stock friendly solution for wholesalers and contractors alike.
Download Specification
Full Specification
Name
Ultra 54W LED CCT 6ft Batten - Casambi Dimming Enabled
EAN
5063695002716
Country Of Origin
CN
Volts (V)
220/240
Colour Temp (K)
3000/4000/6000
Watts (W)
54
Life Hours
50000
Beam Angle
120°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
50000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
54
IP Rating
IP20
Product Category
LED Luminaires - Plastic
Product Application
LED Batten
Commodity Code
9405423100
UNSPSC Code
39111544
Length (mm)
1755
Height (mm)
70
Depth (mm)
61
Individual Product Weight (kg)
1.9
Single Carton Weight (KG)
2.2
Single Carton Height (mm)
1742
Single Carton Width (mm)
65
Single Carton Depth (mm)
75
Individual Volume
0.00849225
Outer Box Weight (kg)
12.9
Outer Box Height (mm)
1755
Outer Box Width (mm)
215
Outer Box Depth (mm)
165
Outer Box Qty
4
Outer Box Volume
0.062258625
Lumens (lm)
8393 (3000K) / 9041 (4000K) / 8459 (6000K)
Lumens per Watt (lm/W)
155-167
Impact Protection
IK8

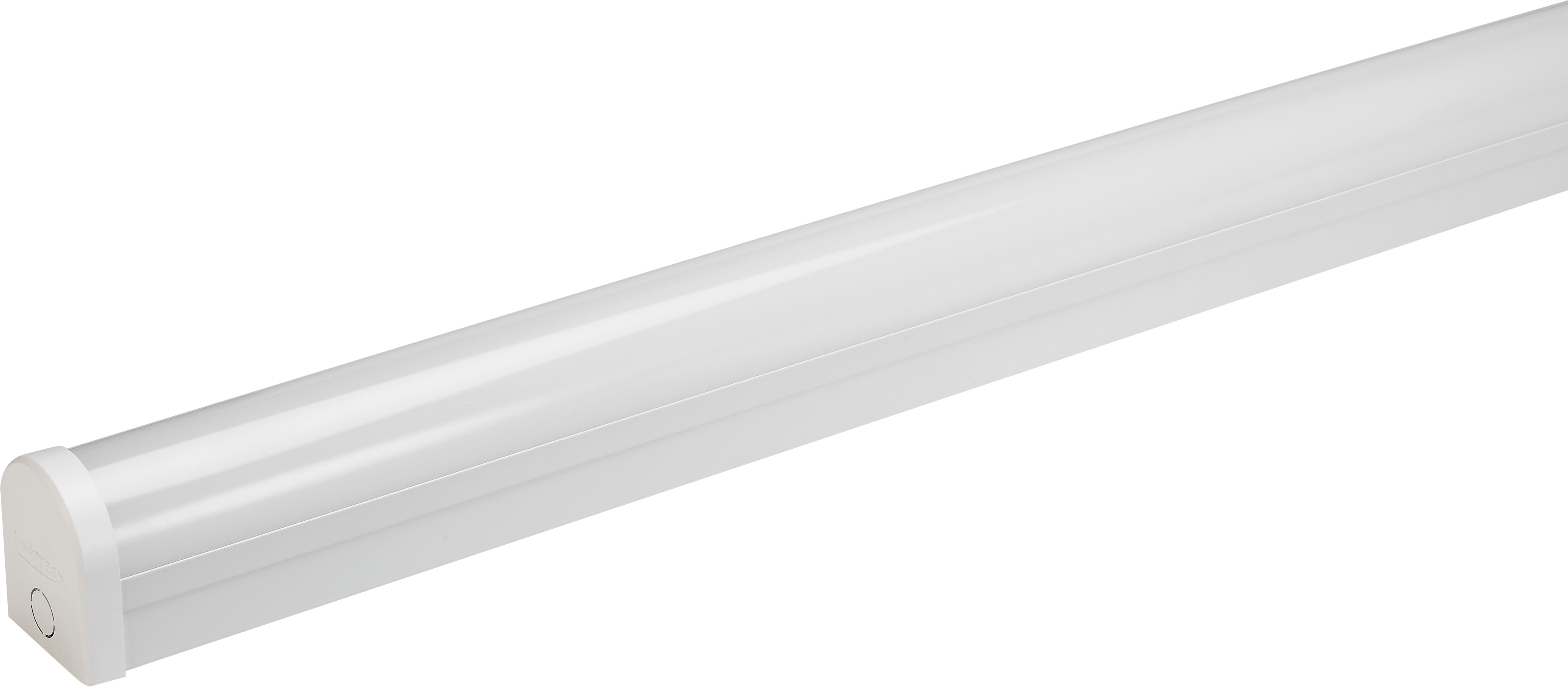

Product Image
