Ultra CCT

Ultra 40/80W Wattage Switchable LED CCT Integrated 6ft Batten

Code
10280
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:

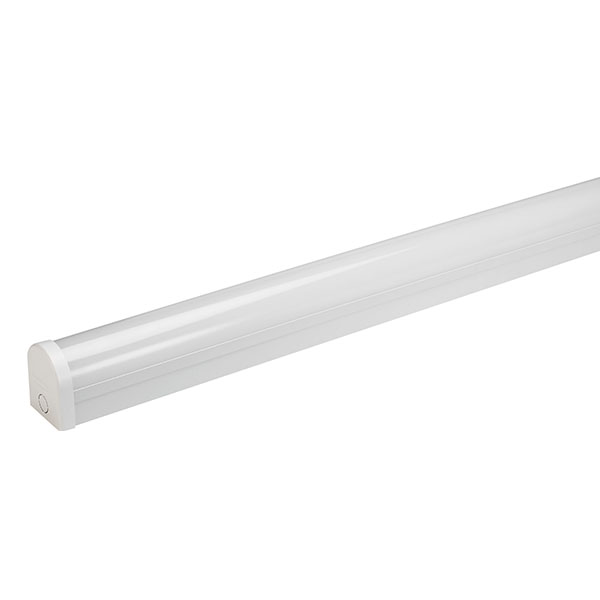

10280V2 - Ultra 46/54/67/80W Wattage Switchable LED CCT Integrated 6ft Batten View product
Technical Specification
Volts (V)
220/240
The Ultra LED CCT Batten is a versatile general-purpose fitting. The Ultra CCT takes the reliable features of the standard Ultra Batten and combines these with the additional benefits of selectable colour temperature and selectable wattage. Overall, the Ultra CCT Batten provides a stock friendly solution for wholesalers and contractors alike.
Quantity
Download Specification
Full Specification
Downloads
Name
Ultra 40/80W Wattage Switchable LED CCT Integrated 6ft Batten
Volts (V)
220/240
Life Hours
50000
CRI (Ra)
85
Switching Cycles
25000
Frequency (Hz)
50/60
IP Rating
IP20
Individual Product Weight (kg)
2.24
Outer Box Weight (kg)
10.86
Outer Box Height (mm)
1820
Outer Box Width (mm)
170
Outer Box Depth (mm)
205
Commodity Code
9405423100
Outer Box Volume
0.06343
Outer Box Qty
4
EAN
5013588102801
Height (mm)
82
Length (mm)
1795
Lumens per Watt (lm/W)
155-180
Depth (mm)
69
Energy Consumption (kWh/1000h)
80
Wattage (W)
40/80
Colour Temperature (K)
3000/4000/6000
Candelas
1320-2530
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
2.49
Single box Height (mm)
1805
Single box Width (mm)
90
Single Box Depth (mm)
80
Single Box Volume
0.013
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Battens
EDATA Product Range
Ultra
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
40W = 6698 / 7181 (4000K) / 6817 (6000K) - 80W = 12428 (3000K) / 13813 (4000K) / 12678 (6000K)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
7 Years (2 Years On Site)
