Ultra Endure Emergency

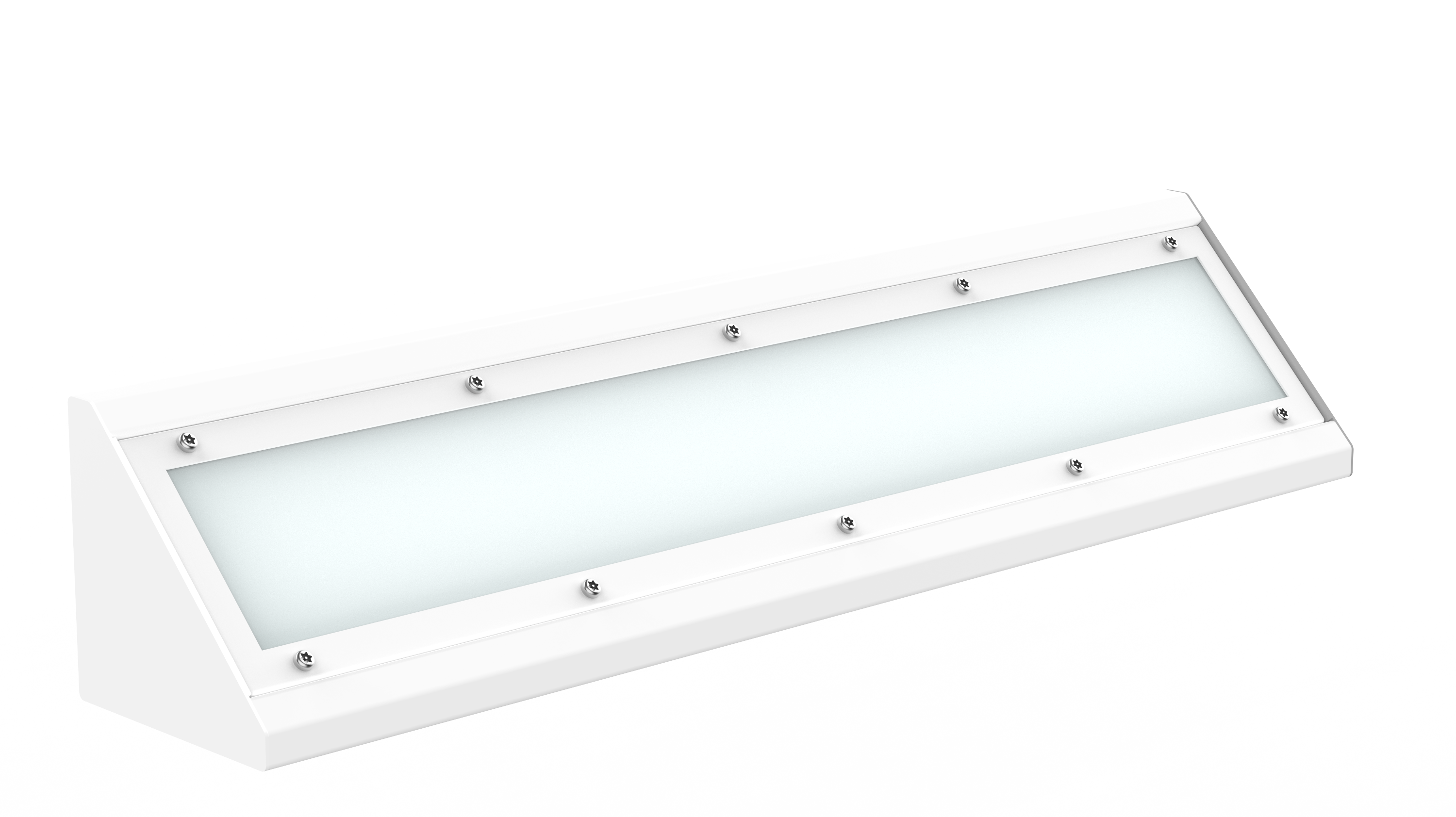

Ultra Endure 25-60W LED CCT Anti-Ligature 4ft White Batten Cornice in Emergency

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
70179
Technical Specification
Volts (V)
220/240
The Ultra Endure LED Batten is CCT and anti-ligature, available in both Black and White. Also available in emergency and with DALI Dimming.
Download Specification
Full Specification
Downloads
Name
Ultra Endure 25-60W LED CCT Anti-Ligature 4ft White Batten Cornice in Emergency
Volts (V)
220/240
Life Hours
100000
Beam Angle
100°
CRI (Ra)
85
Guarantee
10 Years
Switching Cycles
300000
Frequency (Hz)
50/60
LED Drive Current
188-450mA
Energy Consumption (kWh/1000h)
60
IP Rating
IP65
Height (mm)
120
Width (mm)
167
Length (mm)
1200
Commodity Code
9405423100
EAN
5013588701790
Outer Box Qty
2
Operating Temperature
-5°C - +35°C
Emergency Lumen Output (lm)
304 (3000K) / 332 (4000K) / 311 (6000K)
Wattage (W)
25/33/41/55/60
Equivalent Wattage (W)
40/54/66/90
Colour Temperature (K)
3000/4000/6000
Candelas
1130-2756
IK Rating
IK10
Minimum Order Quantity
1
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
25W = 3036 (3000K) / 3252 (4000K) / 3108 (6000K) - 35W = 4007 (3000K) / 4293 (4000K) / 4103 (6000K) - 45W = 4979 (3000K) / 5334 (4000K) / 5097 (6000K) - 55W = 6679 (3000K) / 7155 (4000K) / 6838 (6000K) - 60W = 7286 (3000K) / 7805 (4000K) / 7459 (6000K)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
Catalogue Page

Instructions

Photometric Data

Product Image
