Ultra Endure Emergency

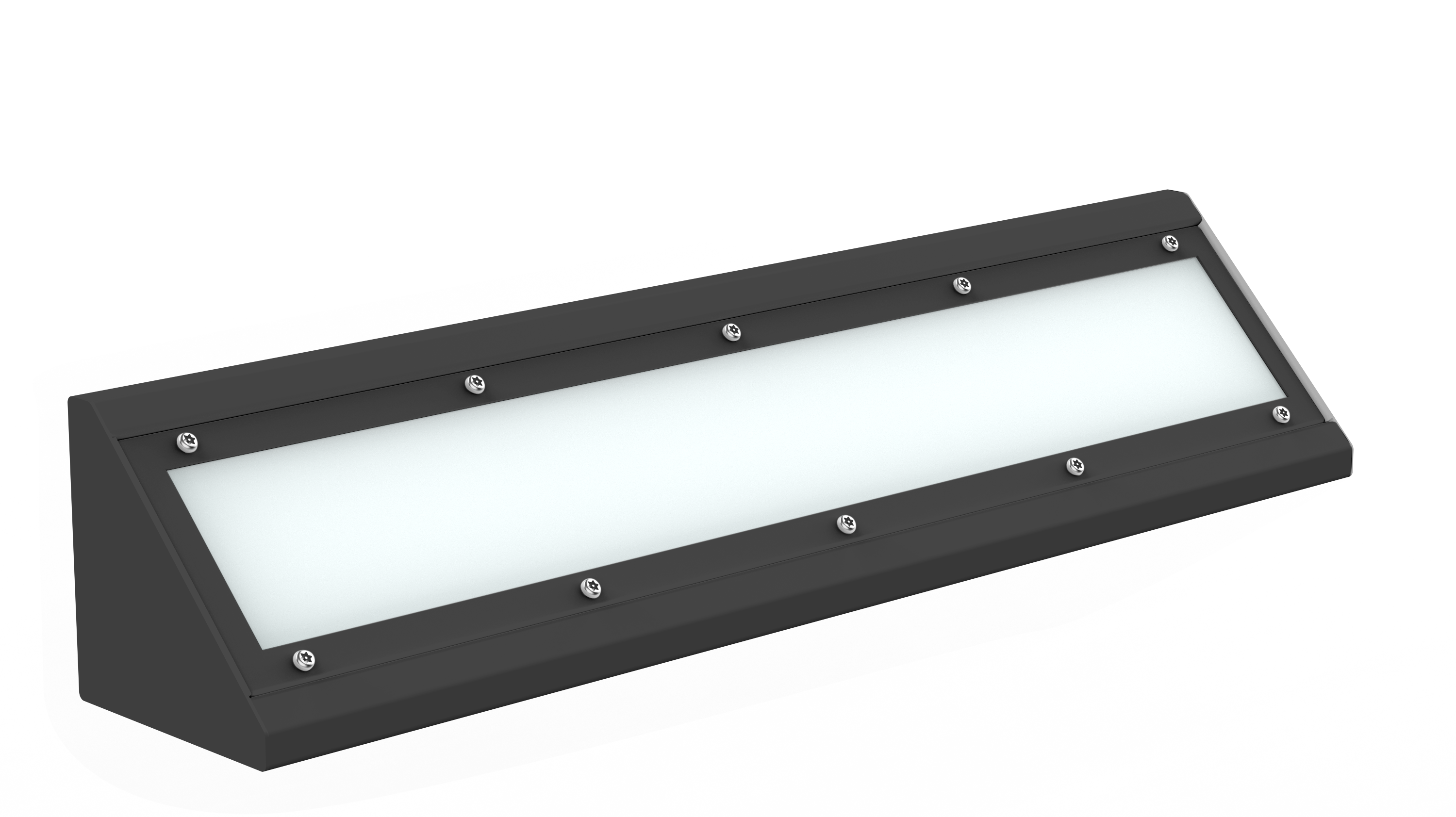

Ultra Endure 25-60W LED CCT Anti-Ligature 4ft Black Batten Cornice in Emergency with Dali Dimming

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
70189
Technical Specification
Volts (V)
220/240
Watts (W)
25/33/41/55/60
Colour Temp (K)
3000/4000/6000
Lumens (lm)
25W = 3036 (3000K) / 3232 (4000K) / 3123 (6000K) - 35W = 4007 (3000K) / 4266 (4000K) / 4122 (6000K) - 45W = 4979 (3000K) / 5300 (4000K) / 5121 (6000K) - 55W = 6679 (3000K) / 7110 (4000K) / 6870 (6000K) - 60W = 7286 (3000K) / 7756 (4000K) / 7495 (6000K)
The Ultra Endure LED Batten is CCT and anti-ligature, available in both Black and White. Also available in emergency and with Dali Dimming.
Download Specification
Full Specification
Downloads
Name
Ultra Endure 25-60W LED CCT Anti-Ligature 4ft Black Batten Cornice in Emergency with Dali Dimming
Volts (V)
220/240
Watts (W)
25/33/41/55/60
Colour Temp (K)
3000/4000/6000
Dimming Option
Dali
Lumens (lm)
25W = 3036 (3000K) / 3232 (4000K) / 3123 (6000K) - 35W = 4007 (3000K) / 4266 (4000K) / 4122 (6000K) - 45W = 4979 (3000K) / 5300 (4000K) / 5121 (6000K) - 55W = 6679 (3000K) / 7110 (4000K) / 6870 (6000K) - 60W = 7286 (3000K) / 7756 (4000K) / 7495 (6000K)
Candelas (cd)
1130-2756
Equivalent Watts (W)
40/54/66/90
Life Hours
100000
Beam Angle
100°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
300000
Frequency (Hz)
50/60
LED Drive Current
188-450mA
Energy Consumption (kWh/1000h)
60
IP Rating
IP65
Height (mm)
120
Width (mm)
167
Length (mm)
1200
Emergency Lumen Output (lm)
304 (3000K) / 330 (4000K) / 312 (6000K)
Product Category
LED Luminaires - Plastic
Product Application
Anti-Ligature Batten
Commodity Code
9405423100
EAN
5013588701899
Country Of Origin
CN
UNSPSC Code
39111544
Outer Box Qty
2
Impact Protection
IK10
Lumens per Watt (lm/W)
111-130
