Ultra Endure Standard

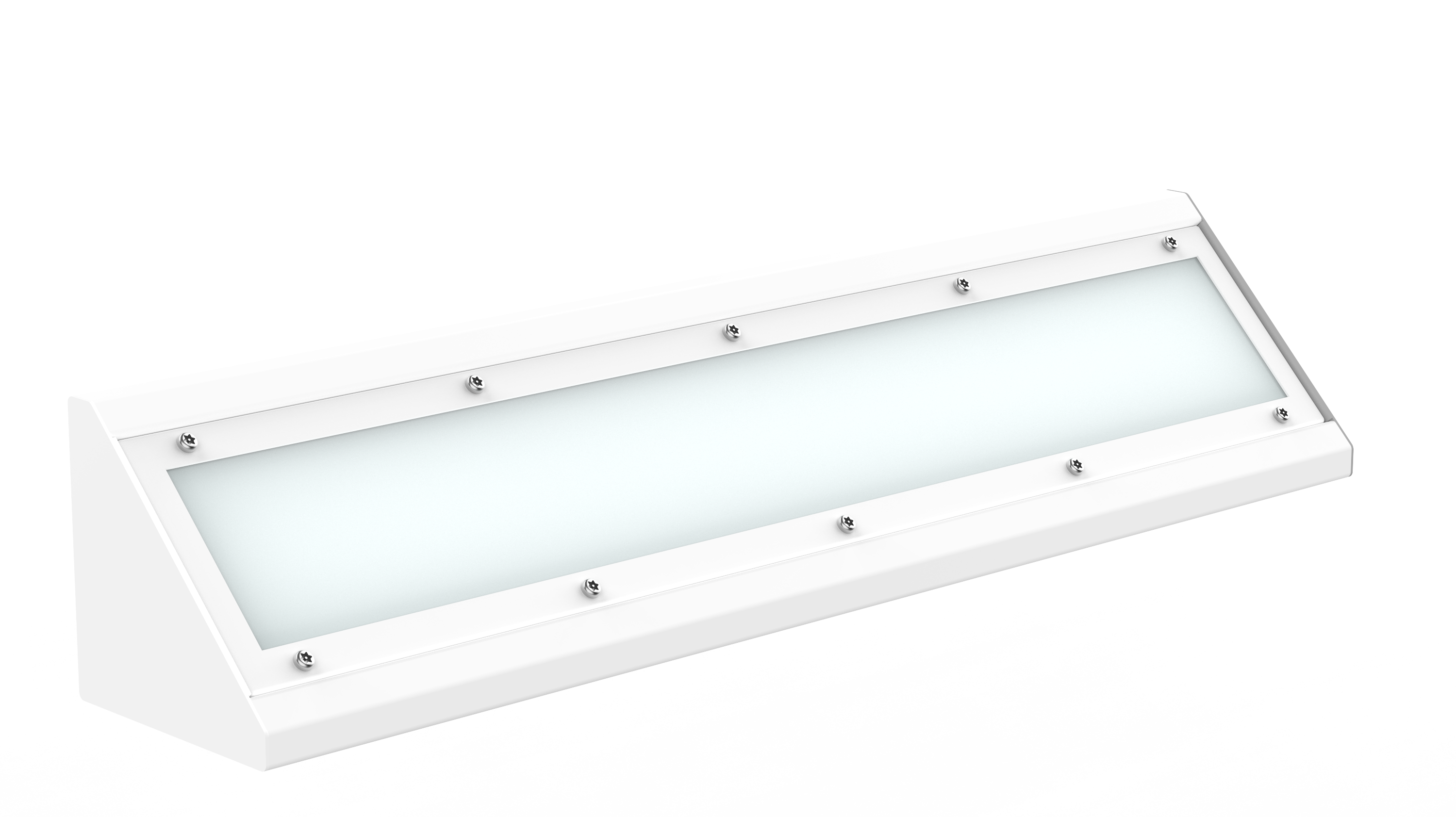

Ultra Endure 25-60W LED CCT Anti-Ligature 5ft White Batten Cornice

Code
70182
Technical Specification
Volts (V)
220/240
The Ultra Endure LED Batten is CCT and anti-ligature, available in both Black and White. Also available in emergency and with DALI Dimming.
Download Specification
Full Specification
Downloads
Name
Ultra Endure 25-60W LED CCT Anti-Ligature 5ft White Batten Cornice
Commodity Code
9405423100
EAN
5013588701820
Volts (V)
220/240
Life Hours
100000
Beam Angle
100°
CRI (Ra)
85
Switching Cycles
300000
Frequency (Hz)
50/60
LED Drive Current
188-450mA
IP Rating
IP65
Height (mm)
120
Width (mm)
167
Length (mm)
1500
Individual Product Weight (kg)
7.75
Outer Box Weight (kg)
15
Outer Box Height (mm)
300
Outer Box Width (mm)
227
Outer Box Depth (mm)
1610
Outer Box Qty
2
Outer Box Volume
0.109641
Guarantee
10 Years
Energy Consumption (kWh/1000h)
60
Operating Temperature
-30°C - +35°C
Lumens per Watt (lm/W)
113-138
Wattage (W)
25/33/41/55/60
Equivalent Wattage (W)
40/54/66/90
Colour Temperature (K)
3000/4000/6000
Candelas
1130-2756
IK Rating
IK10
Minimum Order Quantity
1
Single Box Weight (kg)
8.05
Single box Height (mm)
212
Single box Width (mm)
148
Single Box Depth (mm)
1596
Single Box Volume
0.050076096
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Battens
EDATA Product Range
Ultra
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
25W = 3108 (3000K) / 3456 (4000K) / 3261 (6000K) - 35W = 4102 (3000K) / 4562 (4000K) / 4304 (6000K) - 45W = 5097 (3000K) / 5668 (4000K) / 5348 (6000K) - 55W = 6837 (3000K) / 7604 (4000K) / 7174 (6000K) - 60W = 7458 (3000K) / 8295 (4000K) / 7826 (6000K)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
