Ultra Endure Standard

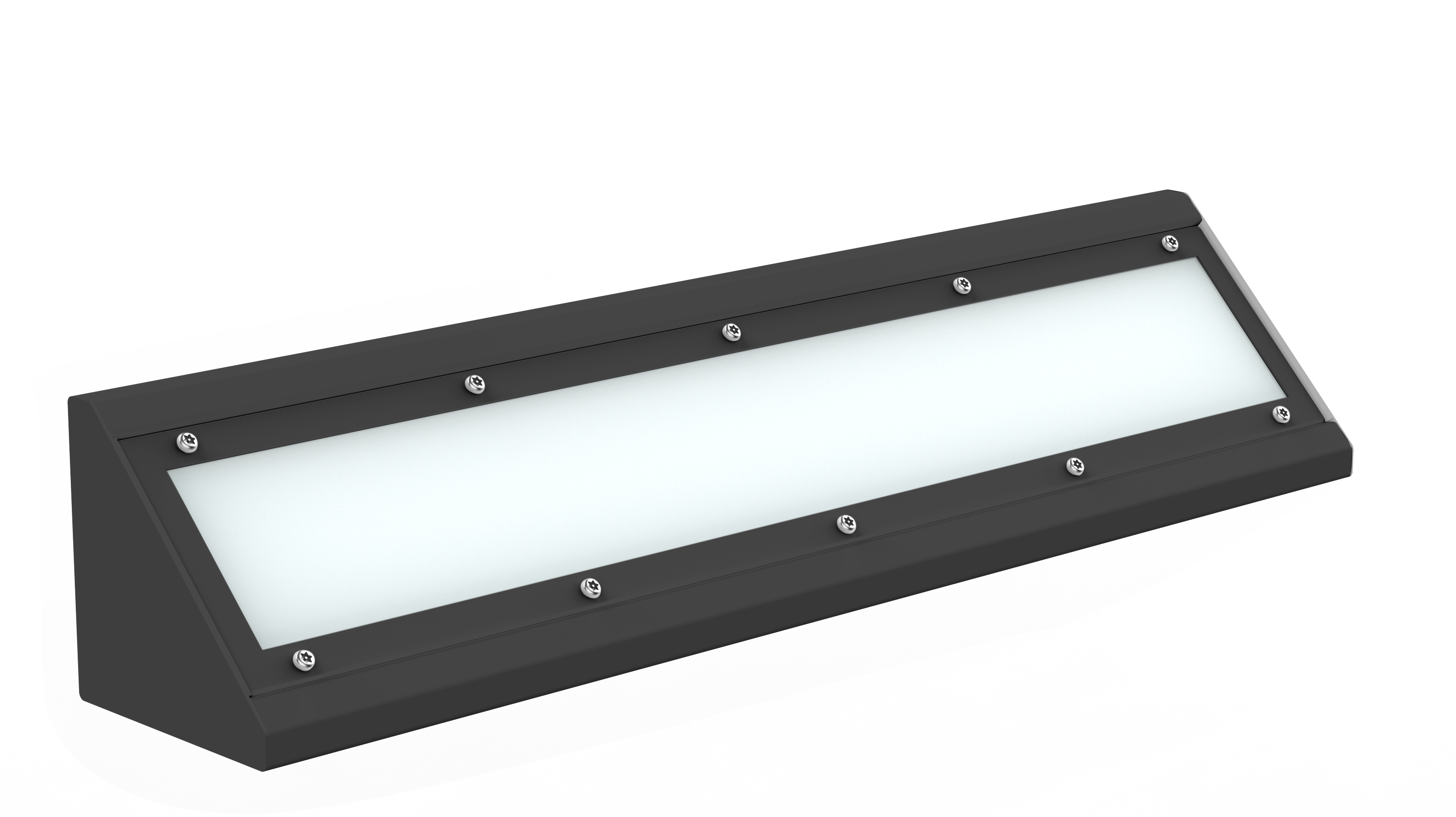

Ultra Endure 25-60W LED CCT Anti-Ligature 5ft Black Batten Cornice

Code
70190
Technical Specification
Volts (V)
220/240
Watts (W)
25/33/41/55/60
Colour Temp (K)
3000/4000/6000
Lumens (lm)
2880-7150
Energy Rating
D
Download Specification
Full Specification
Downloads
Name
Ultra Endure 25-60W LED CCT Anti-Ligature 5ft Black Batten Cornice
Commodity Code
9405423100
Country Of Origin
CN
EAN
5013588701905
Volts (V)
220/240
Watts (W)
25/33/41/55/60
Colour Temp (K)
3000/4000/6000
Life Hours
100000
Beam Angle
100°
CRI (Ra)
80
Switching Cycles
300000
Frequency (Hz)
50/60
LED Drive Current
188-450mA
IP Rating
IP65
Height (mm)
120
Width (mm)
167
Length (mm)
1500
Individual Product Weight (kg)
7.75
Single Carton Weight (KG)
8.05
Single Carton Height (mm)
212
Single Carton Width (mm)
148
Single Carton Depth (mm)
1596
Individual Volume
0.050076096
Outer Box Weight (kg)
15
Outer Box Height (mm)
300
Outer Box Width (mm)
227
Outer Box Depth (mm)
1610
Inner Box Qty
1
Outer Box Qty
2
Outer Box Volume
0.109641
Guarantee
7 Years
UNSPSC Code
39111544
Lumens (lm)
2880-7150
Candelas (cd)
1130-2756
Equivalent Watts (W)
40/54/66/90
Energy Rating
D
Energy Consumption (kWh/1000h)
24-63
Lumens per Watt (lm/W)
115-119
Product Category
LED Luminaires - Plastic
Catalogue Page

Instructions
