Ultra Slim V2

Ultra Slim V2 28/42W LED Integrated Power Selectable 5ft Batten - 4000K

Code
10271V2
Technical Specification
Volts (V)
220/240
The Ultra Slim V2 LED Integrated Batten is a cost-effective shatterproof luminaire, ideal for domestic applications. The Ultra Slim V2's streamlined design gives the ability to seamlessly illuminate small spaces without the need for a large luminaire.
Download Specification
Full Specification
Downloads
Name
Ultra Slim V2 28/42W LED Integrated Power Selectable 5ft Batten - 4000K
Commodity Code
9405423100
EAN
5013588002002
Volts (V)
220/240
Life Hours
50000
Beam Angle
120°
CRI (Ra)
80
Switching Cycles
50000
Frequency (Hz)
50/60
LED Drive Current
165mA/245mA
Energy Consumption (kWh/1000h)
42
IP Rating
IP20
Height (mm)
26
Width (mm)
75
Length (mm)
1530
Electric Class
Class II
Individual Product Weight (kg)
0.57
Lumens per Watt (lm/W)
140
Outer Box Weight (kg)
0.8
Outer Box Height (mm)
1525
Outer Box Width (mm)
285
Outer Box Depth (mm)
180
Outer Box Qty
16
Outer Box Volume
0.078235
Guarantee
5 Years
Wattage (W)
28/42
Equivalent Wattage (W)
117
Colour Temperature (K)
4000
Single Box Weight (kg)
0.13
Single box Height (mm)
1510
Single box Width (mm)
79
Single Box Depth (mm)
33
Single Box Volume
0.00393657
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
UOM For Battery Weight
KG
Lumen output (lm)
3920 (28W) / 5880 (42W)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
LED Battens
EDATA Product Range
Ultra Slim
EDATA Quantity Interval
1
Minimum Order Quantity
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
Catalogue Page

Instructions

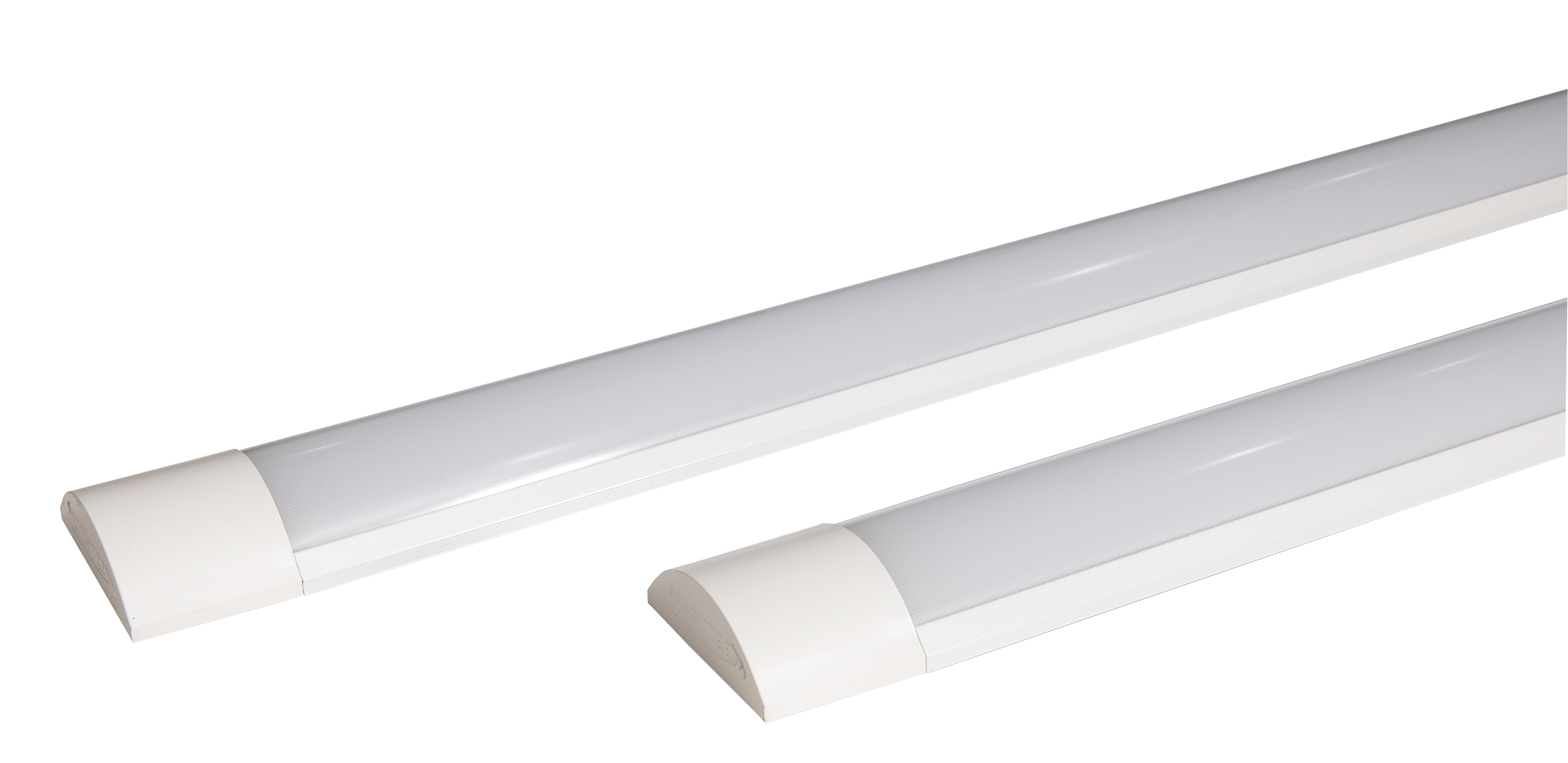

Product Image
