Ultra Slim V2

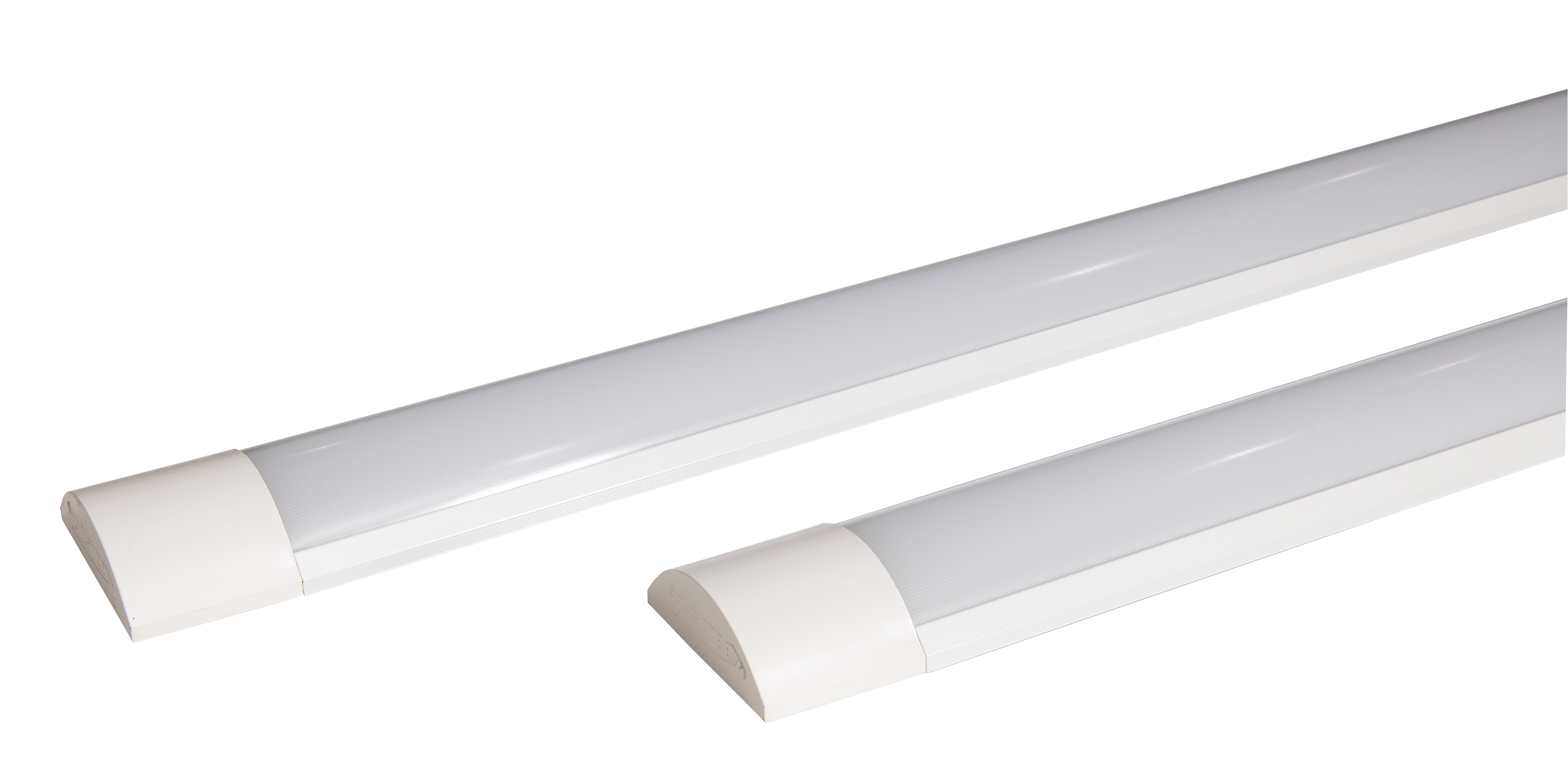

Ultra Slim V2 34/51W LED Integrated Power Selectable 6ft Batten - 4000K

Code
10272V2
Technical Specification
Volts (V)
220/240
The Ultra Slim V2 LED Integrated Batten is a cost-effective shatterproof luminaire, ideal for domestic applications. The Ultra Slim V2's streamlined design gives the ability to seamlessly illuminate small spaces without the need for a large luminaire.
Download Specification
Full Specification
Downloads
Name
Ultra Slim V2 34/51W LED Integrated Power Selectable 6ft Batten - 4000K
EAN
5013588001982
Commodity Code
9405423100
Volts (V)
220/240
Life Hours
50000
Beam Angle
120°
CRI (Ra)
80
Switching Cycles
50000
Frequency (Hz)
50/60
LED Drive Current
210mA/320mA
Energy Consumption (kWh/1000h)
51
IP Rating
IP20
Height (mm)
26
Width (mm)
75
Length (mm)
1850
Electric Class
Class II
Individual Product Weight (kg)
0.65
Lumens per Watt (lm/W)
140
Outer Box Weight (kg)
0.8
Outer Box Height (mm)
1825
Outer Box Width (mm)
250
Outer Box Depth (mm)
180
Outer Box Qty
14
Outer Box Volume
0.082125
Wattage (W)
34/51
Equivalent Wattage (W)
142
Colour Temperature (K)
4000
Single Box Weight (kg)
0.155
Single box Height (mm)
1810
Single box Width (mm)
79
Single Box Depth (mm)
33
Single Box Volume
0.00471867
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
UOM For Battery Weight
KG
Lumen output (lm)
4760 (34W) / 7140 (51W)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
LED Battens
EDATA Product Range
Ultra Slim
EDATA Quantity Interval
1
Minimum Order Quantity
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
5 Years
Linears
No
Skyline Target
No
Catalogue Page

Instructions

Product Image
