Ultra V2 Single - Emergency

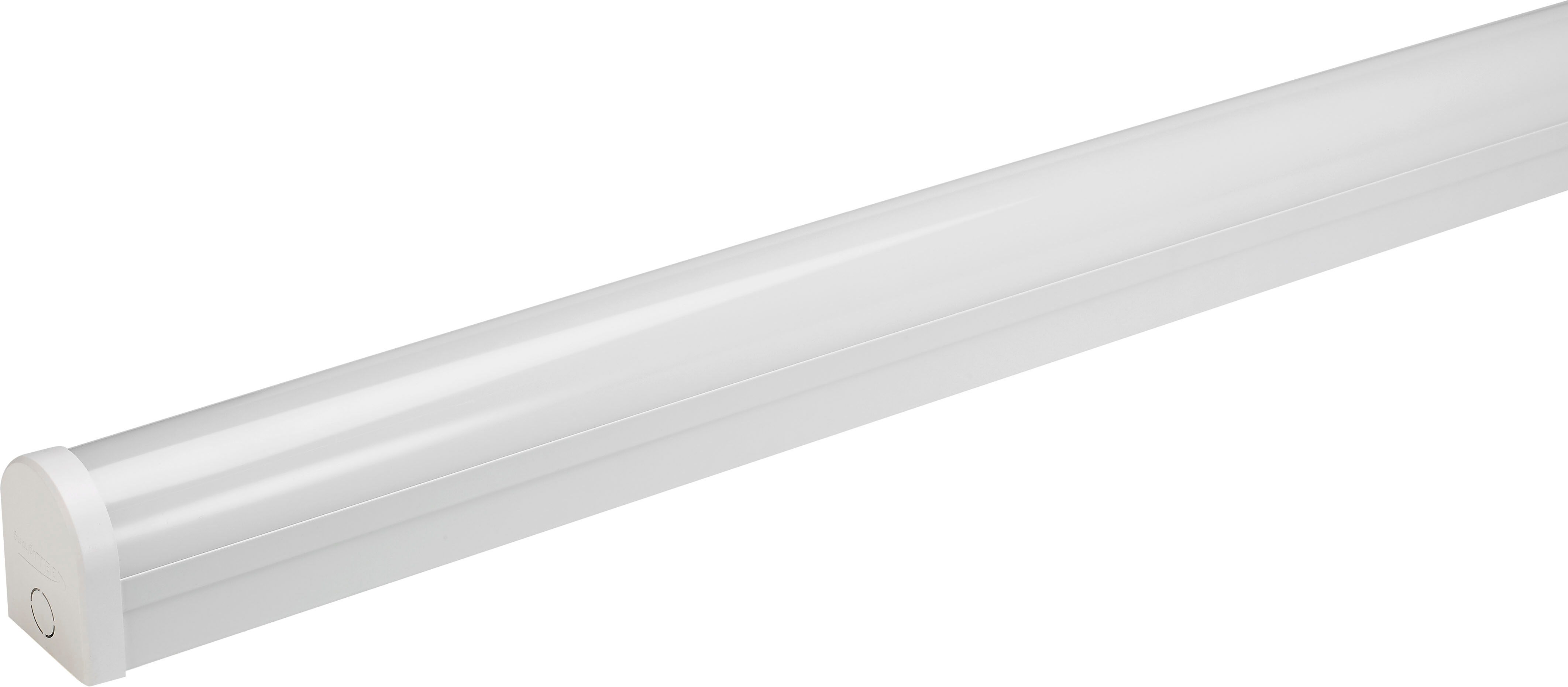

Ultra V2 30W LED Integrated 5ft Single Batten in Emergency with Microwave Sensor - 4000K

Code
10215V2
Technical Specification
Volts (V)
220/240
The Ultra Batten is a versatile general-purpose luminaire. With a sleek look, this Ultra Batten is an ideal candidate for office, classroom and corridor installations.
Download Specification
Full Specification
Downloads
Name
Ultra V2 30W LED Integrated 5ft Single Batten in Emergency with Microwave Sensor - 4000K
Commodity Code
9405423990
EAN
5013588000794
Volts (V)
220/240
Life Hours
50000
Beam Angle
120°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
50000
Frequency (Hz)
50/60
IP Rating
IP20
LED Drive Current
350mA
Energy Consumption (kWh/1000h)
30
Height (mm)
70
Length (mm)
1470
Individual Product Weight (kg)
2.1
Outer Box Qty
4
Outer Box Width (mm)
210
Outer Box Height (mm)
165
Outer Box Depth (mm)
1490
Outer Box Volume
0.0516285
Outer Box Weight (kg)
9.4
Lumens per Watt (lm/W)
150
Electric Class
Class I
Power Factor
>0.9
Primary Material
Steel
Operating Temperature
-5°C - +35°C
Depth (mm)
61
Wattage (W)
30
Colour Temperature (K)
4000
Candelas
2000
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
2.4
Single box Height (mm)
75
Single box Width (mm)
65
Single Box Depth (mm)
1475
Single Box Volume
0.007190625
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
UOM For Battery Weight
KG
Lumen output (lm)
4500
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
