Aqua Connect Standard

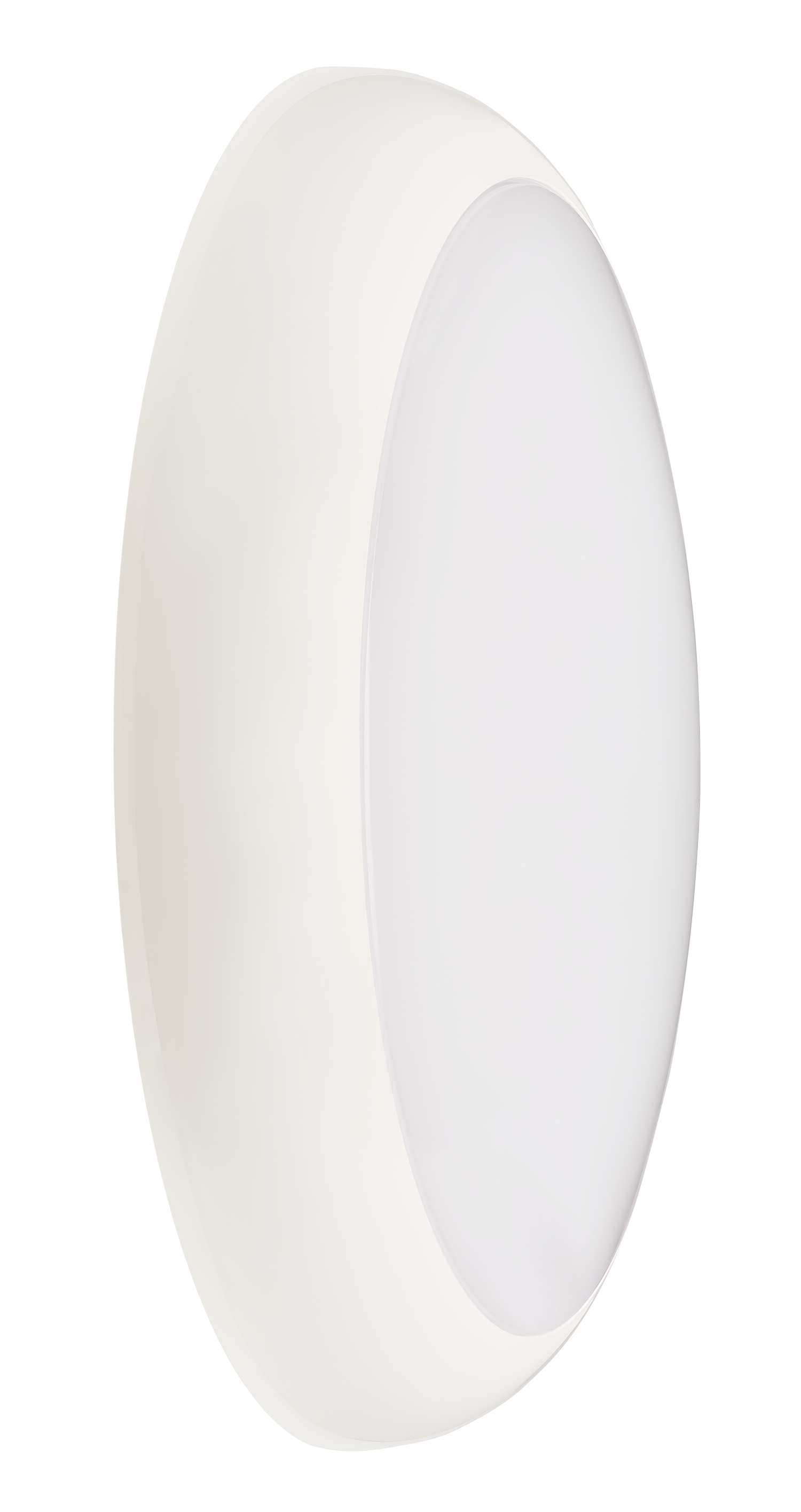

Aqua Connect LED 4CCT Wattage Switchable Bulkhead

Code
70200
Next Delivery
16/01/2026 - 3,700 items
Technical Specification
Volts (V)
220/240
The Aqua Connect is a convenient solution with multiple plug-in accessories which can be easily installed.
Download Specification
Full Specification
Downloads
Name
Aqua Connect LED 4CCT Wattage Switchable Bulkhead
EAN
5013588702001
Commodity Code
9405423100
Volts (V)
220/240
Life Hours
50000
Beam Angle
120º
CRI (Ra)
80
Switching Cycles
50000
Frequency (Hz)
50/60
LED Drive Current
112mA
Energy Consumption (kWh/1000h)
16
Lumens per Watt (lm/W)
120-140
IP Rating
IP65
Electric Class
Class II
Height (mm)
75
Diameter (mm)
325
Individual Product Weight (kg)
0.8
Outer Box Height (mm)
425
Outer Box Width (mm)
670
Outer Box Depth (mm)
340
Outer Box Qty
10
Outer Box Volume
0.096815
Guarantee
7 Years
Width (mm)
325
Primary Material
Polycarbonate
Operating Temperature
-20°C to +40°C / Emergency version min temp -5°C
Outer Box Weight (kg)
11
Wattage (W)
9/12/16
Equivalent Wattage (W)
16/28/38
Colour Temperature (K)
3000/4000/5000/6000
IK Rating
IK10
Minimum Order Quantity
1
Single Box Weight (kg)
1
Single box Height (mm)
330
Single box Width (mm)
330
Single Box Depth (mm)
80
Single Box Volume
0.008712
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
1080-2240
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Catalogue Page

Instructions

Photometric Data

Product Image
