Arial Ascent DALI

Arial Ascent 40W CCT Surface 5ft Linear - 75% Down 25% Up - Includes 1.5m Suspension Kit & Surface Mount Kit - DALI Dimmable

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
70115
Technical Specification
Volts (V)
220/240
The Arial Ascent is a linear fitting designed for various applications.
Download Specification
Full Specification
Name
Arial Ascent 40W CCT Surface 5ft Linear - 75% Down 25% Up - Includes 1.5m Suspension Kit & Surface Mount Kit - DALI Dimmable
Commodity Code
9405423100
EAN
5013588003733
Operating Temperature
-20°C to + 45°C
Volts (V)
220/240
Dimming Option
DALI
Life Hours
50000
Beam Angle
90°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
50000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
40
IP Rating
IP20
Height (mm)
37
Length (mm)
1574
Depth (mm)
186
Lumens per Watt (lm/W)
115-120
Individual Product Weight (kg)
4.8
Wattage (W)
40
Colour Temperature (K)
3000/4000/6000
Single Box Weight (kg)
5.3
Single box Height (mm)
1610
Single box Width (mm)
230
Single Box Depth (mm)
65
Single Box Volume
0.0240695
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
4607 (3000K) / 4755 (4000K) / 4646 (6000K)
Dimmable
Yes
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes

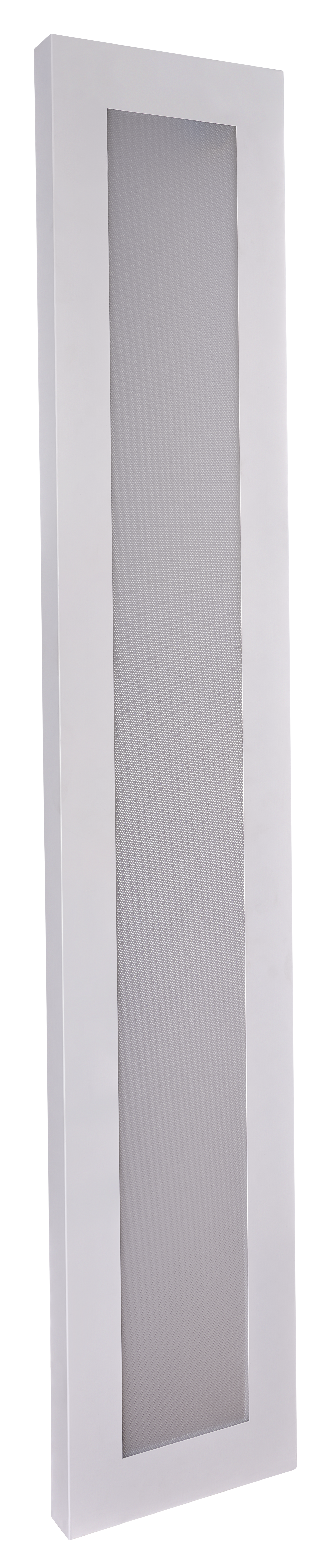

Product Image
