Arial Endure 1-10V

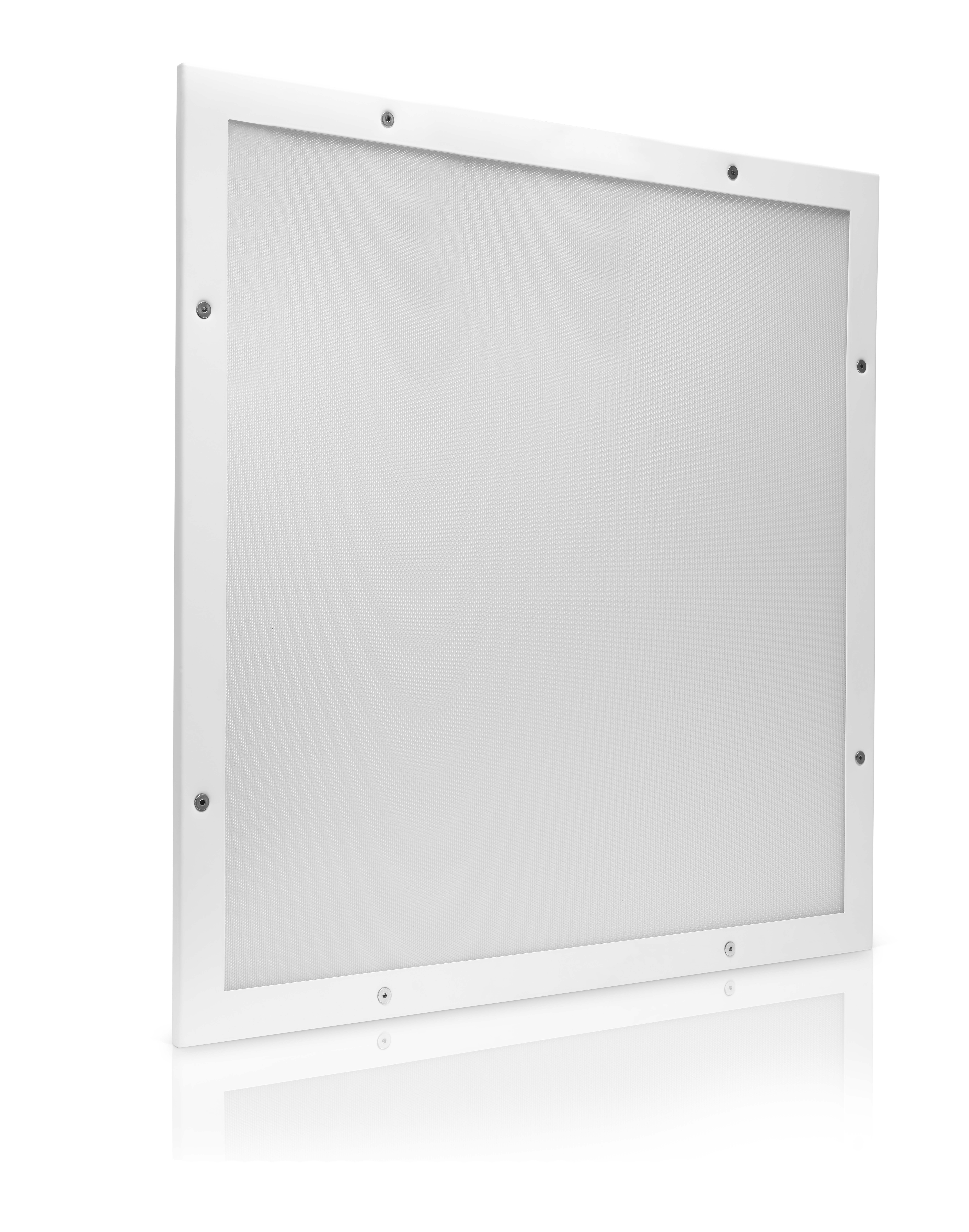

Arial Endure 22W LED CCT Anti-Ligature Panel with 1-10V Dimming

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
70042
Technical Specification
Volts (V)
220/240
Watts (W)
22
Colour Temp (K)
3000/4000/6000
Lumens (lm)
3080
The Arial Endure is an anti-ligature LED Panel which is suitable for commercial, healthcare, education and custodial applications.
Download Specification
Full Specification
Downloads
Name
Arial Endure 22W LED CCT Anti-Ligature Panel with 1-10V Dimming
Commodity Code
9405423990
EAN
5063695004246
Country Of Origin
CN
UNSPSC Code
39111544
Individual Product Weight (kg)
6
Single Carton Weight (KG)
6.42
Single Carton Height (mm)
630
Single Carton Width (mm)
620
Single Carton Depth (mm)
90
Individual Volume
0.035154
Outer Box Height (mm)
645
Outer Box Width (mm)
650
Outer Box Depth (mm)
290
Outer Box Qty
3
Outer Box Volume
0.1215825
Volts (V)
220/240
Watts (W)
22
Colour Temp (K)
3000/4000/6000
Dimming Option
1-10V
Lumens (lm)
3080
Candelas (cd)
1378
Life Hours
100000
Beam Angle
89°
CRI (Ra)
80
Guarantee
10 Years
Frequency (Hz)
50/60
IP Rating
IP65
Height (mm)
598
Width (mm)
598
Depth (mm)
80
Lumens per Watt (lm/W)
140
Product Category
LED Luminaires - Not Plastic
Product Application
Anti-Ligature Panels
Catalogue Page
