Arial Genesis Standard

Arial Genesis 30/36W LED 600x600 TpA Panel - 4000K

Code
70000
Technical Specification
Volts (V)
220/240
Watts (W)
30/36
Colour Temp (K)
4000
Lumens (lm)
3600-4300
The Arial Genesis is a cost-effective LED panel with the added benefit of switchable wattage.
Download Specification
Full Specification
Downloads
Name
Arial Genesis 30/36W LED 600x600 TpA Panel - 4000K
Volts (V)
220/240
Watts (W)
30/36
Colour Temp (K)
4000
Lumens (lm)
3600-4300
Life Hours
50000
Beam Angle
100°
CRI (Ra)
80
Switching Cycles
100000
Frequency (Hz)
50/60
LED Drive Current
750-900mA
Energy Consumption (kWh/1000h)
30/36
IP Rating
IP20
Commodity Code
9405423990
EAN
5013588700007
Country Of Origin
CN
Single Carton Weight (KG)
1.65
Single Carton Height (mm)
620
Single Carton Width (mm)
650
Single Carton Depth (mm)
41
Individual Volume
0.016523
Outer Box Weight (kg)
7.3
Outer Box Height (mm)
640
Outer Box Width (mm)
670
Outer Box Depth (mm)
181
Outer Box Qty
4
Outer Box Volume
0.0776128
UNSPSC Code
39111544
Lumens per Watt (lm/W)
119-120
Product Category
LED Luminaires - Not Plastic
Outer Carton Barcode
7000000000004
Product Application
LED Panel
Guarantee
3 Years
Instructions

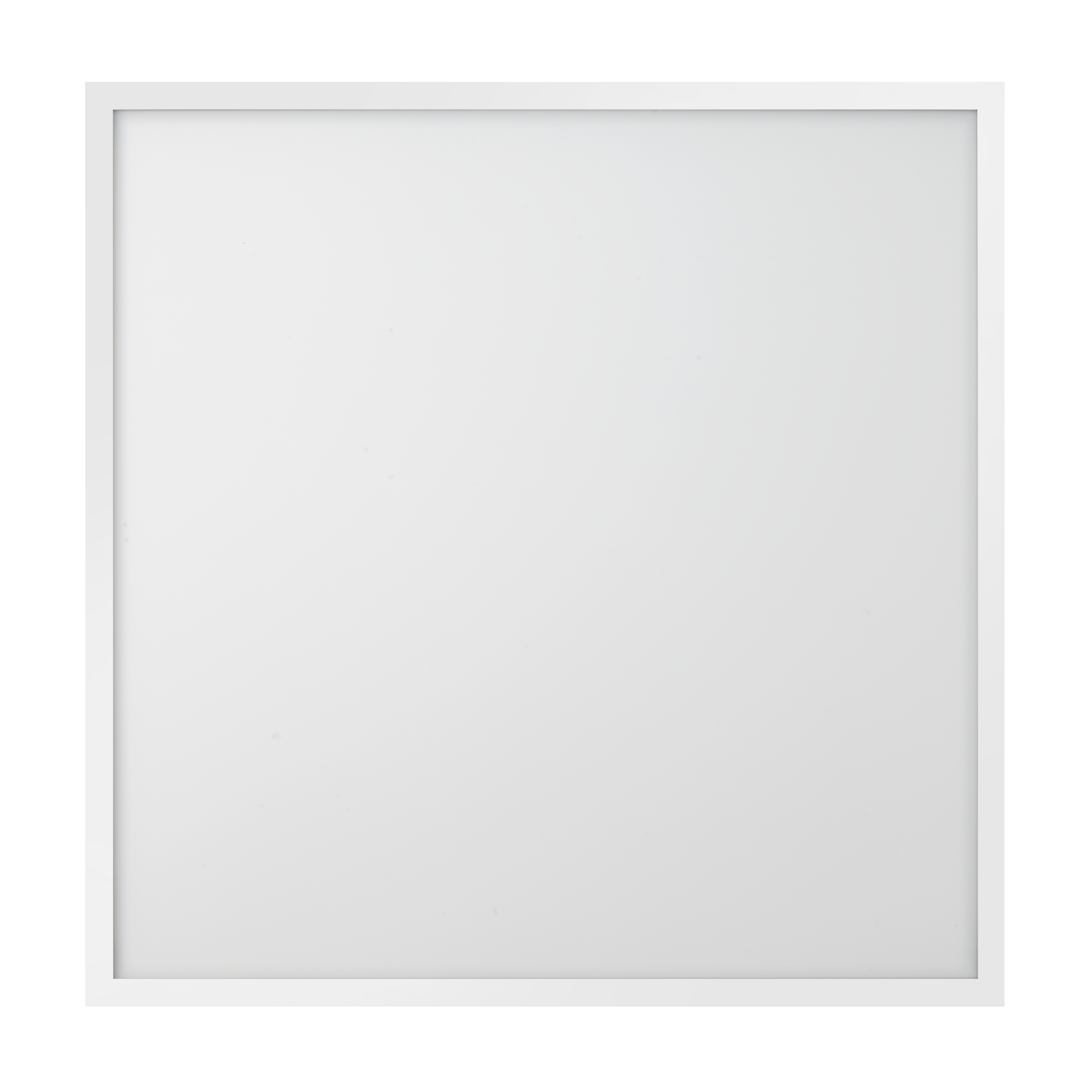

Product Image
