Arial Multi IP65

Arial Multi Backlit 36W LED IP65 600x600 White Panel - Casambi Dimming Enabled - 4000K

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
82176
Technical Specification
Volts (V)
220/240
The IP65 version of our Arial Multi Backlit LED Panel is an ideal product for areas that may contain moisture such as changing rooms, locker rooms & commercial kitchen environments.
Download Specification
Full Specification
Name
Arial Multi Backlit 36W LED IP65 600x600 White Panel - Casambi Dimming Enabled - 4000K
EAN
5063695002341
Volts (V)
220/240
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
36
IP Rating
IP65
Height (mm)
595
Width (mm)
595
Depth (mm)
25
Lumens per Watt (lm/W)
149
Unified Glare Rating
<22
Primary Material
Steel
Operating Temperature
0°C-35°C
Commodity Code
9405423990
Individual Product Weight (kg)
1.46
Outer Box Weight (kg)
12.4
Outer Box Height (mm)
685
Outer Box Width (mm)
640
Outer Box Depth (mm)
250
Outer Box Qty
4
Outer Box Volume
0.1096
Wattage (W)
36
Colour Temperature (K)
4000
Minimum Order Quantity
1
Single Box Weight (kg)
2
Single box Height (mm)
670
Single box Width (mm)
627
Single Box Depth (mm)
36
Single Box Volume
0.01512324
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
5347
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes

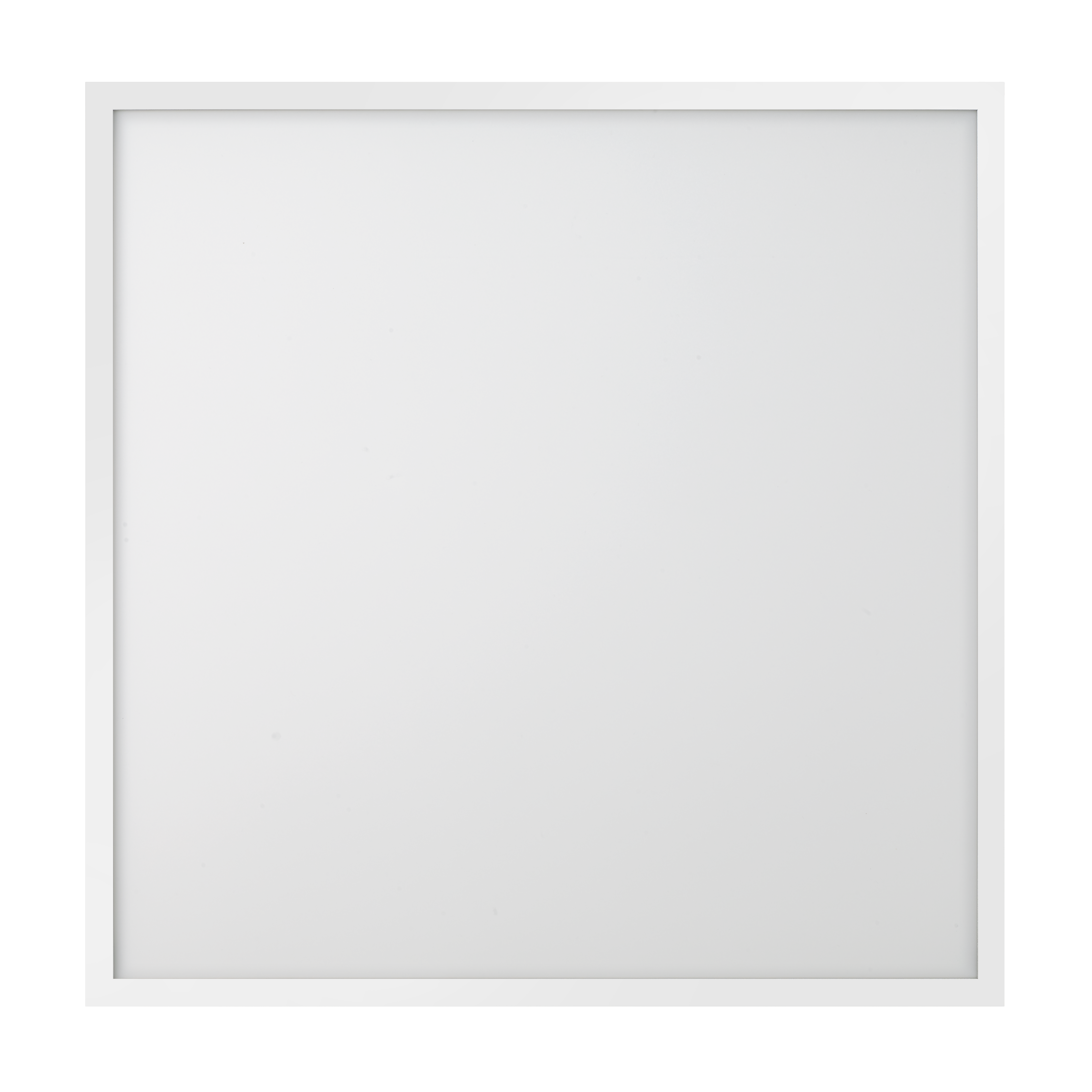

Product Image
